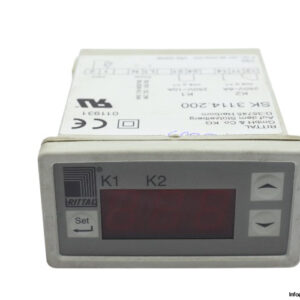

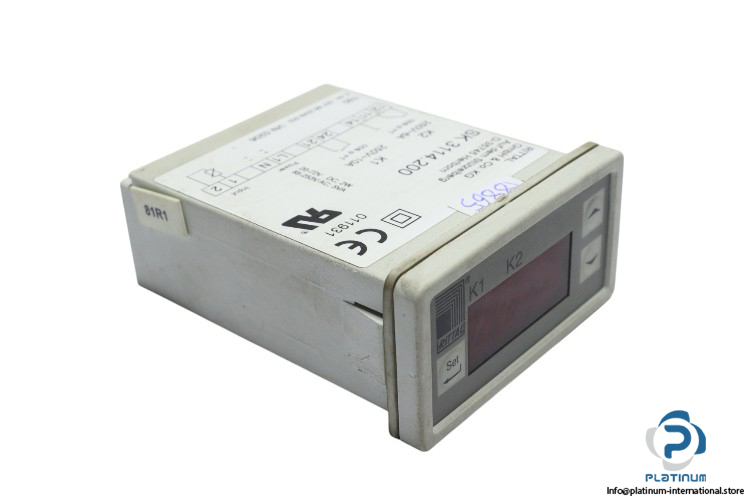

Rittal SK3114.200 Digital Enclosure Temperature Display and Thermostat

The Rittal SK3114.200 is a high-precision digital enclosure temperature display and thermostat, designed for monitoring and controlling internal temperatures in industrial enclosures. With a three-digit 7-segment display, wide voltage compatibility, and durable IP54 protection, this unit ensures reliable operation in various environments.

• Manufacturer: Rittal
• Type: Digital Enclosure Internal Temperature Display and Thermostat
• Model: SK3114.200

Technical Information

• Rated Operating Voltage: Single Phase 85 to 253 V AC, 50/60 Hz, 20 to 72 V DC
• Power Consumption: 5 VA / 2 W

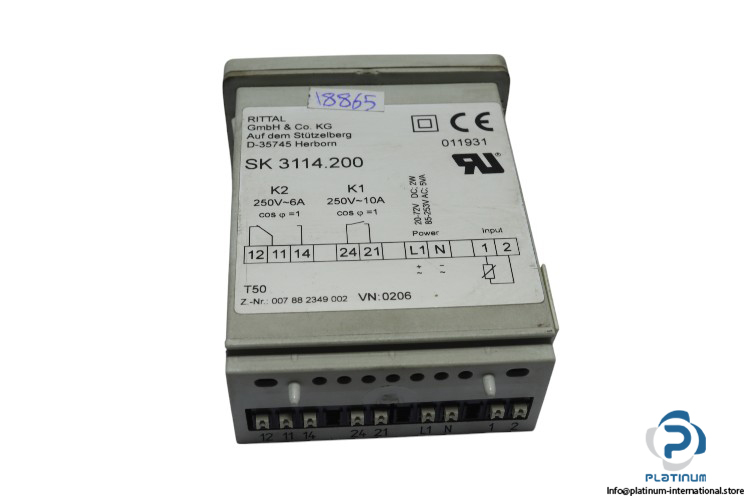

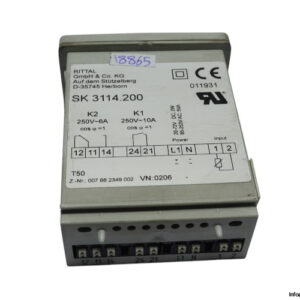

• Contact Configuration:
• 1 Changeover Contact (250 V AC, 6 A)
• 1 Normally Open (250 V AC, 10 A)

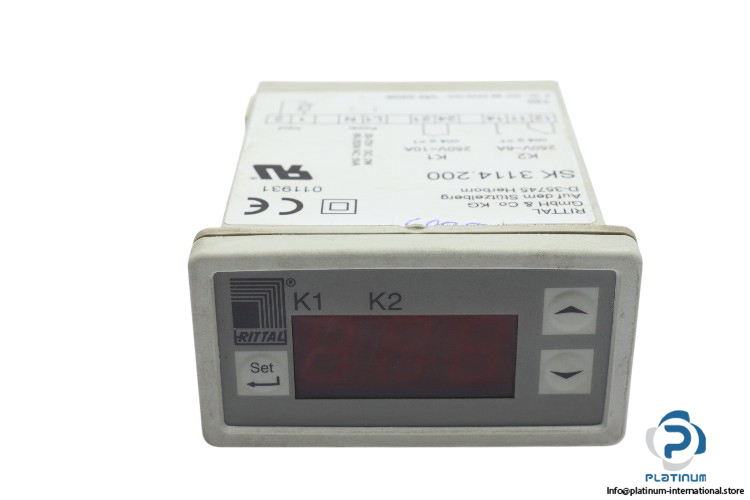

• Display: Three-digit, 7-segment display
• Protection Class: IP54
• Operating Temperature: 0 to +55°C
