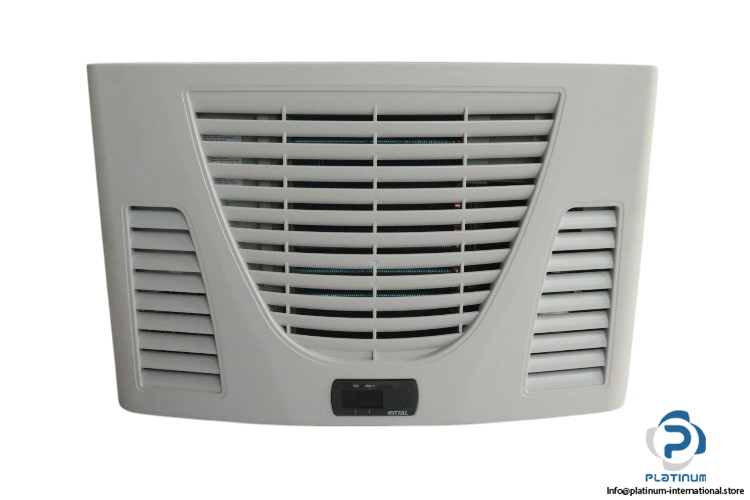

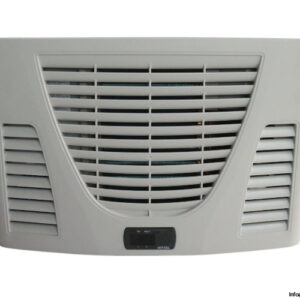

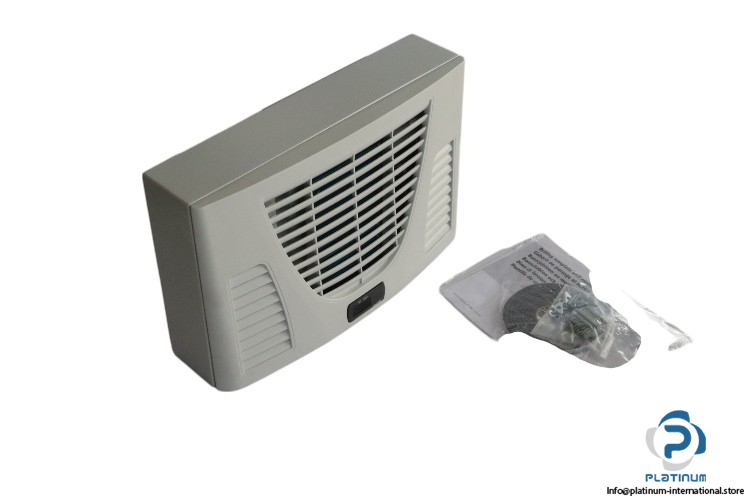

Rittal Cooling Unit SK 3302300
The Rittal Cooling Unit SK 3302300 is an energy-efficient Blue e wall-mounted cooling unit designed for high-performance cooling applications. With cooling output categories ranging from 300 W to 4000 W, it comes with an integrated electrical condensate evaporator (from 1000 W). The unit can be connected to an IoT interface via the Blue e IoT adaptor for units with a cooling output of 500 W and above, using the e-Comfort controller. This unit is ideal for various industrial and commercial applications, ensuring optimal temperature regulation and protection for equipment.
- Rated Operating Voltage: 230 V, 1~, 50/60 Hz
- Rated Current Max: 1.6 A at 50 Hz, 1.7 A at 60 Hz
- Air Throughput (Unimpeded Air Flow): 310 m³/h (External & Internal Circuit)
- Pre-Fuse: Miniature Circuit-Breaker/Fuse: 10 A
- Design: Wall-mounted Horizontal
- Degree of Protection: External Circuit: IP 34, Internal Circuit: IP 54
- Material: Sheet Steel
- Operating Pressure: 25 bar
- Operating Temperature Range: 10 to 53 °C
- Dimensions: 340 x 525 x 153 mm
