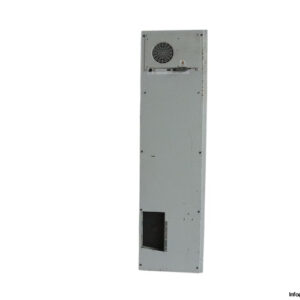

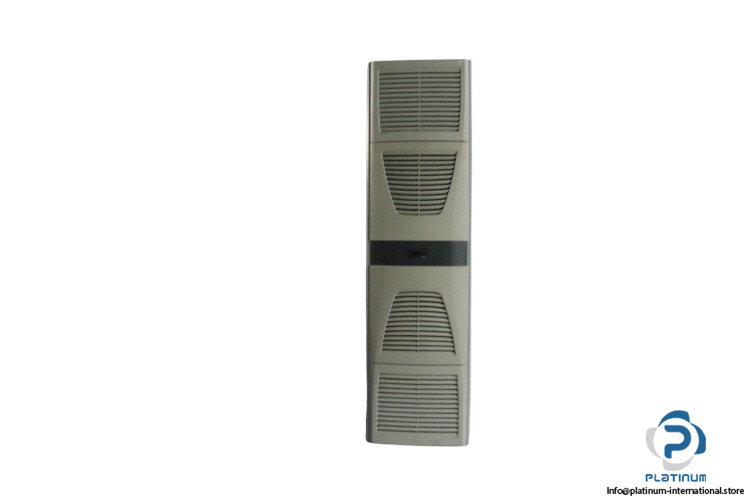

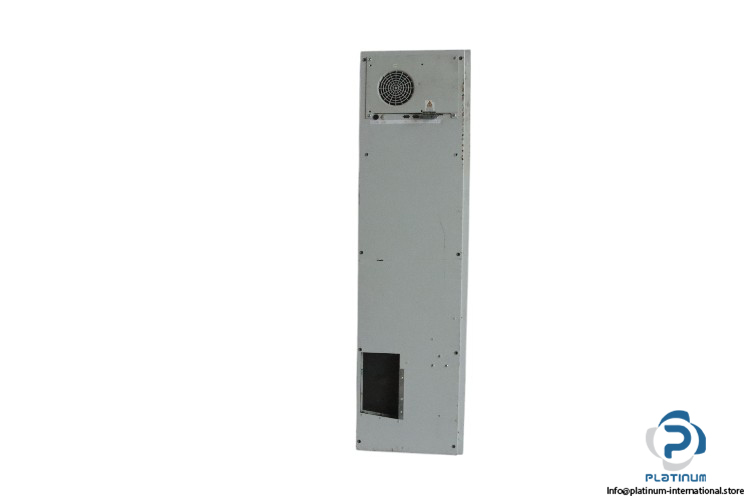

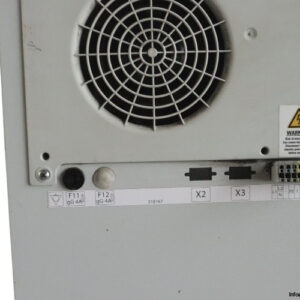

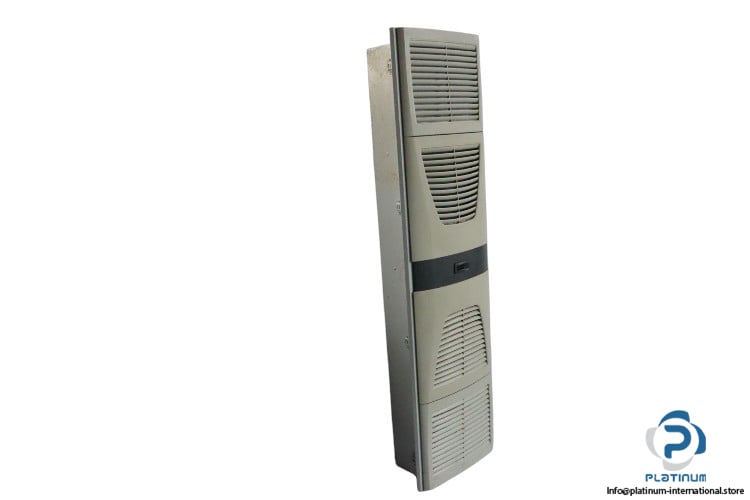

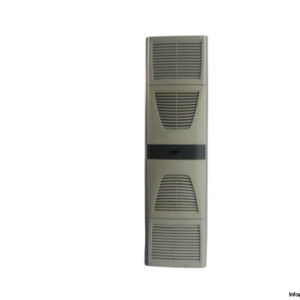

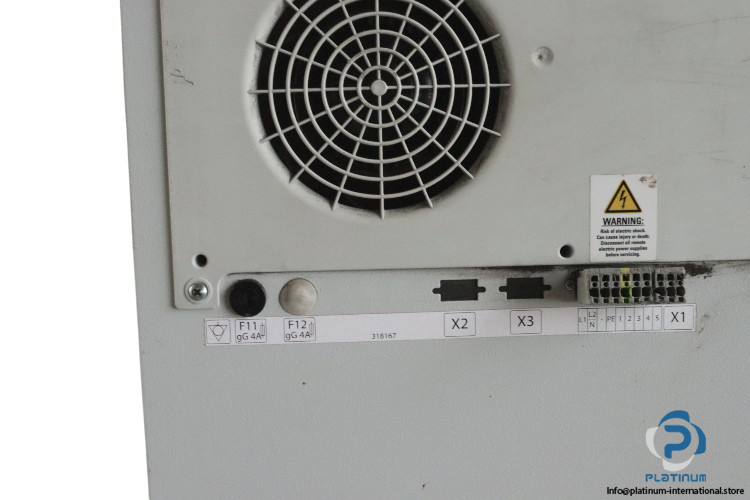

Rittal SK3366100 TopTherm Wall-Mounted Cooling Unit with Basic Controller
The Rittal SK3366100 TopTherm Wall-Mounted Cooling Unit with Basic Controller is an advanced cooling solution designed to efficiently regulate the temperature in industrial environments. With a nominal refrigeration capacity of 1045 W at 50 Hz and 1175 W at 60 Hz, this unit offers exceptional cooling performance. The wall-mounted design saves space while offering an efficient cooling capacity of up to 1500 W at L35 L35 conditions. The unit is equipped with a basic controller and operates with a start-up current of 22 A at 50 Hz, making it suitable for environments requiring powerful and reliable cooling solutions.
- Manufacturer: Rittal
- Type: TopTherm Wall-Mounted Cooling Unit with Basic Controller
- Model: SK3366100
- Series: SK

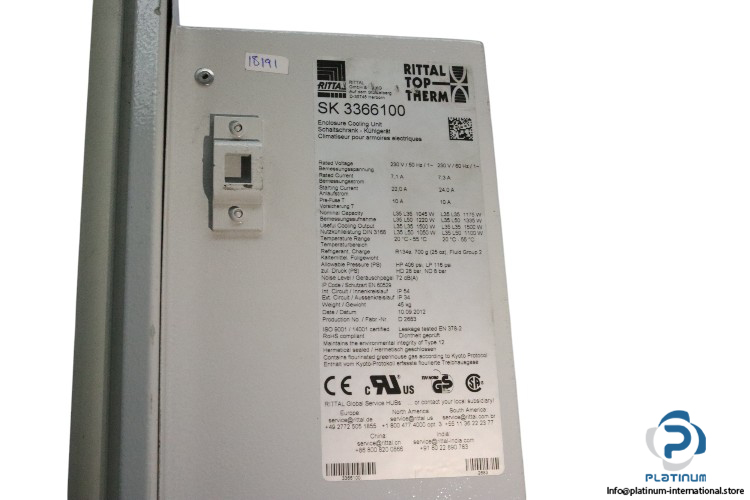

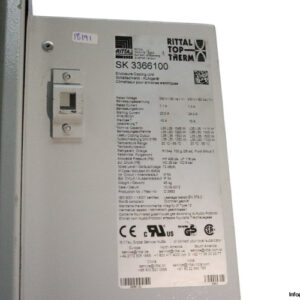

Technical Information
- Voltage: 230 V-AC, 1-phase
- Frequency: 50/60 Hz
- Rated Current Max.:
- At 50 Hz: 7.1 A
- At 60 Hz: 7.3 A
- Start-up Current Max.:
- At 50 Hz: 22 A
- At 60 Hz: 24 A
- Nominal Refrigeration Capacity:
- L35 L35: 1045 W at 50 Hz, 1175 W at 60 Hz
- L35 L50: 1220 W at 50 Hz, 1335 W at 60 Hz
- Useful Cooling Output:
- L35 L35: 1500 W at 50 Hz, 1500 W at 60 Hz
- L35 L50: 1050 W at 50 Hz, 1100 W at 60 Hz
- Design: Wall-mounted
- Permissible Operating Pressure (p.max.): 28/8 bar
- Noise Level: 72 dB(A)
- Pre-fuse T: 10 A
- Air Throughput (Unimpeded Air Flow):
- External Circuit: 910 m³/h
- Internal Circuit: 860 m³/h
- Material: Sheet Steel
- Temperature Range: 20 to 55°C
- Protection Degree: External Circuit IP34, Internal Circuit IP54
- Dimensions: 435 x 1590 x 205 mm
The Rittal SK3366100 TopTherm Wall-Mounted Cooling Unit with Basic Controller ensures reliable and energy-efficient cooling for electrical enclosures, providing a robust and cost-effective solution for temperature control in industrial environments.
