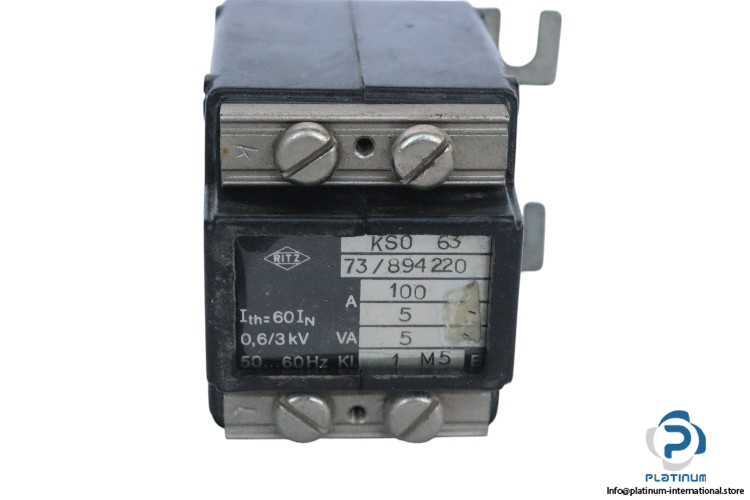

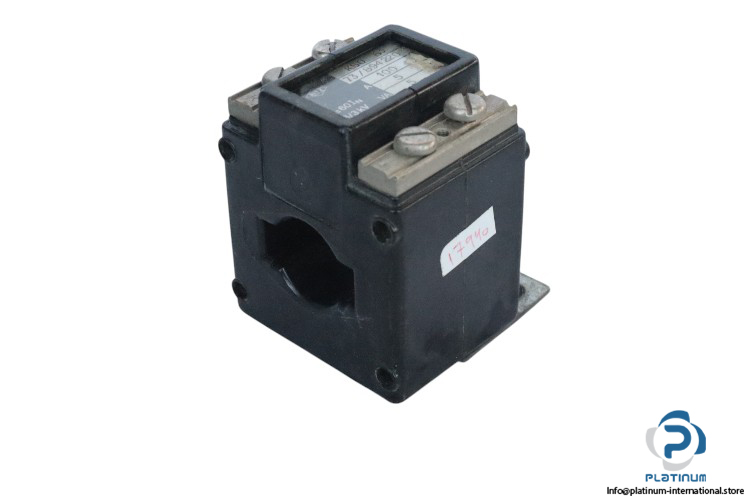

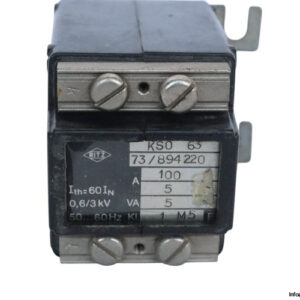

Ritz Current Transformer KSO63
Ritz Current Transformer KSO63 is designed for precise current measurement in industrial applications. This transformer provides reliable performance and is built to handle demanding environments. Below are the key technical specifications:
- Manufacturer: Ritz
- Type: Current Transformer
- Model: KSO63
- Part No.: 73/894220
Technical Data:
- Primary Current: 100 A
- Secondary Current: 5 A
- Related Load: 5 VA
- Thermal Current (Ith): 60 x Nominal Current
- Test Voltage: 0.6/3 kV
- Ambient Temperature: -5 to +40°C
- Protection:
- Housing: IP50
- Terminals: IP20
- Secondary Terminals: Plus-minus screws M5 (MA=3.5 Nm)
