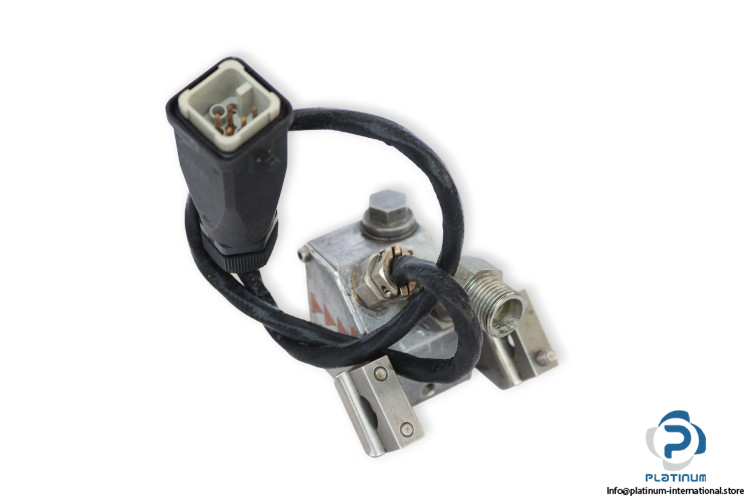

Manufacturer: ROBATECH
Type: Hot Melt Glue Gun Applicator Head
Model: SX1N
Part No: 129988

Series: SX
Temperature Range: 20 … 200 °C
Adhesive Pressure Max. 75 Bar
Adhesive: Thermoplastic Adhesives
Adhesive Viscosity: 500 … 5000 mPas
Supply Voltage: 230 V AC
Frequency: 50 … 60 Hz
Power: 125 W
Solenoid Valve Ratings: 24 V DC, 8 W
Switching Frequency: 120 Hz
Nozzles: 296 / 294
Attachment: for Shaft Diameter 12 mm, Flat Steel or M5 Thread
Noise Level: 78 … 83 dB(A)
Protection Class: IP65
Operating Temperature: 0 … 60 °C
Jetting Element Width: 18 mm
