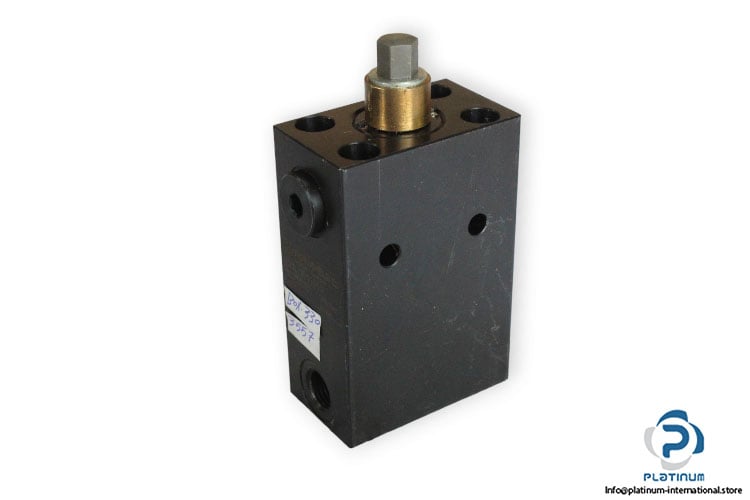

ROEMHELD BLOCK CYLINDER 1511065
This robust Roemheld block cylinder is designed for high-force clamping in industrial automation applications, offering compact design and long-lasting performance.
Manufacturer: Roemheld
Type: Block Cylinder
Art. No.: 1511065
Ref. No.: 883531
Technical Information
- Functioning: Single Acting Without Spring Return
- Max. Working Pressure: 500 bar
- Piston Diameter: 16 mm
- Rod Diameter: 10 mm
- Stroke: 50 mm
- Piston Rod End: Internal Thread M6
- Max. Force to Push: 10 kN
- Connection: G ¼
- Material of the Body: Steel
- Operating Temperature: -30 to 100°C
