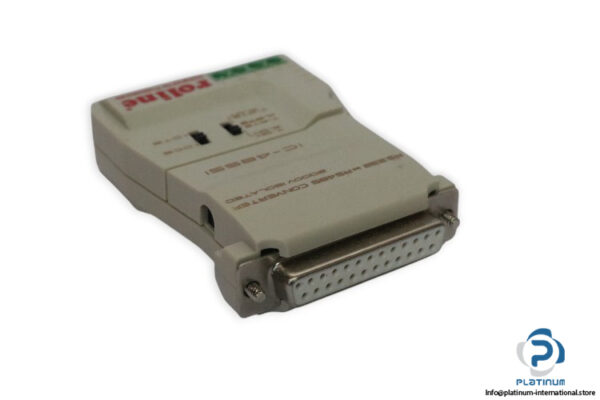

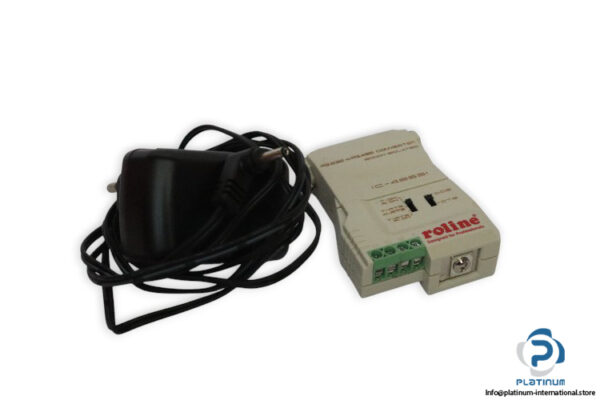

ROLINE (SECOMP) RS232-RS485 INTERFACE CONVERTER
The Roline (SECOMP) RS232-RS485 Interface Converter is designed for reliable serial communication between RS232 and RS485 devices. Built with durable housing and efficient power management, it ensures stable data transmission for industrial and commercial applications. Delivered with a JODEWAY AC Adaptor for consistent power supply.
Manufacturer: Roline (SECOMP)
Type: Interface Converter
Model: RS232-RS485

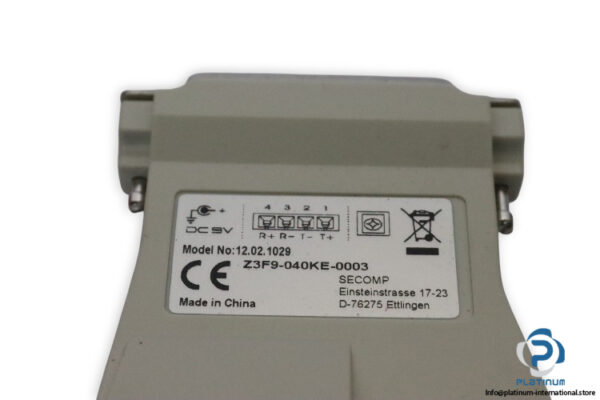

Part No.: 12.02.1029
Code: Z3F9-040KE-0003
Technical Information
- Input Voltage: 230 V
- Frequency: 50/60 Hz
- Input Current: 0.2 A
- Output Voltage: 9 V
- Output Current: 300 mA
- Power Consumption: 1.8 W
- Connectors: Four Terminal Block
- Operating Temperature: 0 to 50°C
- Housing Material: Plastic
- Dimensions (L x W x H): 5.40 x 7.45 x 1.85 cm

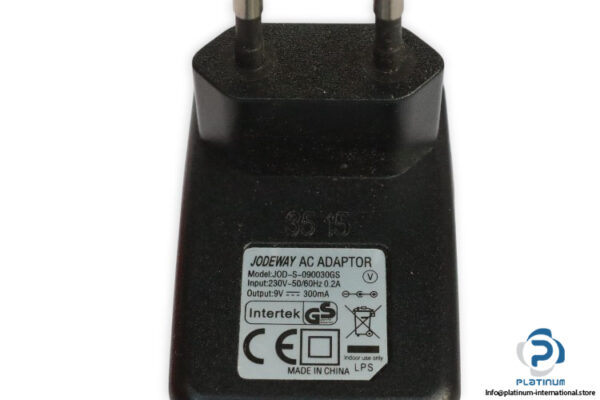

Attached With
Manufacturer: JODEWAY Intertek
Type: AC Adaptor
Model: JOD-S-090030GS
- Input: 230 V @ 50/60 Hz @ 0.2 A
- Output: 9 V / 300 mA
