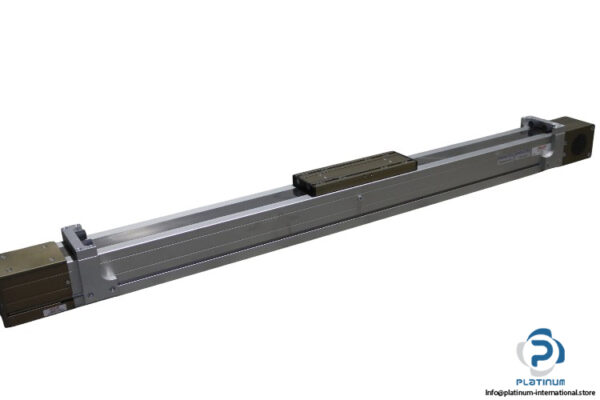

Rollon MCR105LI Linear Actuator

The Rollon MCR105LI Linear Actuator is a highly efficient and robust actuator designed for precise movement. With a compact closed section and a belt-driven system, it is ideal for high-performance applications requiring smooth motion and high load capacities.

Manufacturer: Rollon

Model: MCR105LI

Type: Linear Actuator

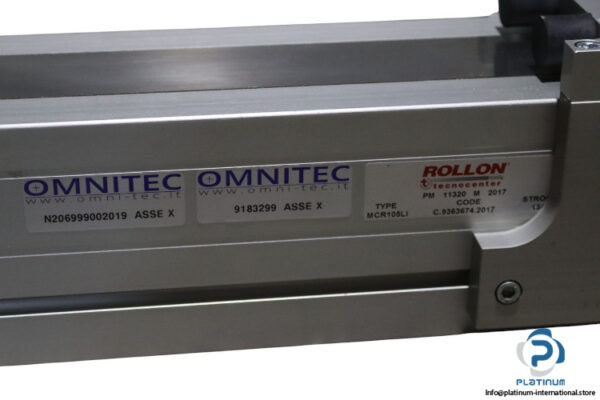

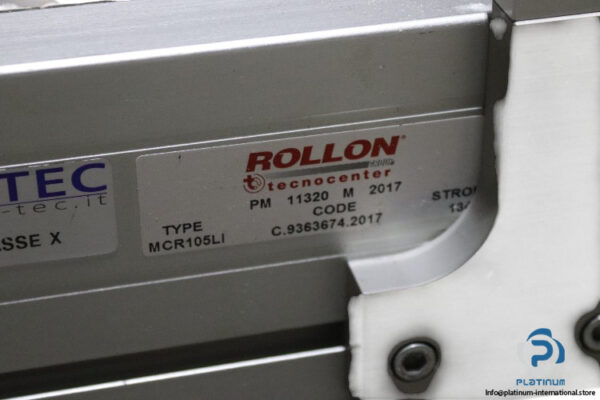

Part No.: C.9363674

Assembly (X) Part No.: 9183299

Technical Information:

• Size: 105
• Series: M, compact closed section
• Handling: C, with belt
• Total Length: 166.5 cm
• Stroke: 1348 mm
• Pulley Diameter: 92.31 mm
• Carriage Displacement per Pulley Turn: 290 mm

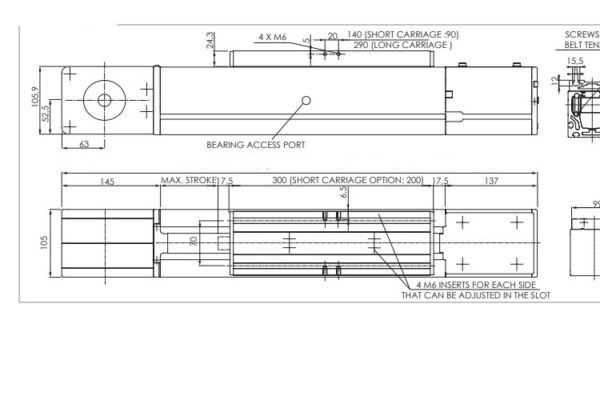

• Pole Holder Dimension: 105.9 x 145 mm
• Type of Belt: 40 AT 10
• Belt Width: 40 mm
• Maximum Speed: 5 m/s
• Maximum Acceleration: 20 m/s²
• Maximum Simultaneous Stresses:
• Mx: 185 Nm
• My, Mz: 580, 220 Nm
• Load Capacities:
• Fx: 3300 N
• Fy, Fz: 1500, 2950 N
