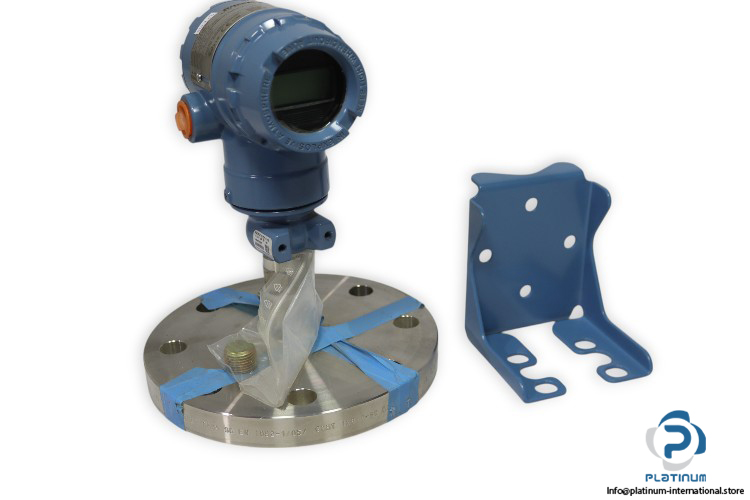

ROSEMOUNT 2051TG1A2B22AWR3S1I1M5D4P1Q4Q8 PRESSURE TRANSMITTER

This advanced pressure transmitter by Rosemount is designed for high-precision measurement in demanding environments. Featuring a wide calibration range, durable stainless-steel flange mounting, and a robust enclosure with IP66/68 rating, it supports industrial compliance across ASTM, EN, and GOST standards. Ideal for critical monitoring in hazardous and industrial systems.

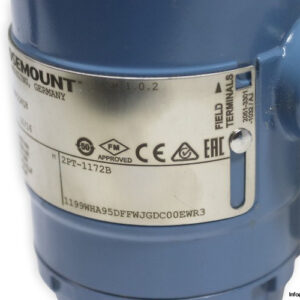

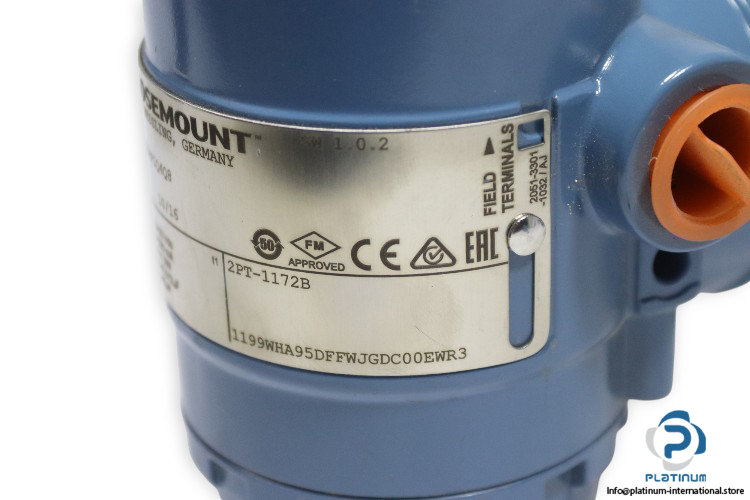

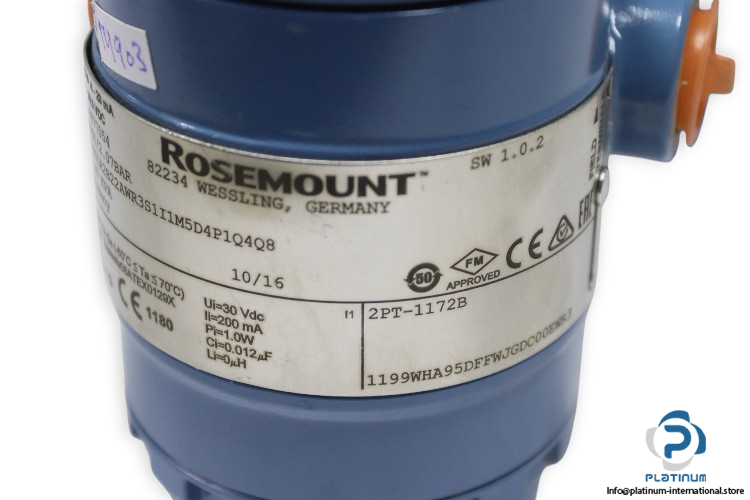

Manufacturer: Rosemount
Type: Pressure Transmitter

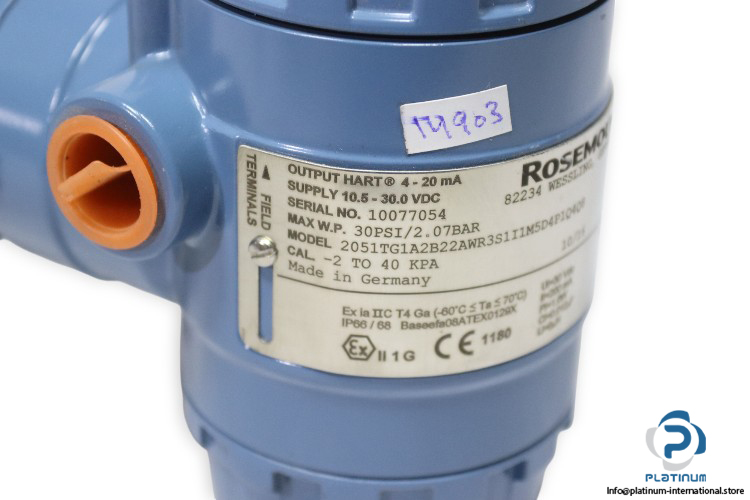

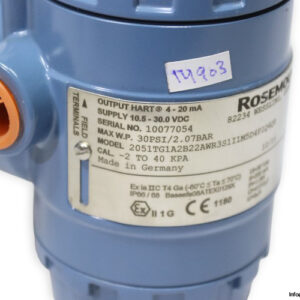

Model: 2051TG1A2B22AWR3S1I1M5D4P1Q4Q8
Serial No.: 10077054

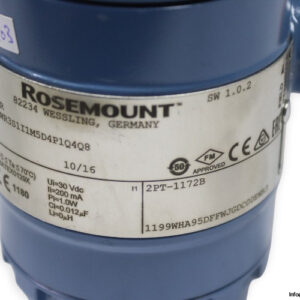

Part No.: 1199WHA95DFFWJGDC00EWR3
Code: 2PT-1172B/2051-3301-1032/AJ

Technical Information

• Connection: ½ inch
• Max Working Pressure: 30 PSI / 2.07 BAR
• Calibration Range: -2 to 40 KPA
• Current Output: 4 to 20 mA
• Operating Voltage: 10.5 to 30 V DC
• Temperature Range: -60 to 70 °C
• Ingress Protection: IP66 / IP68
• Voltage Rating: 30 V DC
• Rated Current: 200 mA
• Power Consumption: 1 W
• Internal Capacitance (Ci): 0.012 μF
• Internal Inductance (Li): 0 mH

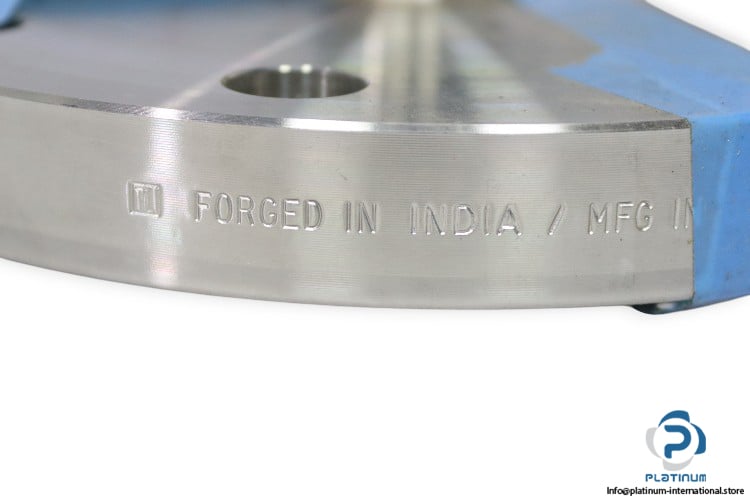

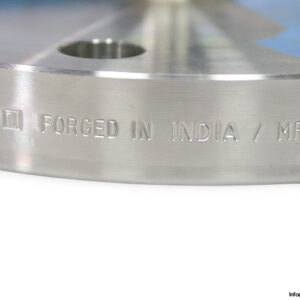

Mounting Flange

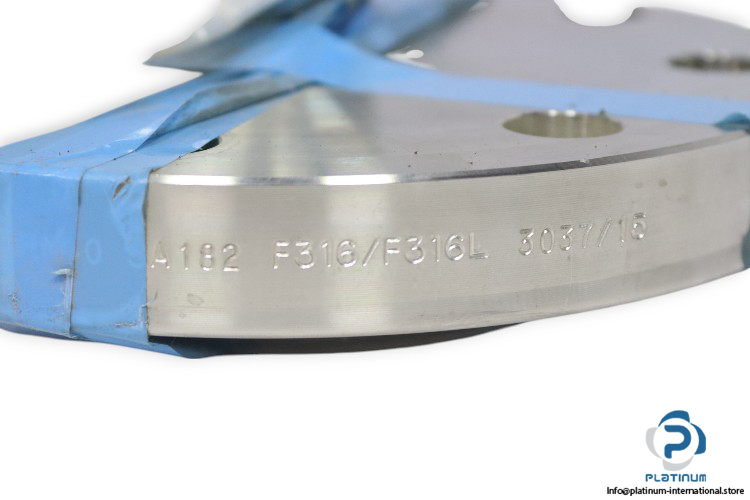

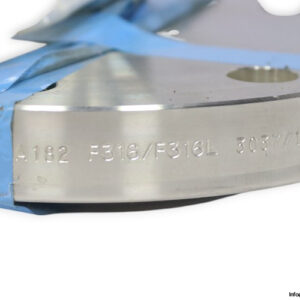

• Material: ASTM A182 F316/F316L Stainless Steel
• Material Grade: 316 / 316L

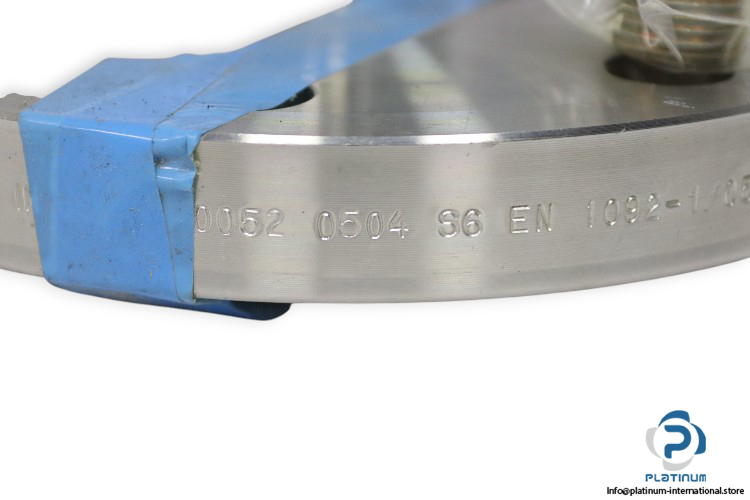

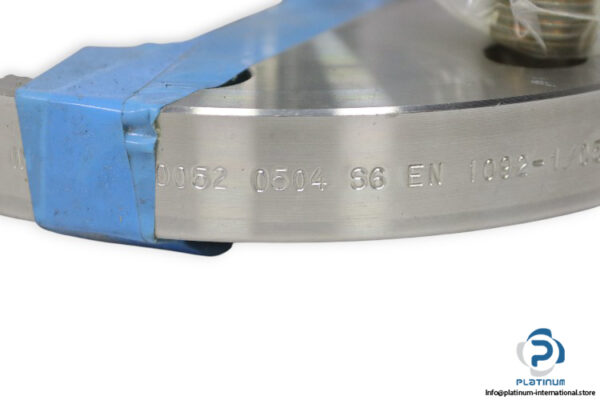

• Standards: ASTM, EN, GOST

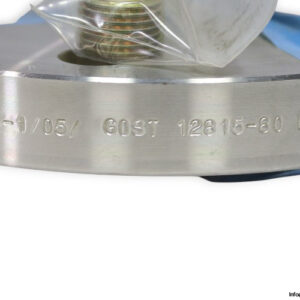

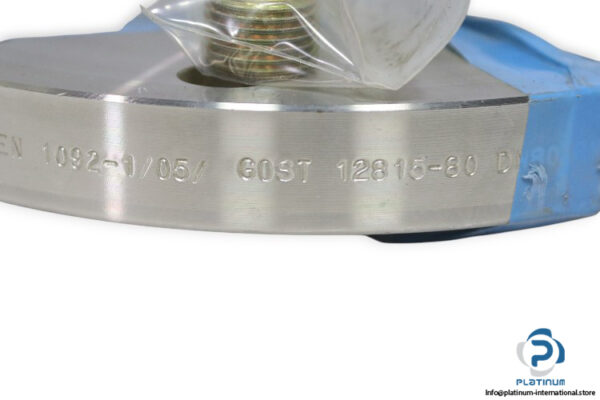

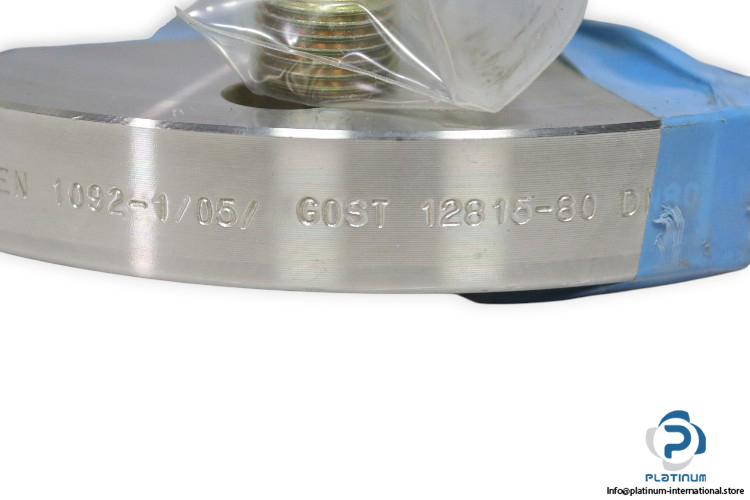

• Flange Compliance: GOST 12815-80
