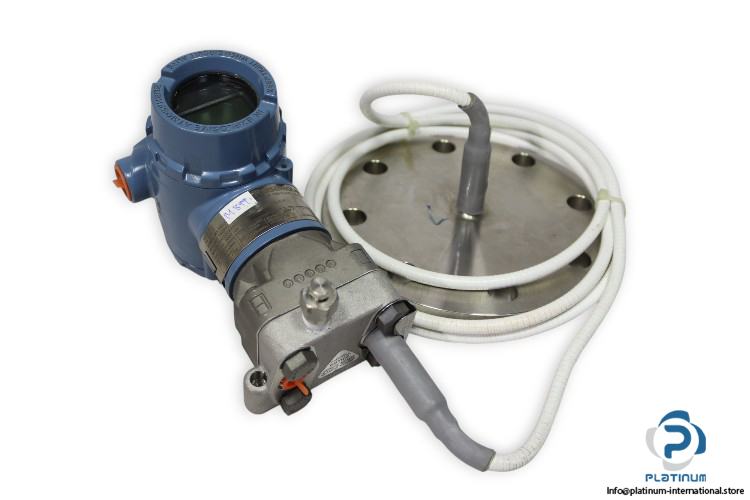

ROSEMOUNT 3051CD2A22A2BS2WR3M5D4P1P3Q4Q8 DIFFERENTIAL PRESSURE TRANSMITTER

The Rosemount 3051CD series delivers high-performance differential pressure measurement with enhanced accuracy and stability. Built for demanding environments, it features advanced digital communication via PROFIBUS-PA, a wide calibration range, and durable construction materials such as 316L SST and aluminum housing. Ideal for applications requiring precision in pressure monitoring and process control.

Manufacturer: Rosemount
Type: Differential Pressure Transmitter
Model: 3051CD2A22A2BS2WR3M5D4P1P3Q4Q8

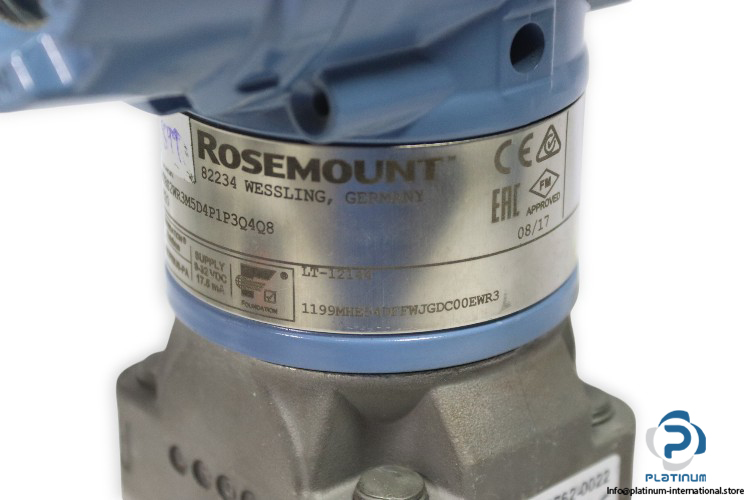

Part No.: 1199MHE5ADEFWJGDC00EWR3
Code: PROFIBUS-PA

Technical Information

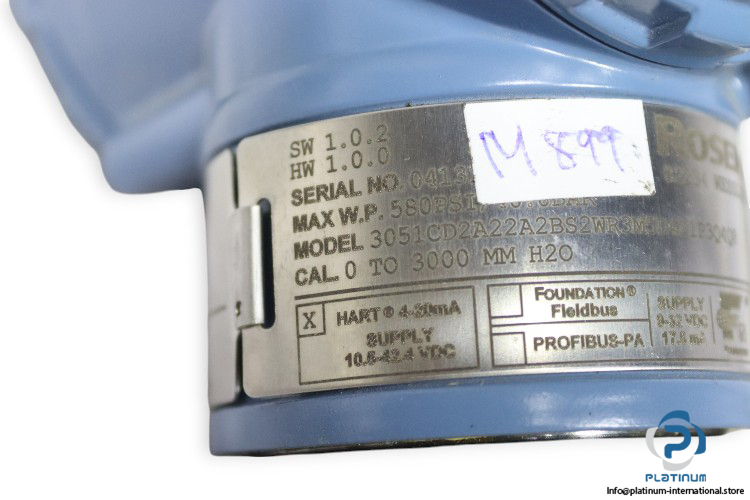

• Max Working Pressure: 580 PSI
• Calibration Range: 0 to 3000 mm H‚‚O
• Current: 4 to 20 mA / 17.5 mA
• Voltage: 10.5 to 42.4 V DC / 9 to 32 V DC
• Software Version: SW 1.0.2
• Hardware Version: HW 1.0.0
• Materials of Construction: Coplanar / SST
• Isolating Diaphragm: 316L SST
• O-ring: Glass-filled PTFE
• Sensor Fill Fluid: Inert (differential and gage only)
• Housing Material: Aluminum

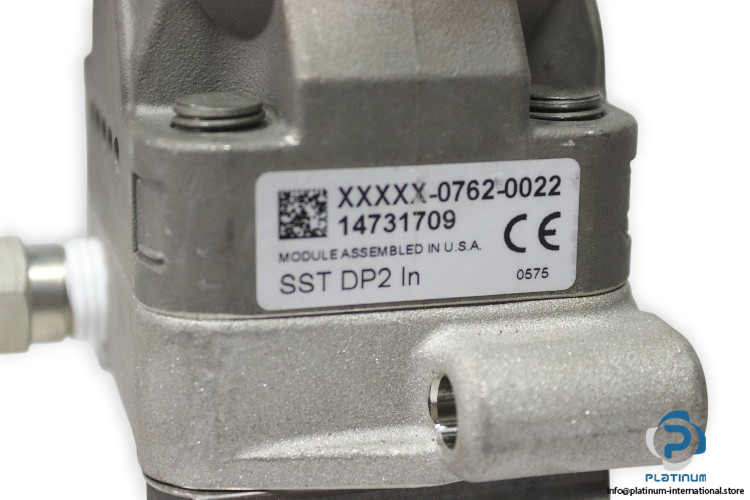

• Attached Module: SST DP2 IN PRESSURE TRANSMITTER MODULE
• Module Code: XXXXX-0762-0022/0575
• Serial Number: 14731709
