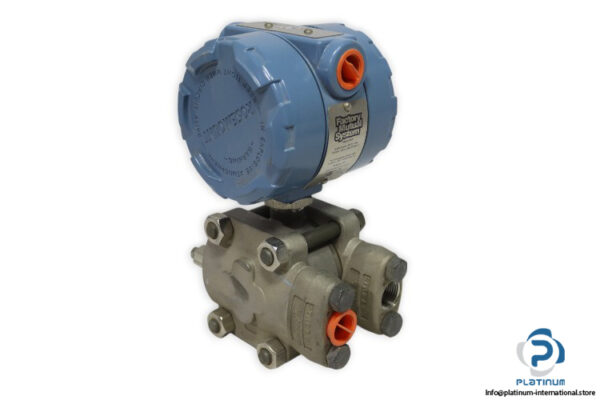

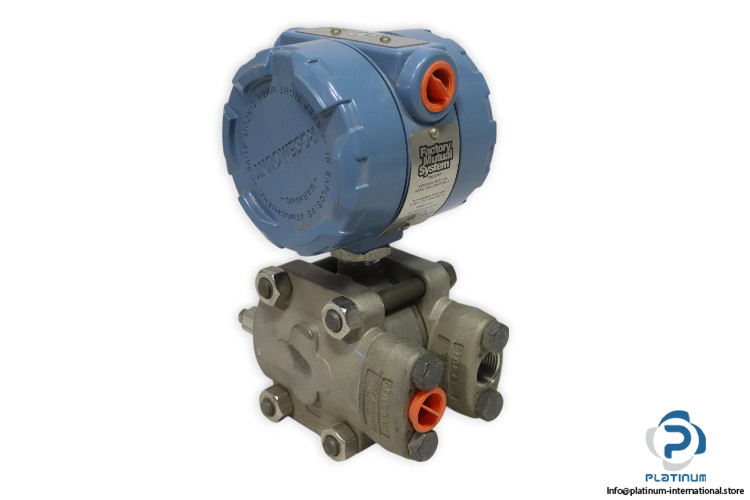

ROSEMOUNT DP3 S22 L4 PRESSURE TRANSMITTER

The Rosemount DP3 S22 L4 is a highly accurate differential pressure transmitter designed for advanced industrial process control. Built for hazardous environments, it features FM-approved explosion-proof certification and robust stainless steel construction, making it ideal for oil, gas, and chemical industries.

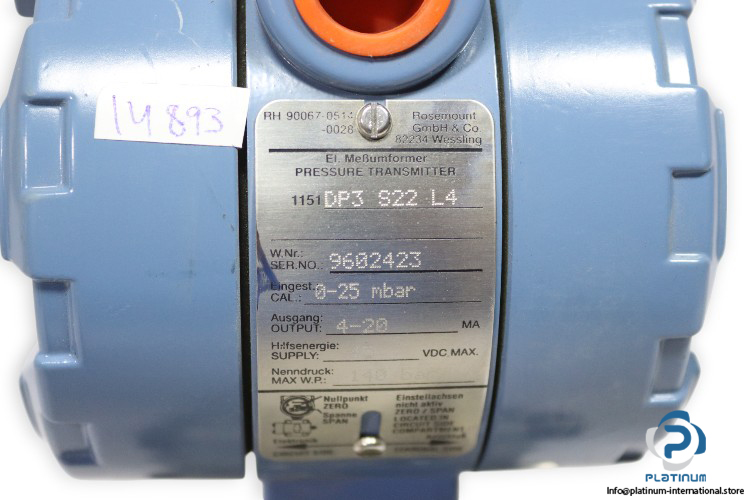

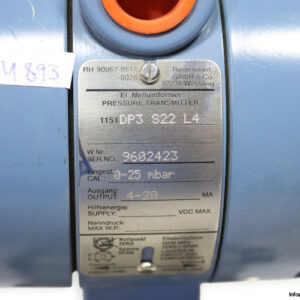

Manufacturer: Rosemount
Type: Pressure Transmitter
Model: DP3 S22 L4

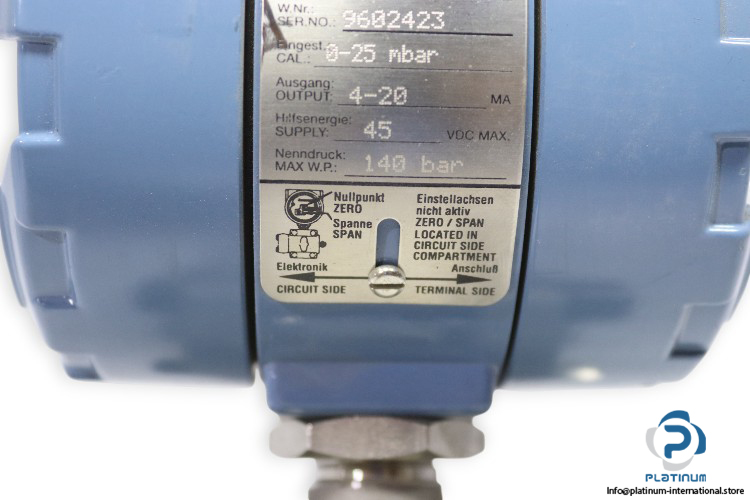

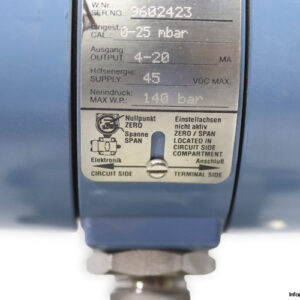

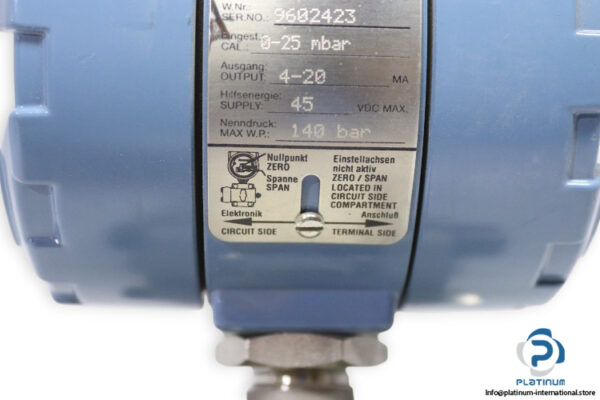

Serial No.: 9602423

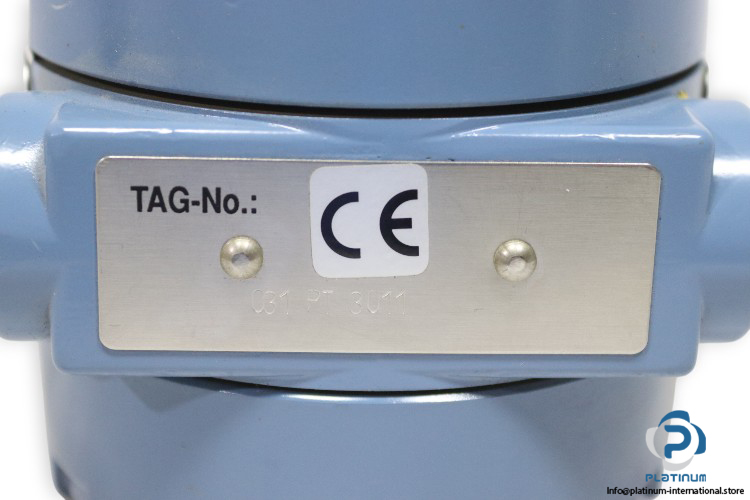

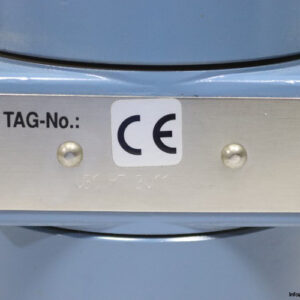

Tag No.: 031 PT 3011

Technical Information

• Connection: ½ inch and 1/8 inch
• Pressure Range: 0 to 25 mbar
• Output Current: 4 to 20 mA
• Voltage: 45 V DC Max.
• Max Working Pressure: 140 bar

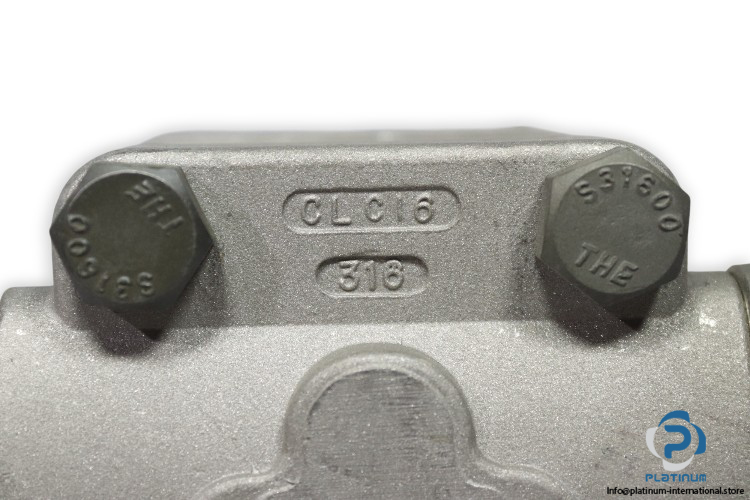

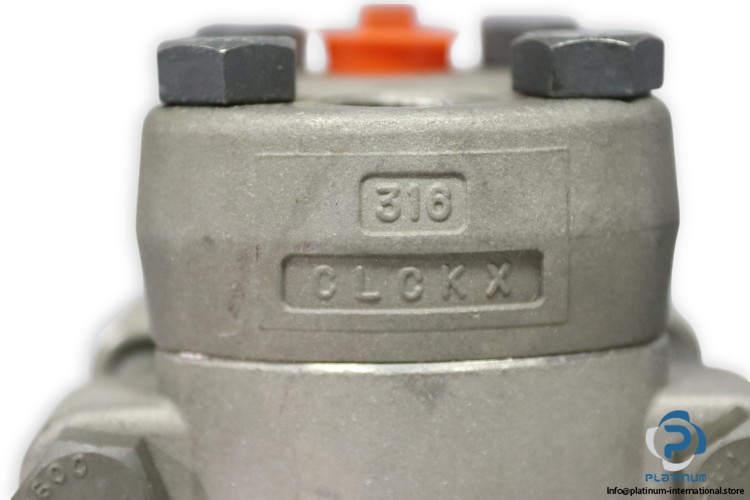

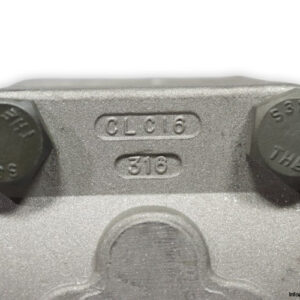

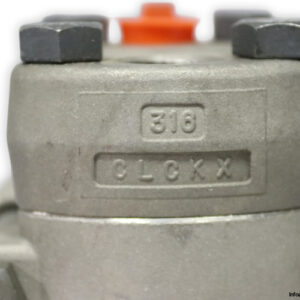

• Material: CLC16 CLCXX (316) Stainless Steel
• Ambient Temp. Limits: -50¯°C to +85¯°C

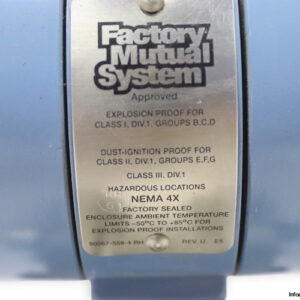

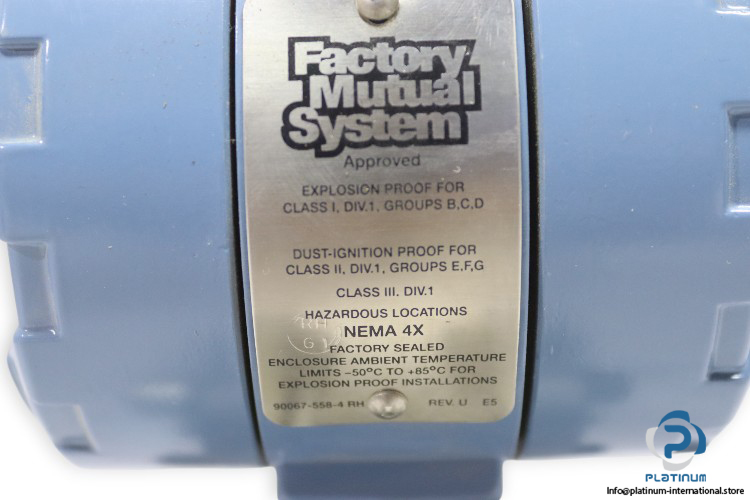

• Explosion Proof Certified By: Factory Mutual (FM)
• Explosion Proof For:
  • Class I, Div 1, Groups B, C, D
  • Class II, Div 1, Groups E, F, G
  • Class III, Div 1

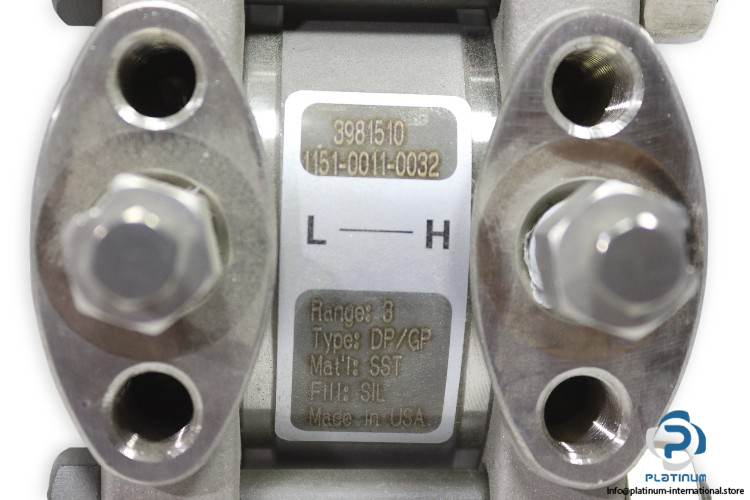

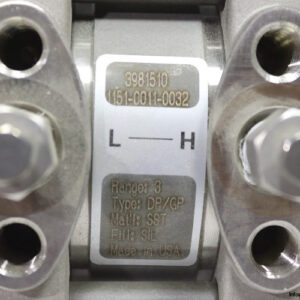

• Attached Sensor Module: 3981510 1151-0011-0032
• Range: 3
• Type: DP/GP
• Fill: SIL
• Sensor Material: SST
