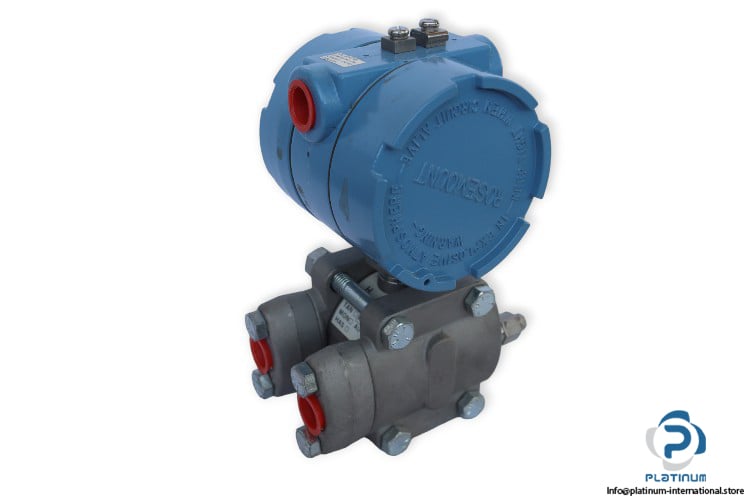

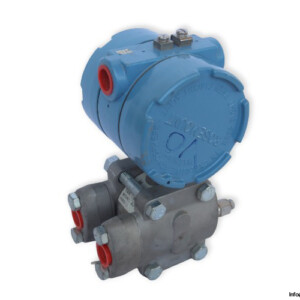

Rosemount E1151DP3E22 Differential Pressure Transmitter

The Rosemount E1151DP3E22 Differential Pressure Transmitter is engineered for accurate and stable pressure measurements in industrial applications. With a high-pressure limit of 2000 PSI and a wide calibration range, it offers dependable performance even in demanding environments.

Manufacturer: ROSEMOUNT

Type: Differential Pressure Transmitter

Model: E1151DP3E22

Technical Information:

• Measure Pressure Limit: 2000 PSI
• CAL. Range: 0 / 600 MMWG
• Supply Voltage: 12 / 45 V DC
• Output Current: 4 / 20 mA, Linear with Input
• Fill Fluid: Silicon
• Material:
  • Housing: Aluminum
  • Isolating Diaphragm: 316L SST
  • Flanges/Adapters: 316 SST
  • O-Ring/Bolting: 316L SST
• Protection Class: IP66
• Temperature: -40 / 85°C
• Dimensions: 229 x 114 x 114 mm

Attachment:

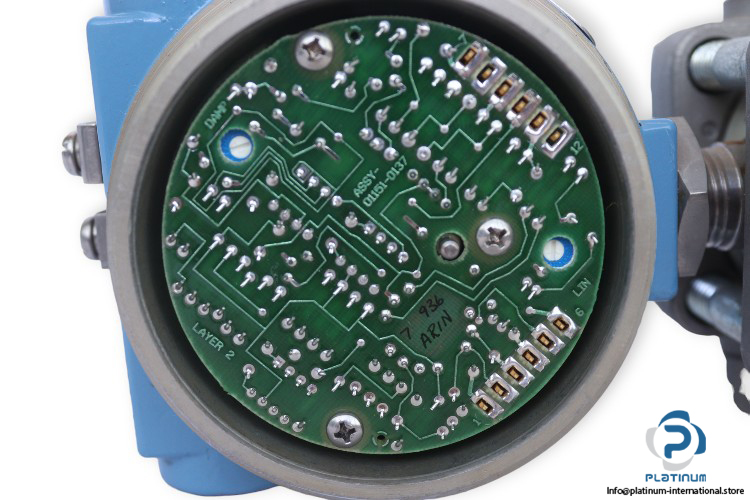

ROSEMOUNT ASSY-01151-0137 Transmitter Circuit Board

Manufacturer: ROSEMOUNT

Type: Transmitter Circuit Board

Model: ASSY011510137
