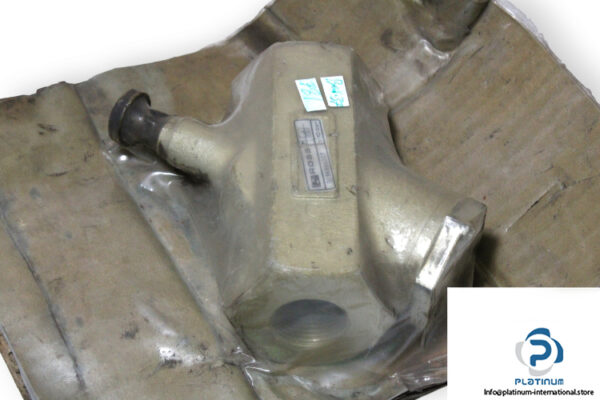

Manufacturer: ROSS
Type: Flow Control Valve

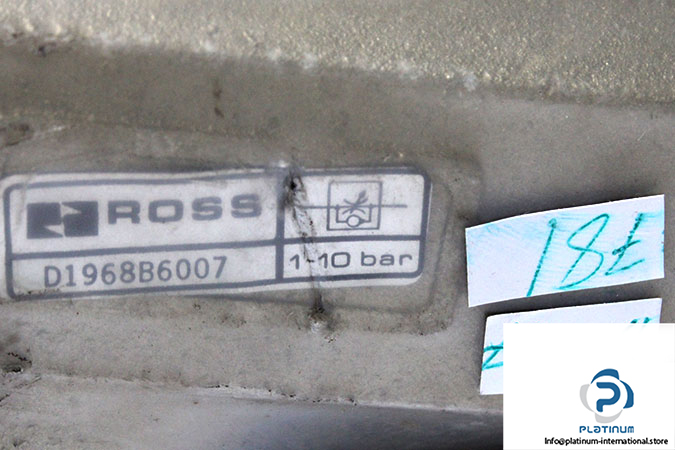

Model: D1968B6007

Actuation: Pneumatic
Function: 2/2
Construction: Poppet
Mounting: Inline
Fluid Media: Filtered Air
Operating Pressure: 5 to 150 psig
Valve Body Material: Cast Aluminum
Application: High Capacity
Thread Type: G
Ambient Temperature: -40 to 175 F
Adjustment: Knob
Profile: Offset
Size: 1-1/4″
Inlet Pipe Size: 1″
Outlet Pipe Size: 1″
Length: 5.00 in (127 mm)
Width: 2.25 in (57 mm)
Height: 7.07 in (180 mm)
