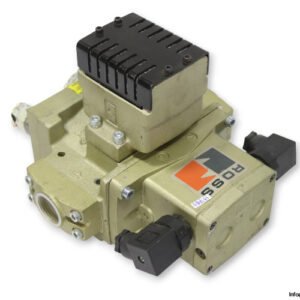

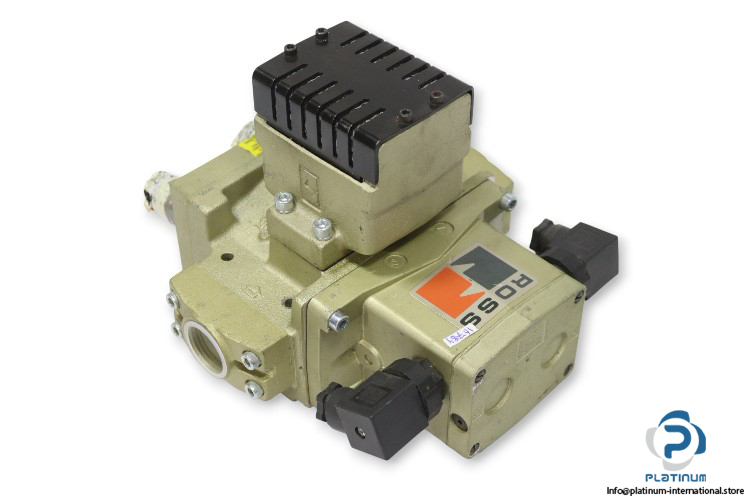

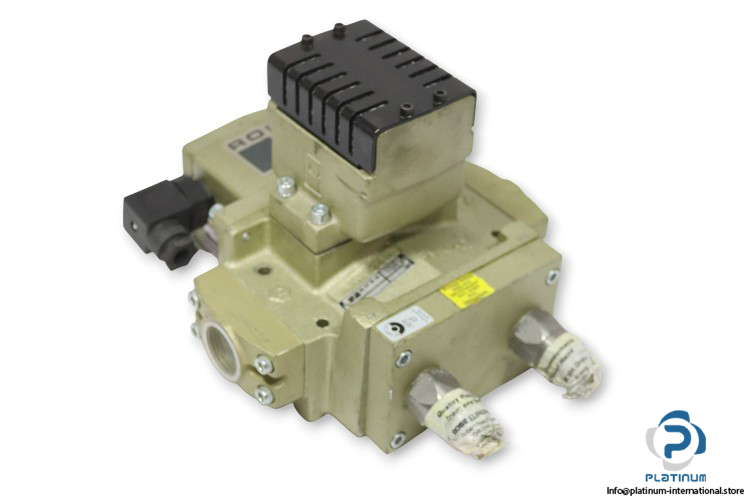

Ross D3573B6638 Double Valves with Pressure Switch
The Ross D3573B6638 is a high-performance dual-solenoid safety valve from the D3500 series, engineered for reliable control of pneumatic systems where safety, accuracy, and fast response are essential. With a rugged IP65 enclosure and high flow capacity, this valve is built to perform in demanding industrial applications.
Manufacturer: Ross
Type: Double Valves with Pressure Switch
Model: D3573B6638
Series: D3500
Technical Information
- Size: 8
- Port Size: G1
- Function: 3/2 Way-valve
- Actuation: Dual electrical solenoid
- Pressure Rating: 2 to 8.5 bar
- Flow Rate: 140 l/sec
- Flow Media: Filtered air
- Pilot Solenoids: Two, continuous duty
- Power Consumption: 87 VA max in-rush, 30 VA holding (50/60 Hz), 14 W nominal DC
- Ambient Temperature: 4°C to 50°C
- Media Temperature: 4°C to 80°C
- Enclosure Rating: IP 65
Recommendation: This valve is ideal for customers who require uncompromising safety, fast switching, and stable airflow in their pneumatic circuits. Its high flow rate and dual-solenoid redundancy make it a top choice for automated machinery, press systems, and applications where system uptime and operator safety are critical.
