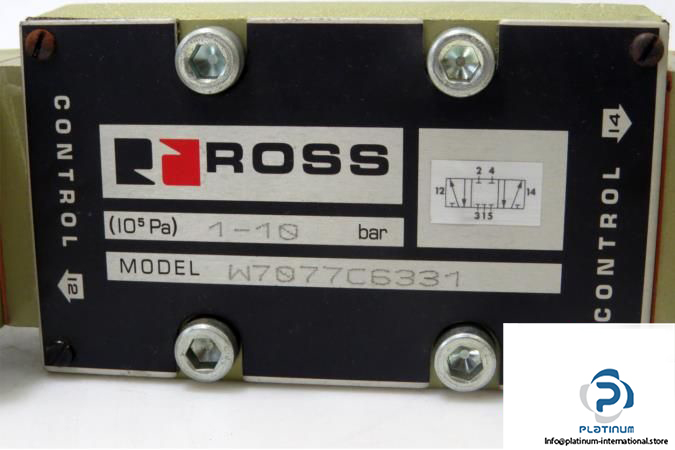

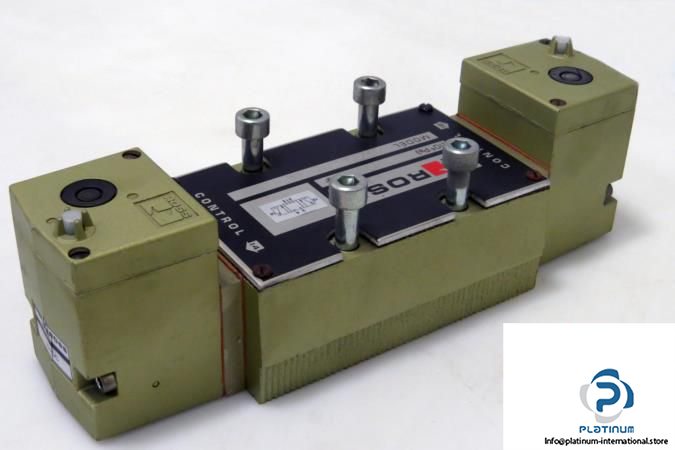

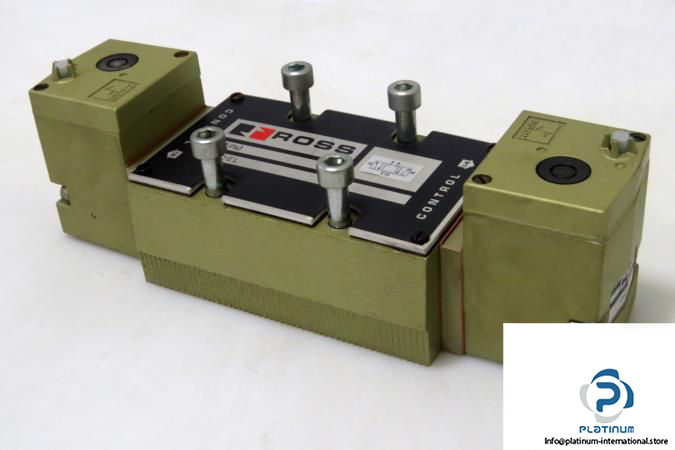

ROSS W7077C6331 Solenoid Control Valve

The ROSS W7077C6331 is a high-performance solenoid control valve designed for precise control of pneumatic systems. With a 5/3-way configuration, double solenoid actuation, and normally closed default position, it ensures reliable and efficient air flow management. Engineered for durability, it supports a wide operating pressure range and temperature tolerance, making it ideal for industrial applications.

• Manufacturer: ROSS
• Type: Solenoid Control Valve
• Model: W7077C6331

Technical Information

• Flow Media: Filtered air
• Type of Actuation: Electrically
• Function: 5/3-way, Double Solenoid
• Default Position: Normally Closed
• Operating Pressure: 1 to 10 bar
• Port Size: G3/4
• Ambient Temperature: 4 to 50°C
• Media Temperature: 4 to 80°C
