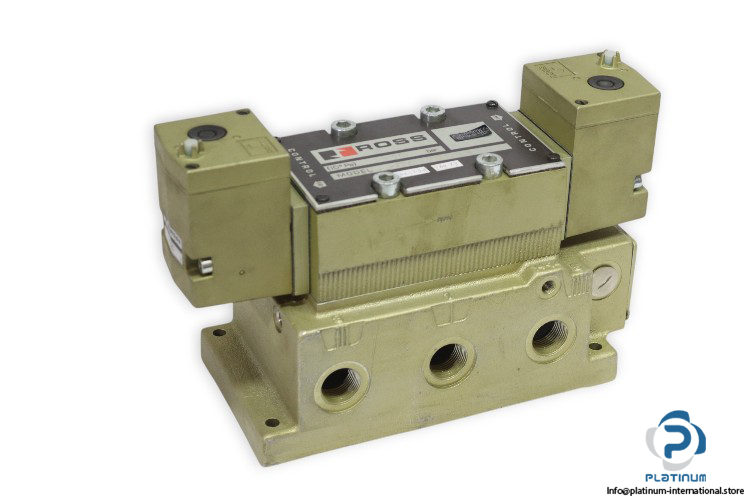

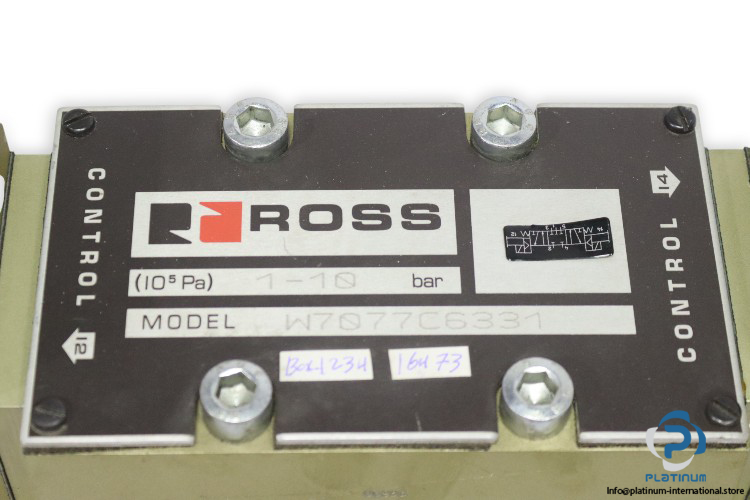

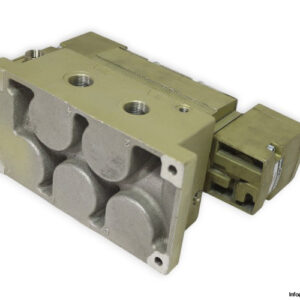

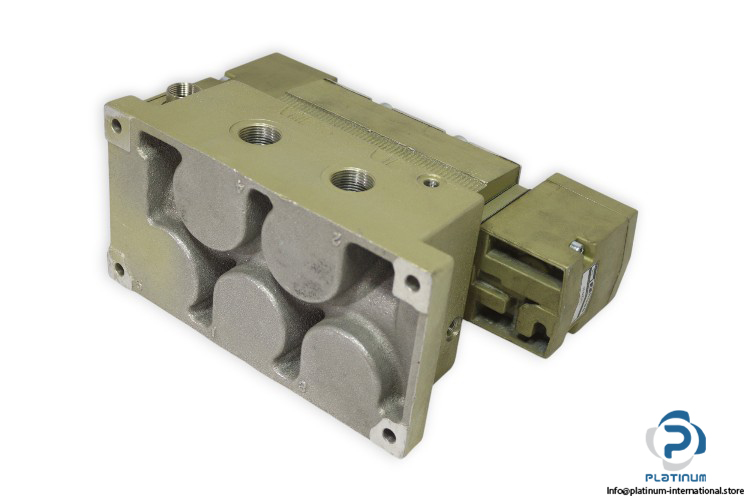

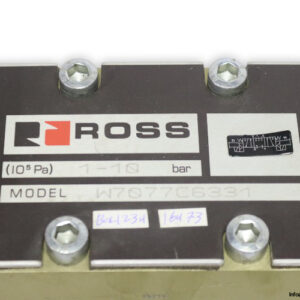

Ross W7077C6331 Double Solenoid Control Valve

The Ross W7077C6331 from the W70 Series is a high-performance double solenoid control valve with sub-base design. It is engineered for reliable operation in pneumatic applications, providing precise directional control for industrial air systems. With durable cast aluminum construction, stainless steel internals, and Buna-N seals, it ensures long-lasting service in demanding environments.

• Manufacturer: Ross
• Type: Double Solenoid Control Valve with Sub-Base
• Model: W7077C6331
• Series: W70

Technical Information

• Flow Media: Filtered air
• Type of Actuation: Electrically
• Function: 5/3-way, Double Solenoid
• Default Position: Normally Closed
• Operating Pressure: 1 to 10 bar

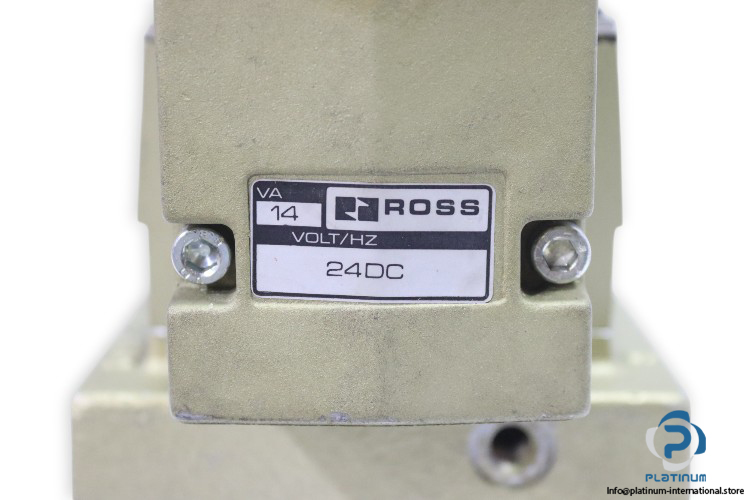

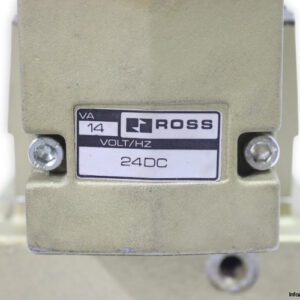

• Voltage: 24 V DC
• Power: 14 VA
• Port Size: G3/4
• Ambient Temperature: 4 to 50°C
• Media Temperature: 4 to 80°C
• Valve Body Material: Cast Aluminum
• Poppet/Spool Material: Stainless Steel
• Seal Material: Buna-N
• Dimensions: 99 x 306 x 101 mm
