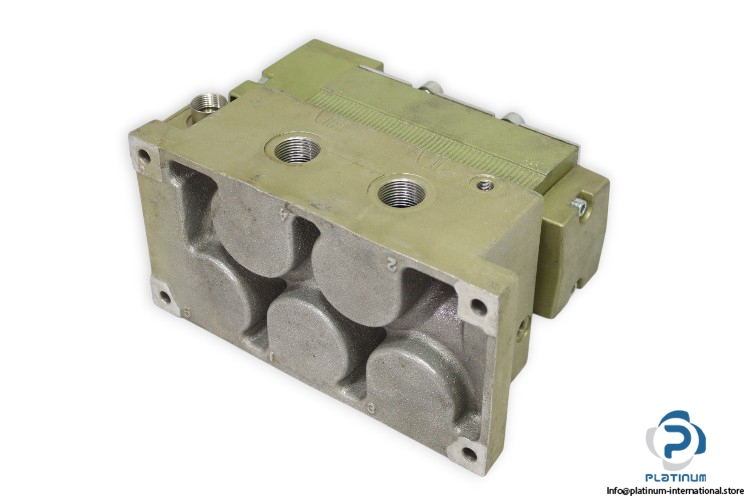

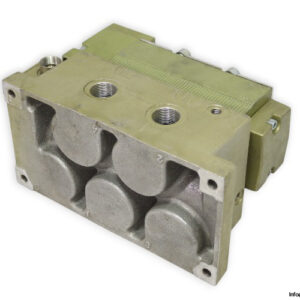

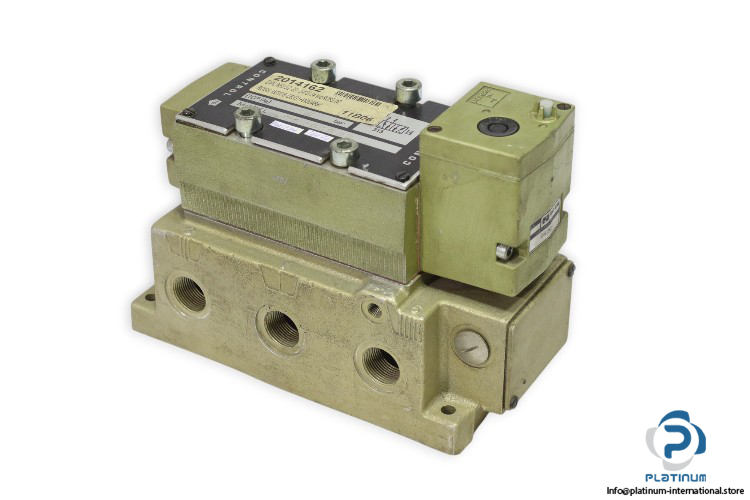

Ross W7076C6331 Single Solenoid Control Valve

The Ross W7076C6331 / W7076-C6331 is a high-performance single solenoid control valve designed for industrial pneumatic applications. Part of the reliable W70 Series, this 5/2-way valve provides precise control of filtered air, ensuring efficiency and durability in demanding environments. Its robust construction with a cast aluminum body, stainless steel spool, and Buna-N seals guarantees long service life and dependable operation.

• Manufacturer: Ross
• Type: Single Solenoid Control Valve
• Model: W7076C6331 / W7076-C6331

Technical Information

• Series: W70

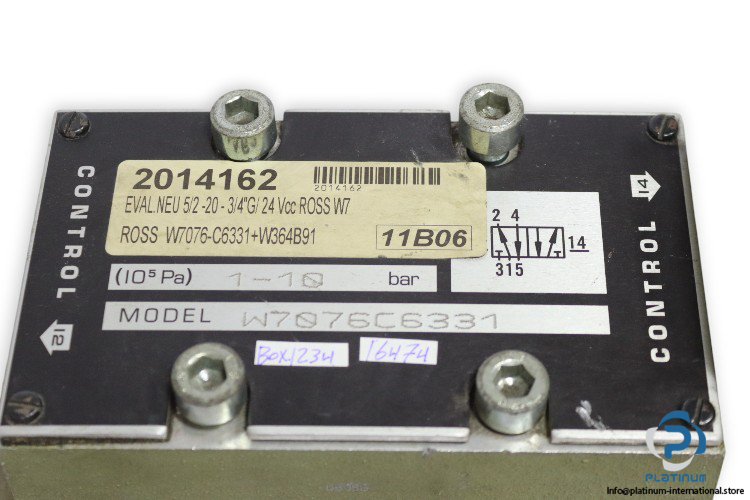

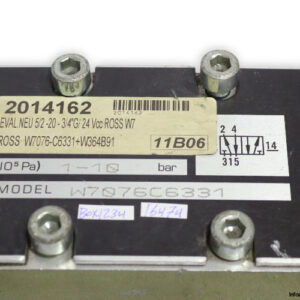

• Code: W364B91 / 2014162 / 11B06
• Flow Media: Filtered air
• Type of Actuation: Electrically
• Function: 5/2-way, Single Solenoid
• Operating Pressure: 1 to 10 bar

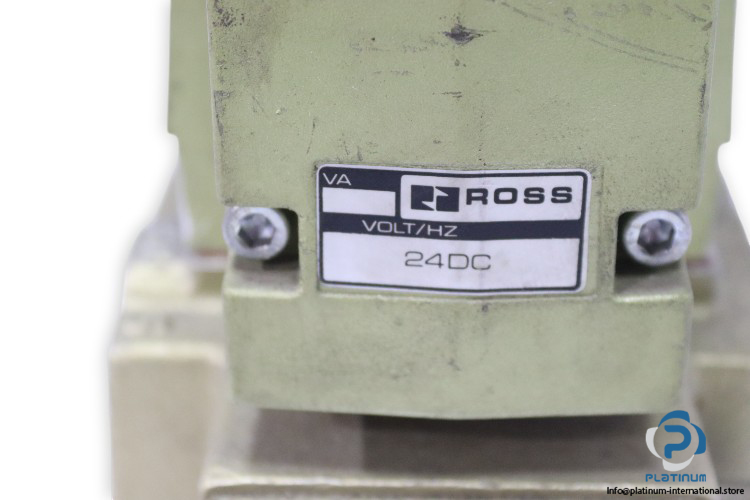

• Voltage: 24 V DC
• Port Size: G3/4
• Ambient Temperature: 4 to 50°C
• Media Temperature: 4 to 80°C
• Valve Body Material: Cast Aluminum
• Poppet/Spool Material: Stainless Steel
• Seal Material: Buna-N
• Dimensions: 99 x 306 x 101 mm
