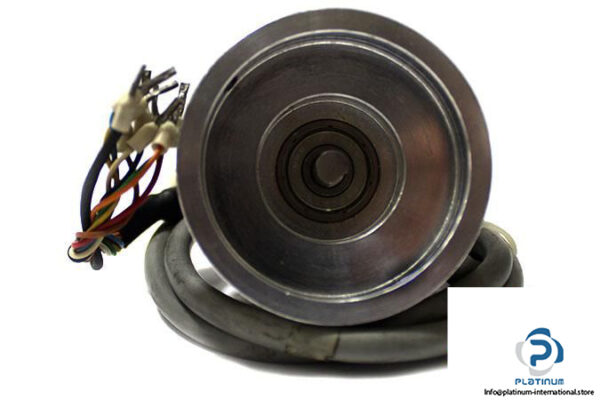

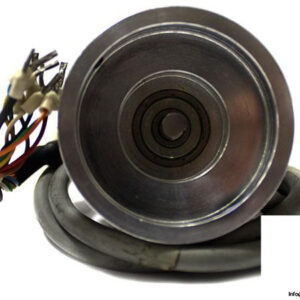

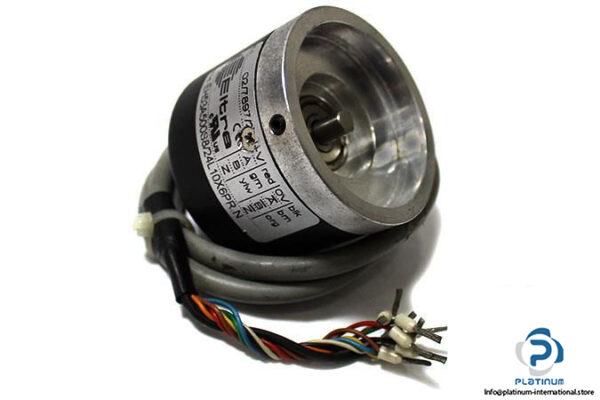

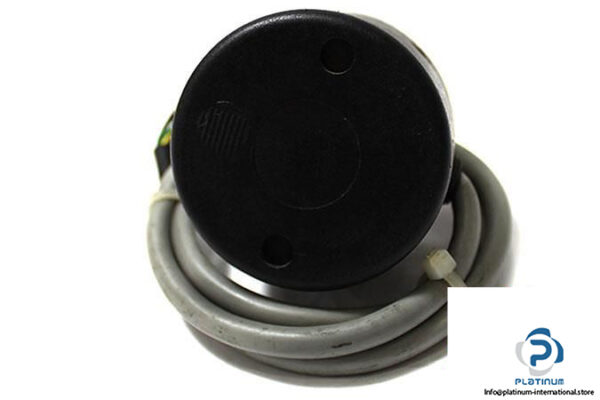

ELTRA EH53A500S8/24L10X6PR.N INCREMENTAL ENCODER
The ELTRA EH53A series incremental encoder is engineered for accurate position feedback in industrial automation systems. With a resolution of 500 PPR and robust line driver output, this encoder delivers reliable performance even in demanding environments.
Manufacturer: ELTRA
Type: Incremental Encoder

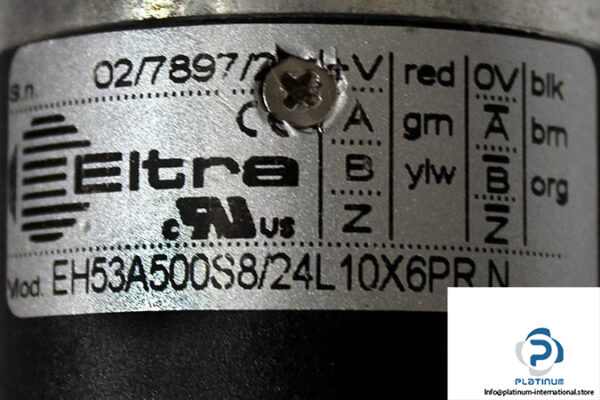

Model: EH53A500S8/24L10X6PR.N
Serial No.: 02/7897/2
Technical Information
- Resolution: 500 Pulses per Revolution (PPR)
- Voltage Supply: 8 / 24 VDC
- Output Frequency: 0 / 100 kHz
- Output Circuits: Line Driver
- Max Rotation Speed: 6000 rpm
- Connection Type: Radial cable output (1.5m)
- Protection Class: IP54
- Temperature Range: -10 / 60°C
