Manufacturer: Rotary Power
Type: Range Metering Pump

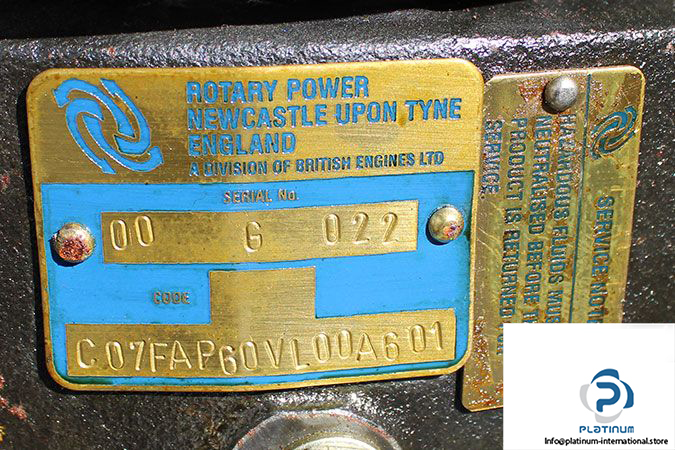

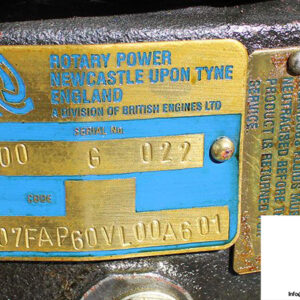

Model: C07FAP60VL00A601
FEATURES
- High Efficiency and Metering Accuracy from 7 Piston Design
- 5 Frame Sizes from 2 cc to 62 cc/rev
- Corrosion Resistant Main Cases
- High Inlet Pressures
- Fixed and Variable Output Options
- Easy Installation, Maintenance and Service
- Various Seal Options Including Magnetic Drive Couplings
- Large Bearings for Long Service Life
Geometric Displacement: 11.5 cc/rev
Max. Outlet Pressure TDT: 1800 rev/min
Max. Preload Pressure: 210 bar
Max. Outlet Pressure MDI, Polyol: 250 bar
Min. Outlet Pressure Above Inlet: 2 bar
Max Inlet Pressure: 20 bar
Min. Speed: 200 rpm
Max. Speed: 1800 l/min
Max. Temperature: 80 °C
Optimum Temperature: 10…50 °C
Weight: Approx 20 kg
