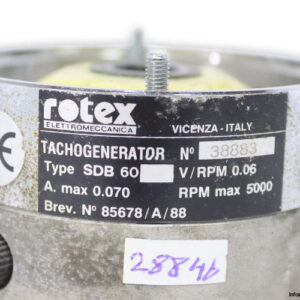

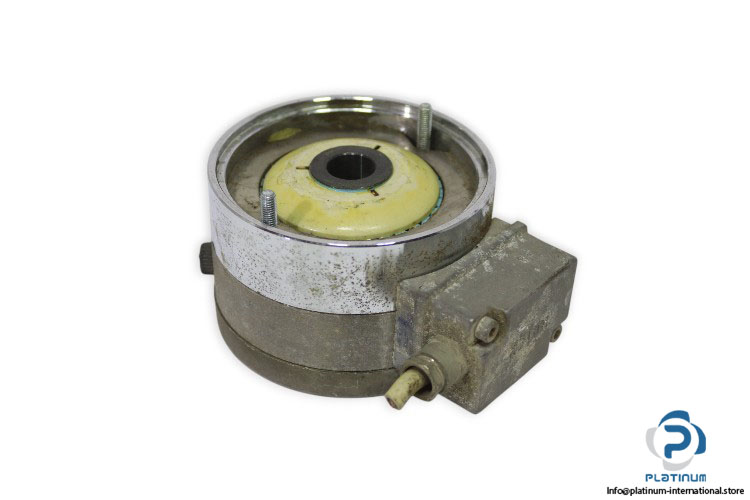

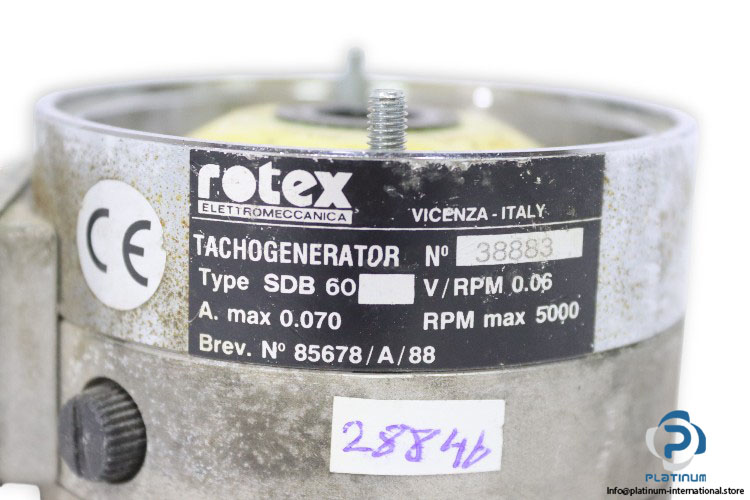

ROTEX ELETTROMECCANICA SDB 60 TACHO GENERATOR
The Rotex Elettromeccanica SDB 60 Tacho Generator is a precision device designed to deliver accurate voltage feedback in high-speed industrial applications. Built with durable protection class IP54, it provides stable output and reliable performance even under demanding conditions.
Manufacturer: Rotex Elettromeccanica
Type: Tacho Generator
Model: SDB 60
Part No.: 38883
Brev. No.: 85678/A/88
Technical Information
- Voltage: 60 V
- Hub Diameter: 14 mm
- Current: max. 0.07 A
- Speed: max. 5000 rpm
- Constant Voltage [V/rpm]: 0.06
- Number of Segments: 33
- Number of Poles: 2
- Resistance at 20°C: 400 Ohm
- Protection Class: IP54
