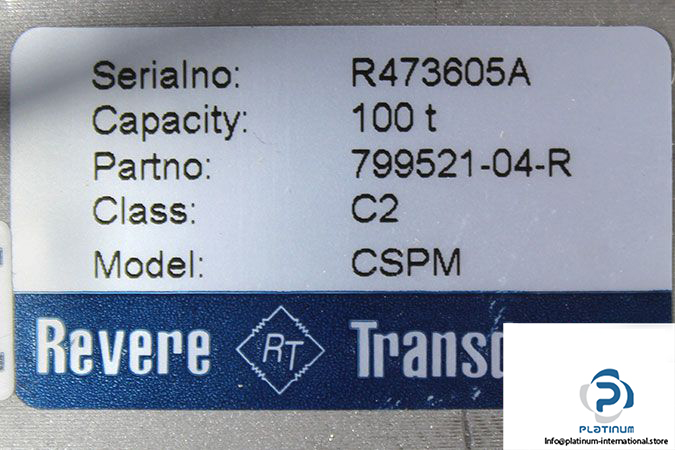

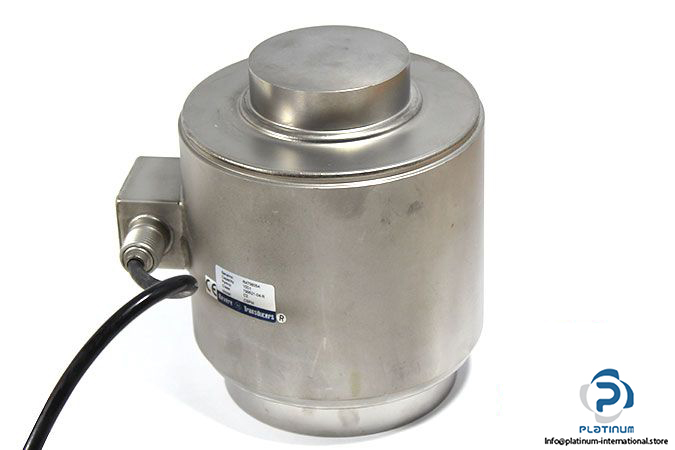

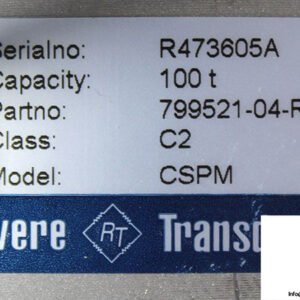

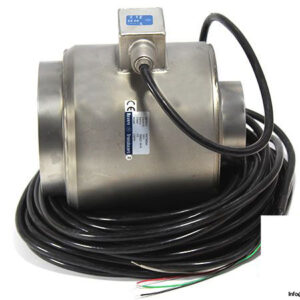

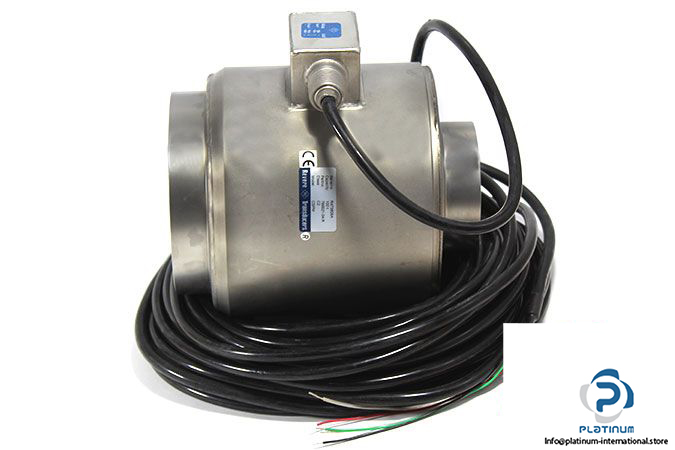

Manufacturer: REVERE TRANSDUCERS

Type: Compression Load Cell

Model: CSP-M

Part No: 799521-04-R

FEATURES

• Capacities: 100t
• Low Profile, Multi-Column Stainless Steel Construction
• Hermetically Sealed, Ip66 And Ip68
• Certified to OIML R-60, 4000d And NTEP Class IIIL 10000 Divisions
• Built-In Surge Protection Tubes (GDTS)
• Current Calibration Output (Sc Version) Ensures Easy and Accurate Parallel Connection of Multiple Load Cells

Applications

• Truck and Rail Weighbridges
• Silo and Hopper Weighing
• Process Weighing

Maximum weight limit (E max): 100000 kg (100t)

Rated Output: 2 mV/V

Excitation Voltage: 5…20 V

Max. Excitation Voltage: 25 V DC

Operating Temperature: -40…80 °C

Element Material: Stainless Steel 1.4542

Protection Class: IP66 & IP68

Class: C2

Weight: 17.02 kg
