Manufacturer: SagiCofim

Type: Fire Damper

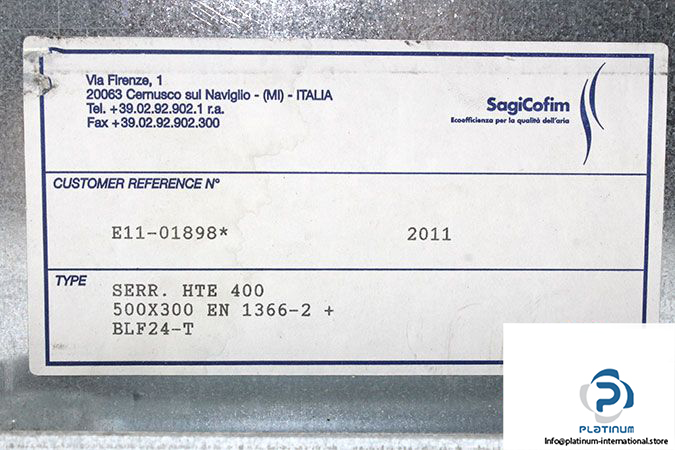

Model: SERR. HTE 400

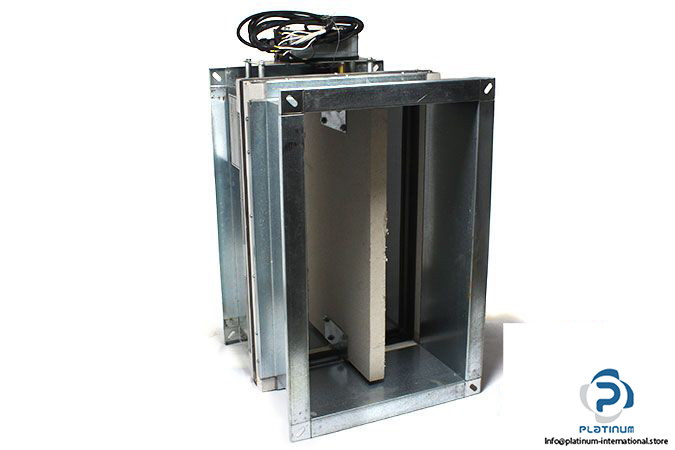

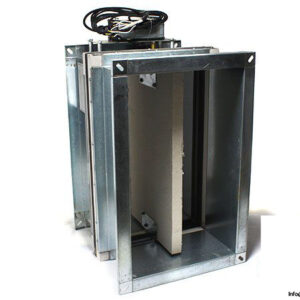

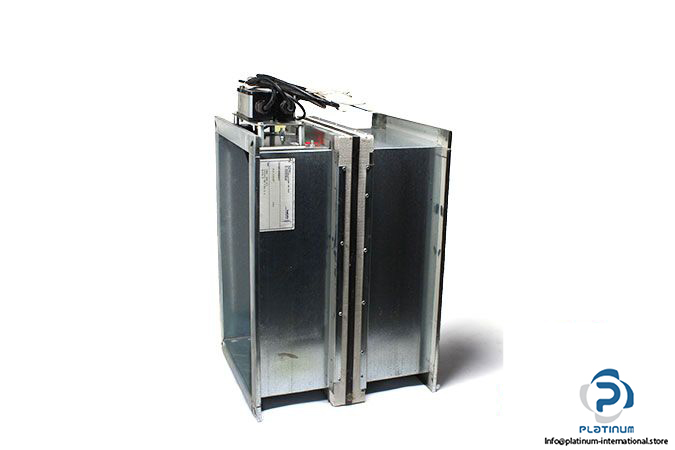

Symmetrical fire damper with two ducts in steel sheet and a calcium silicate 70mm depth element.

Inner Dimensions: 500×300 mm

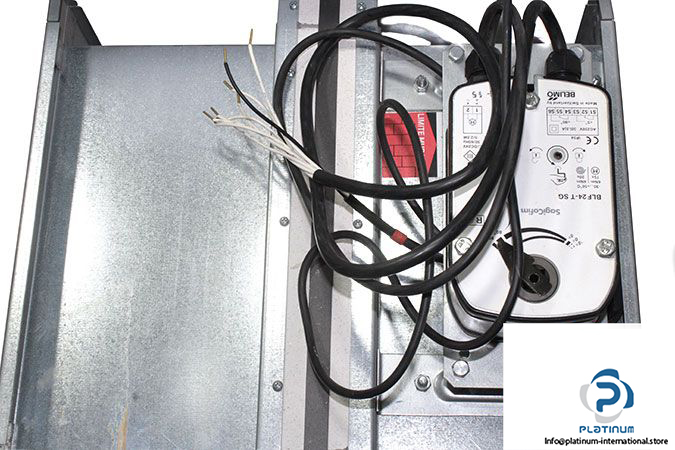

Attached: SagiCofim BLF24-T SG Actuator

with the following features:

– rotation movement as 95°, with return spring mechanism in ab-

sence of electric input or with a remote control by inner galvanized steel gear

– two thermo electrical devices calibrated at 72°C

– emergency closing time 16 sec.

– halogen free connecting cables

– two auxiliary switches in order to show the blade position

Weight: 16 kg
