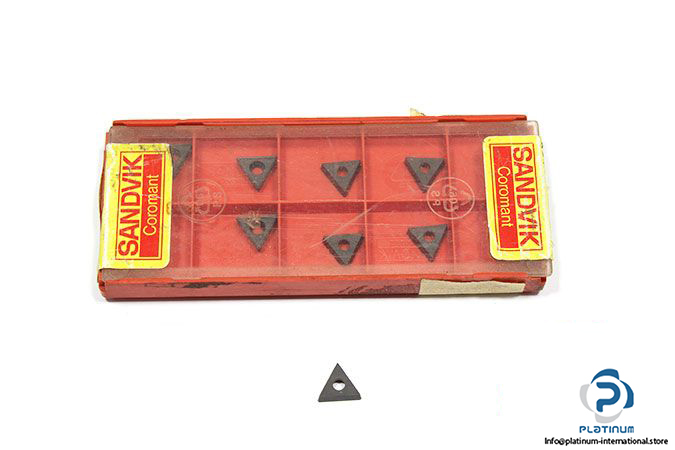

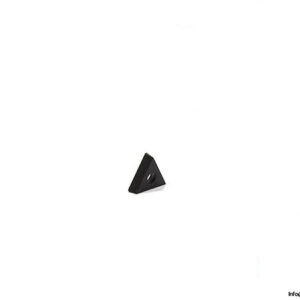

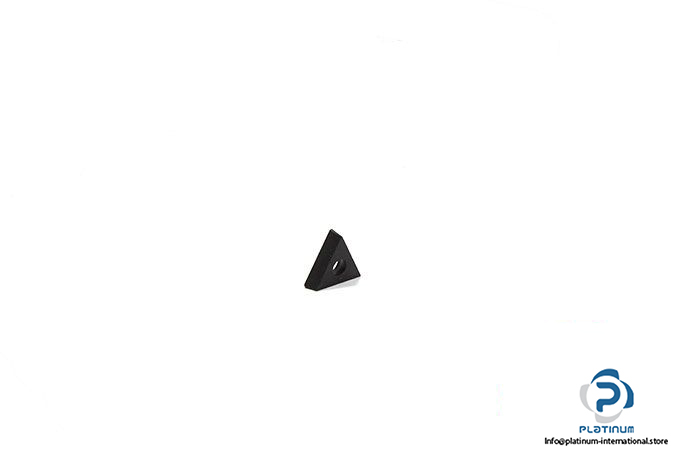

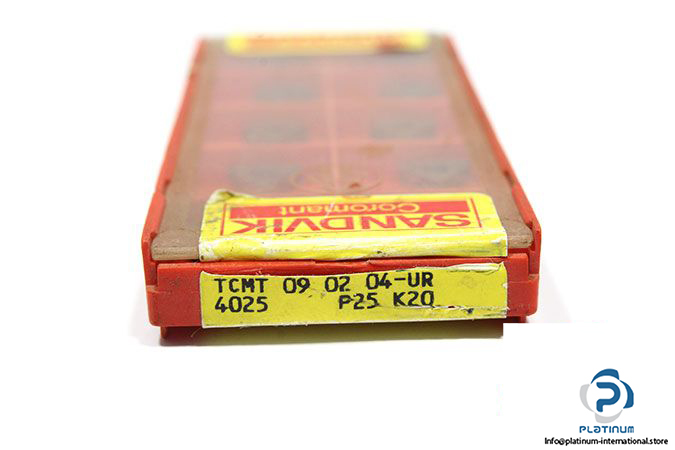

Manufacturer: SANDVIK ‎

Type: Insert For Turning

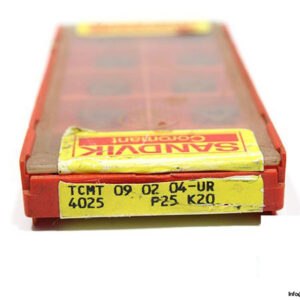

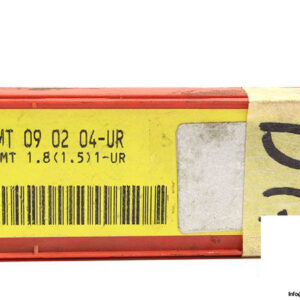

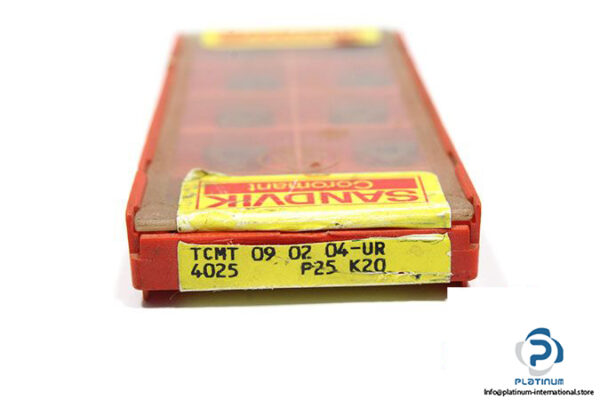

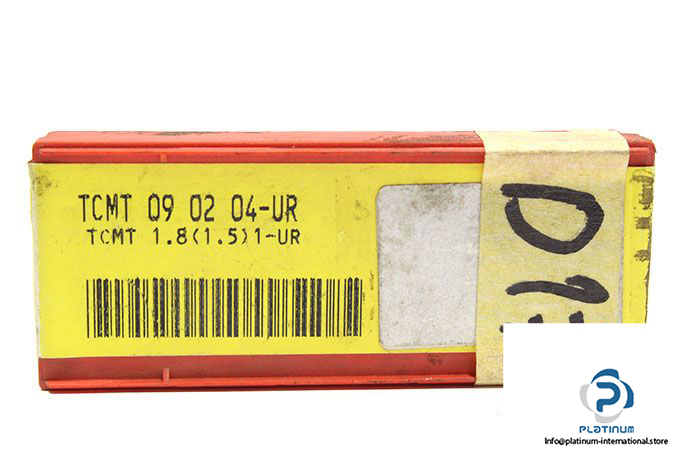

ISO: TCMT 09 02 04-UR

ANSI: TCMT 1.8(1.5)1-UR

Insert size and shape: TC0902

Inscribed circle diameter (IC): 5.556 mm

Cutting edge effective length (LE): 8.97 mm

Wiper edge property (WEP): false

Grade (GRADE): 4025

Coating (COATING): CVD TICN+AL2O3+TIN

Insert mounting style code (IFS): 3

Corner radius (RE): 0.397 mm

Insert thickness (S): 2.381 mm

Weight: 0.10 kg
