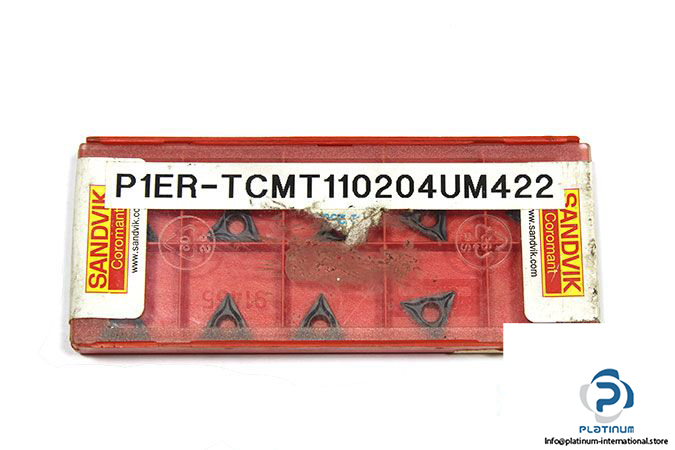

Manufacturer: SANDVIK

Type:  Insert for Turning

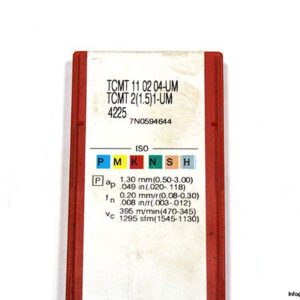

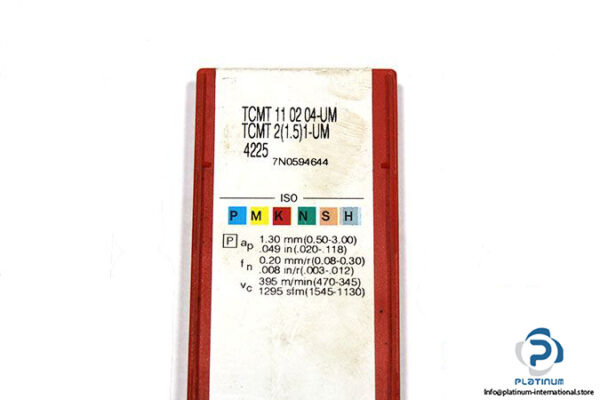

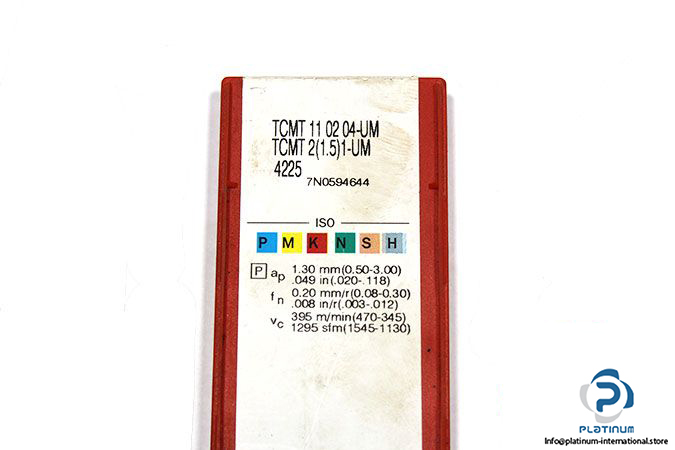

ISO: TCMT 11 02 04-UM 4225

ANSI: TCMT 2(1.5)1-UM 4225



Material Id: 5752481

Insert size and shape (CUTINTSIZESHAPE): TC1102

Cutting edge count (CEDC): 3

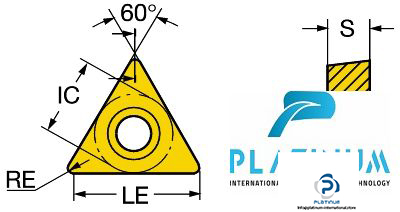

Inscribed circle diameter (IC): 6.35 mm

Insert shape code (SC): T

Cutting edge effective length (LE): 10.34 mm

Corner radius (RE): 0.397 mm

Wiper edge property (WEP): false

Hand (HAND): N

Grade (GRADE): 4225

Substrate (SUBSTRATE): HC

Coating (COATING): CVD TICN+AL2O3+TIN

Insert thickness (S): 2.381 mm

Clearance angle major (AN): 7 deg

Weight: 0.02 kg
