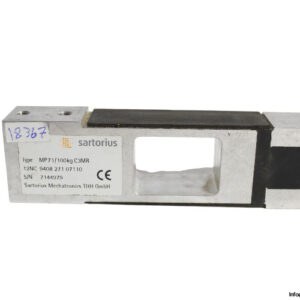

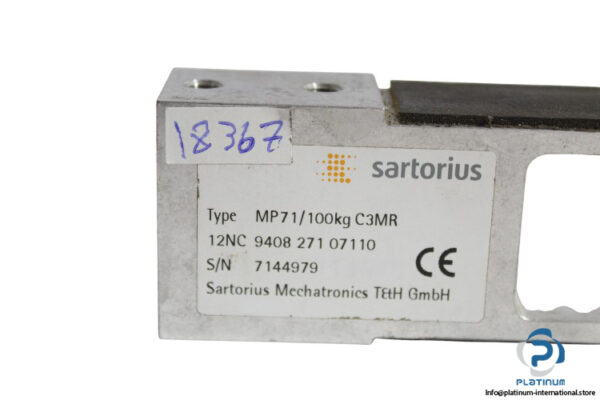

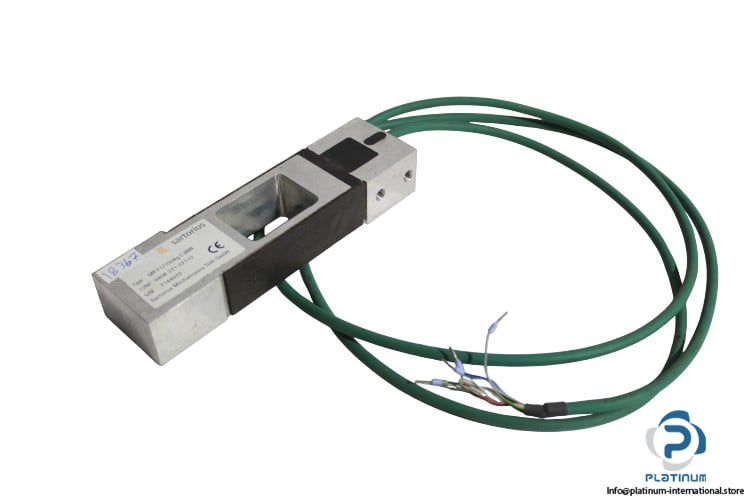

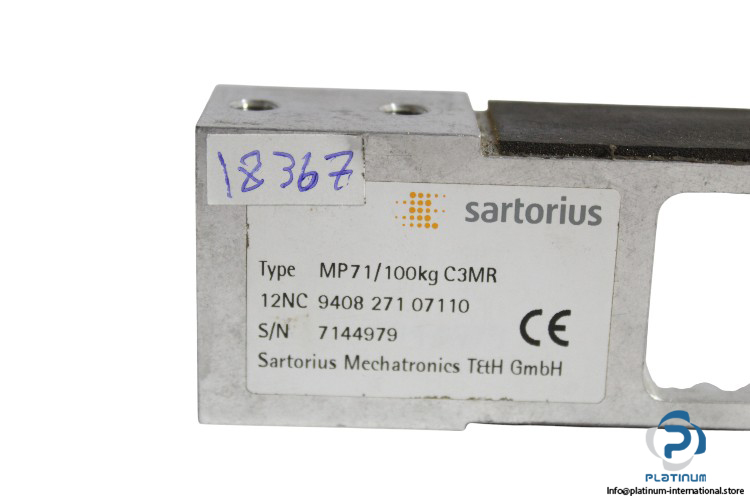

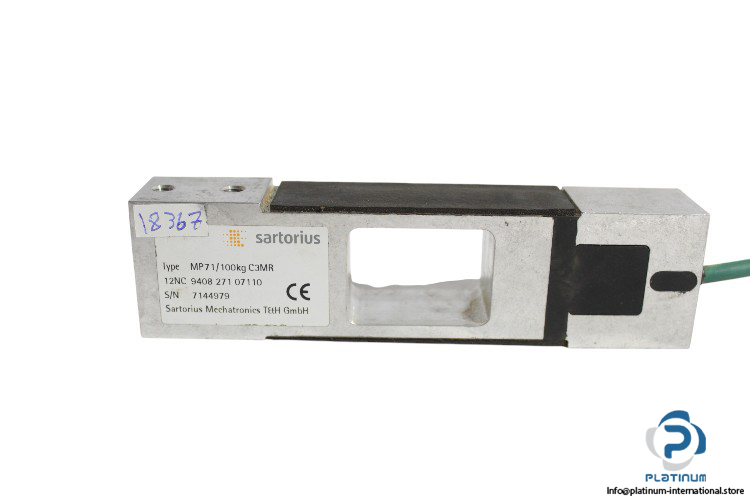

SARTORIUS MP71/100KG C3MR SINGLE POINT LOAD CELL
Engineered for precision weighing and force measurement applications, the Sartorius MP71/100KG C3MR Single Point Load Cell offers outstanding accuracy and durability. Suitable for use in industrial and laboratory environments, this load cell provides robust overload protection and high-performance signal consistency.
Manufacturer: SARTORIUS
Type: Single Point Load Cell
Model: MP71/100KG C3MR
Part No.: 12NC 9408 271 07110
COMAS Part No.: 0565.213.071
Serial No.: 7145140
Technical Information
- Accuracy Class (Combined Error): 0.020 % Cn
- Maximum Capacity (Emax): 100 kg
- Maximum Usable Load (Eu): 150 % Emax
- Destructive Load (Ed): 300 % Emax
- Safe Side Load (Elq): 100 % Emax
- Input Impedance (RLC): 413 ± 20 ohm
- Output Impedance (RO): 350 ± 25 ohm
- Insulation Impedance (RIS): 5 Gohm (100V DC)
- Recommended Supply Voltage: 5 / 15 V
- Nominal Ambient Temperature Range: -10 / +40 °C
- Nominal Deflection: 0.39 mm (Emax = 100kg)
- Cable Length: 1.5 m (optional lengths available)
- Cable Type: 6 conductor TPE cable (AWG 26), shield grounded
- Sensor Material: Aluminium
- Protection Class: IP67 (IEC 529)
