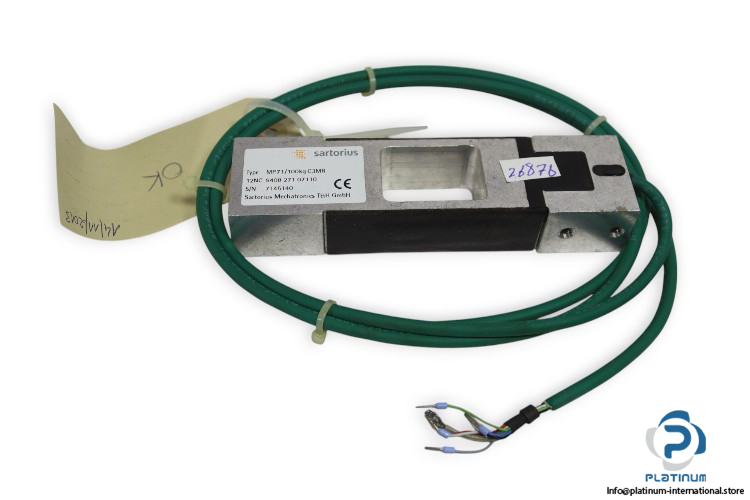

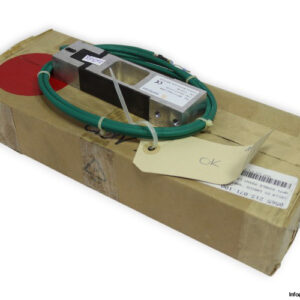

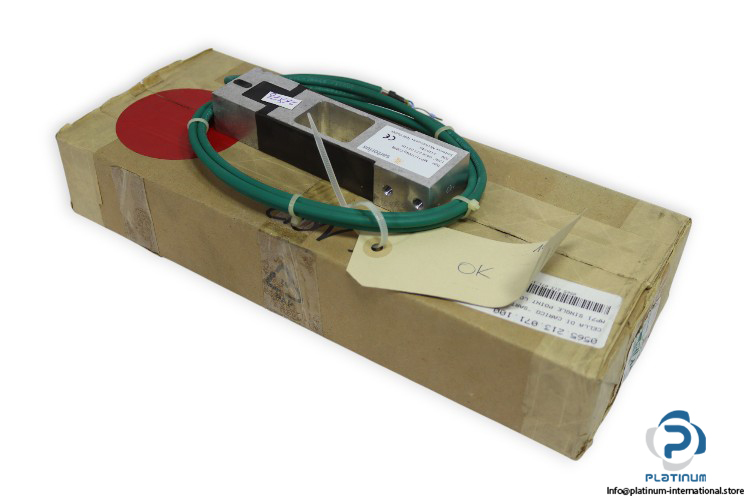

SARTORIUS MP71/100KG C3MR SINGLE POINT LOAD CELL
The Sartorius MP71/100KG C3MR is a high-precision single point load cell designed for demanding industrial weighing applications. Built with robust aluminium construction and IP67 protection, it offers superior performance and reliability in harsh environments.
Manufacturer: SARTORIUS
Type: Single Point Load Cell

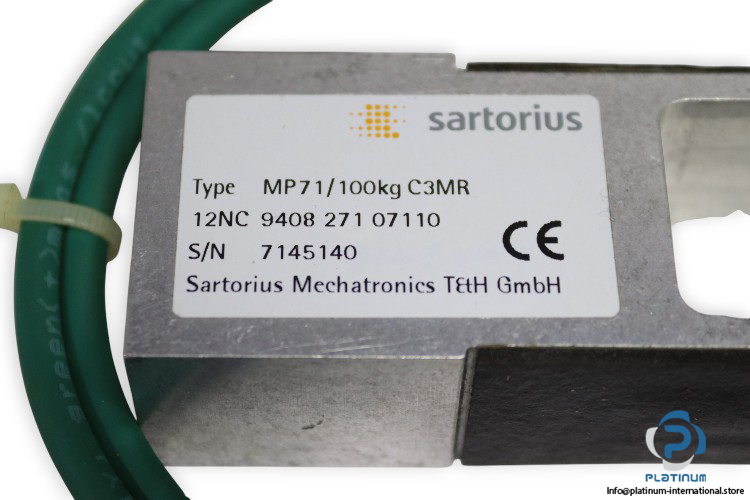

Model: MP71/100KG C3MR
Part No.: 12NC 9408 271 07110
COMAS Part No.: 0565.213.071
Serial No.: 7145140
Technical Information
- Accuracy Class (Combined Error): 0.020 % Cn
- Maximum Capacity (Emax): 100 kg
- Maximum Usable Load (Eu): 150 % Emax
- Destructive Load (Ed): 300 % Emax
- Safe Side Load (Elq): 100 % Emax
- Input Impedance (RLC): 413 ± 20 ohm
- Output Impedance (RO): 350 ± 25 ohm
- Insulation Impedance (RIS): 5 Gohm (at 100V DC)
- Recommended Supply Voltage: 5 / 15 V
- Nominal Ambient Temperature Range: -10 / +40 °C
- Nominal Deflection:
- 0.56 mm (Emax = 5 kg)
- 0.46 mm (Emax = 10 kg)
- 0.39 mm (Emax = 20 kg)
- 0.38 mm (Emax = 30 kg)
- 0.37 mm (Emax = 50 kg)
- 0.39 mm (Emax = 100 kg)
- 0.48 mm (Emax = 200 kg)
- Cable Length: 1.5 m (other lengths optional)
- Cable Type: 6 conductor TPE cable (AWG 26), shield grounded (optional: shield floating)
- Sensor Material: Aluminium
- Protection Class: IP67 (IEC 529)
