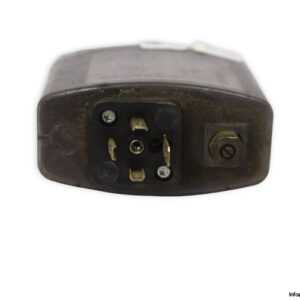

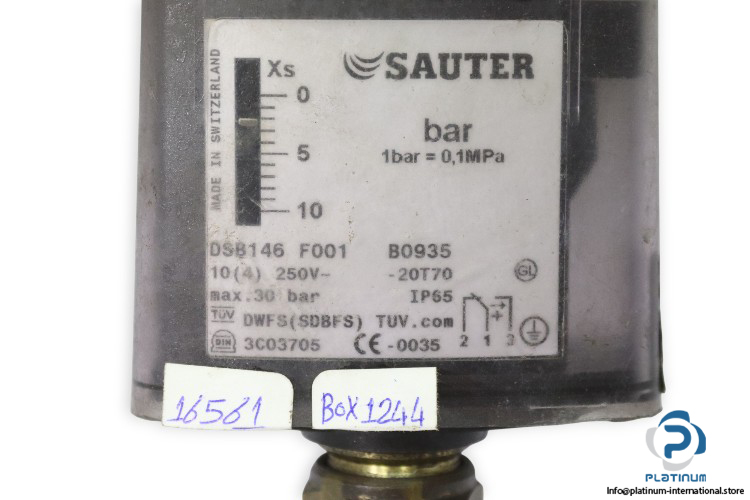

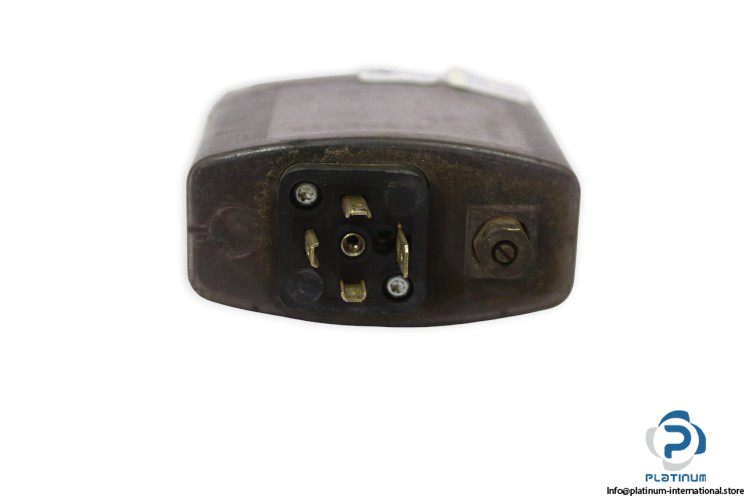

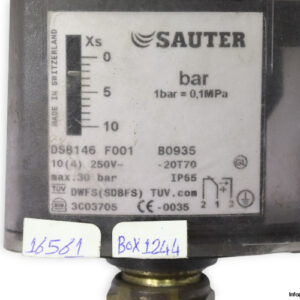

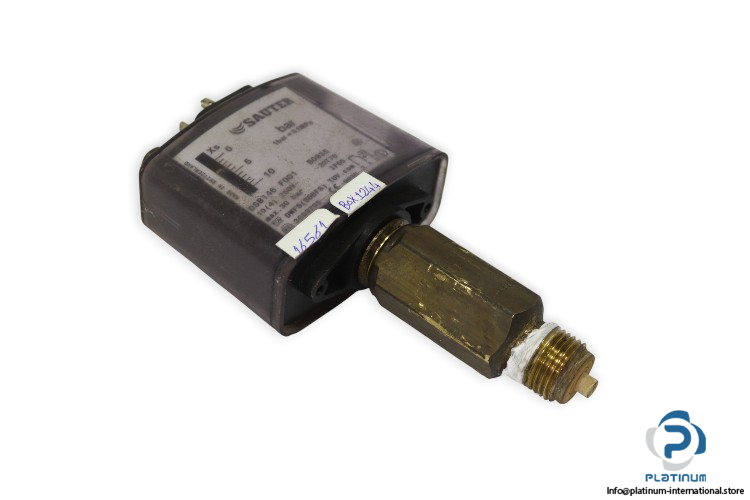

SAUTER DSB146F001 Pressure Switch

The SAUTER DSB146F001 Pressure Switch is a high-quality device designed for monitoring and controlling pressure in pneumatic and hydraulic systems. With durable brass and stainless steel housing, it ensures reliable performance and long service life under demanding industrial conditions.

Manufacturer: SAUTER
Type: Pressure Switch
Model: DSB146F001
Code: B0935 / -20T70 / 3C03705 / 0035
Test Mark: DWFS (SD8FS)
Series: DSB

Technical Information

• Pressure Setting Range: 0 to 10 bar
• Maximum Pressure: 30 bar
• Housing Material: Brass, stainless steel, nitrile rubber
• Connection: G 1 by 2 threaded
• Electrical Connection: Plug connection
• Supply Voltage: 250 V AC
• Fluid Temperature Range: minus 20 to 70 degree Celsius
• Protection: IP65
