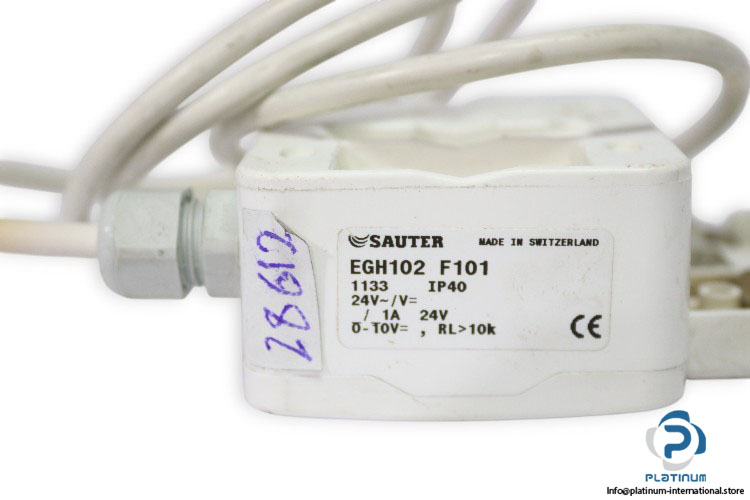

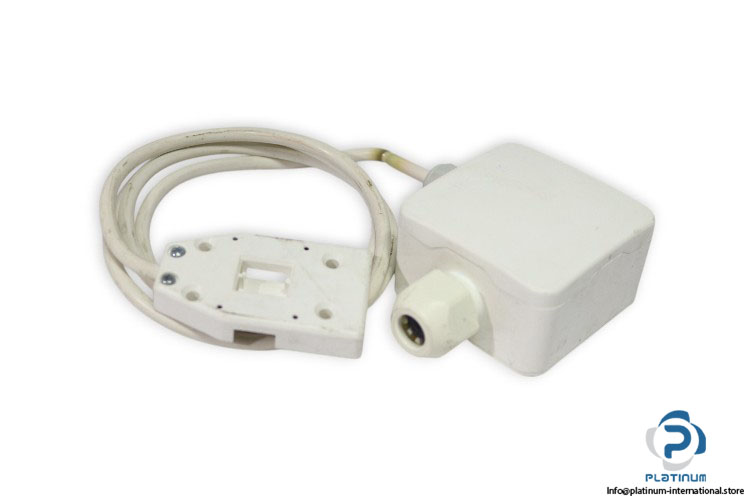

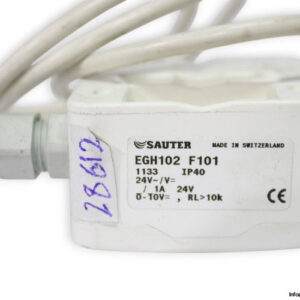

Sauter EGH 102 F101 Dew-Point Monitor and Transducer

The Sauter EGH 102 F101 is a precision dew-point monitor and transducer designed for reliable humidity measurement and monitoring. With a compact build, stable switching performance, and accurate transducer output, it ensures dependable control in HVAC and industrial environments.

Manufacturer: Sauter
Type: Dew-Point Monitor and Transducer
Model: EGH 102 F101
Ref. No.: 1133

Technical Information

• Power Supply: 24 V AC/DC
• Current: 1A, 24 V
• Sensor: With cable
• Output Signal: approx. 70 to 85 %rh, 0 to 10 V, load > 10 kΩ
• Measuring Range: 70 to 85 %
• Switching Point: 95 ± 4 %
• Switching Difference: fixed, approx. 5 %rh
• Power Consumption: max. 1 VA
• Ambient Temperature: 5 to 60 °C
• Dimensions: 81 x 36.5 x 82.5 mm
• Protection Class: IP40
