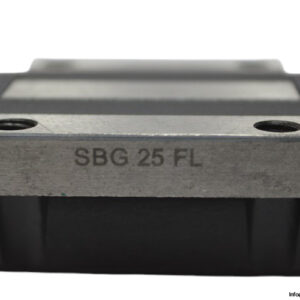

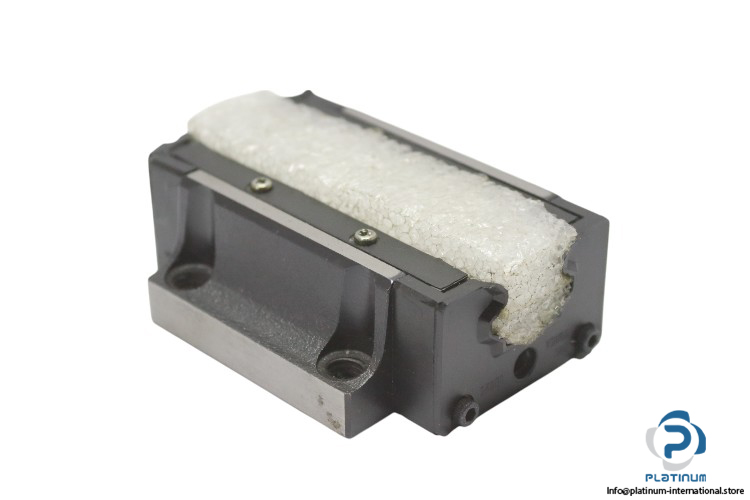

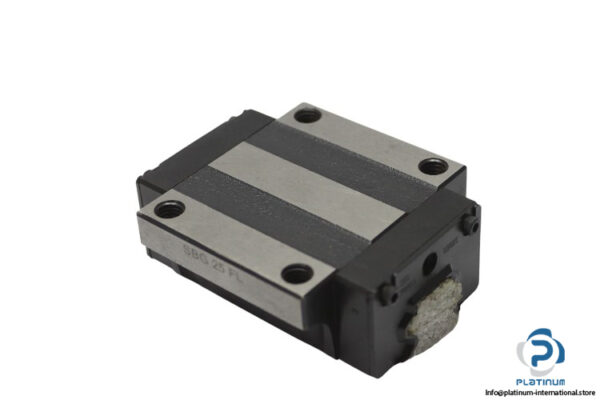

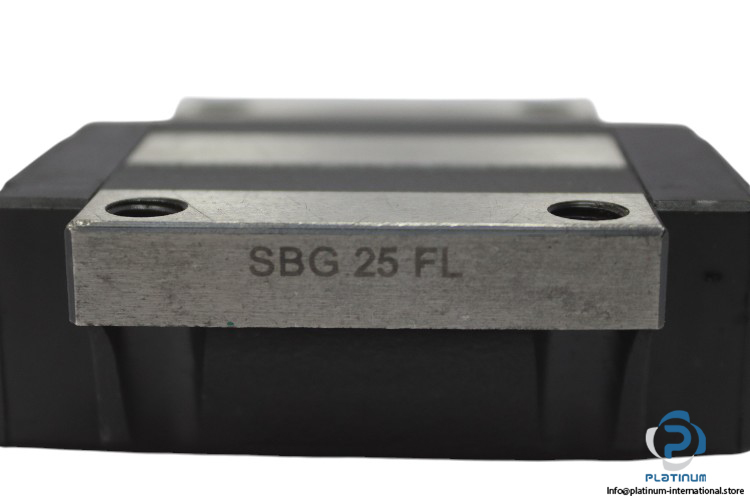

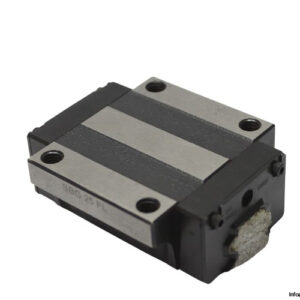

SBC SBG 25 FL Linear Guideway Block
The SBC SBG 25 FL Linear Guideway Block is designed for smooth and precise linear motion in various industrial applications. It features a flange type design and is built for high load ratings, making it ideal for heavy-duty linear motion systems.
Manufacturer: SBC
Type: Linear Guideway Block
Model: SBG 25 FL
Technical Information:
- Size: 25 mm
- Block Type: FL-Flange type
- Total Height: 36 mm
- Block Width: 70 mm
- Block Length: 86.9 mm
- Block Height: 29.5 mm
- Thread Size: M8

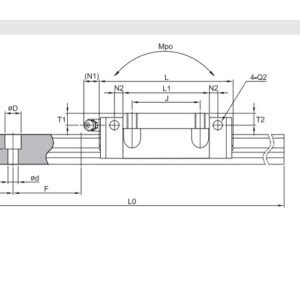

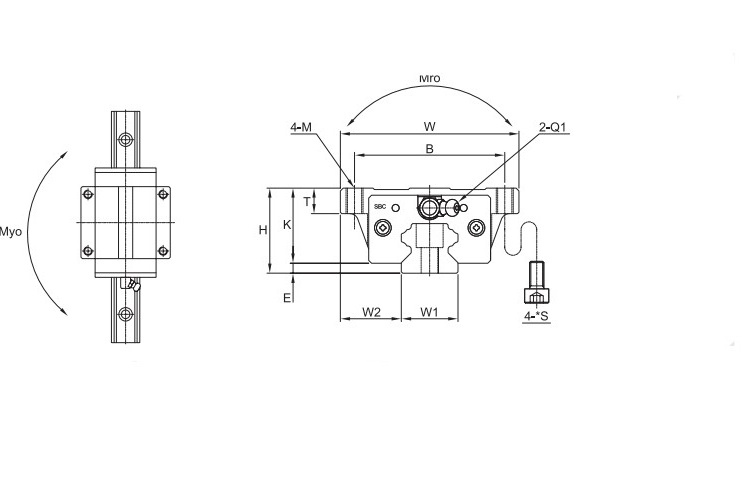

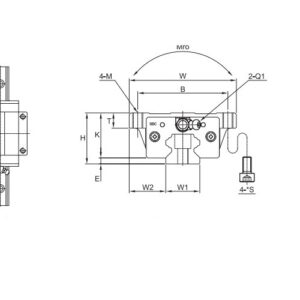

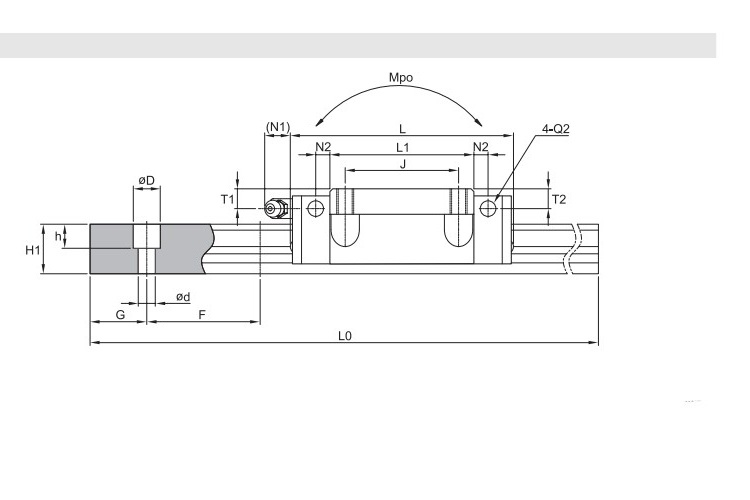

- B: 57 mm
- J: 45 mm
- Basic Dynamic Load Rating: 20.9 kN
- Basic Static Load Rating: 39.2 kN
