Manufacturer: SBC

Type: Linear Guideway Block SBM

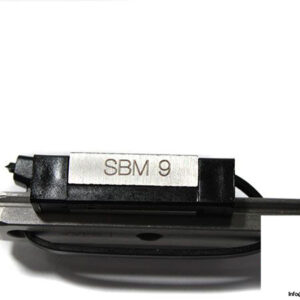

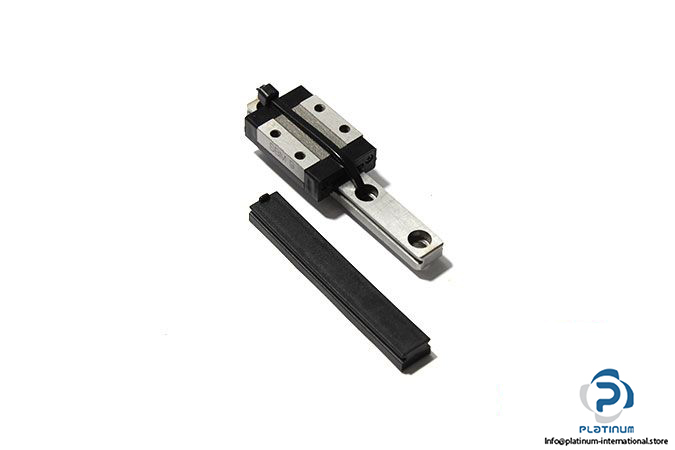

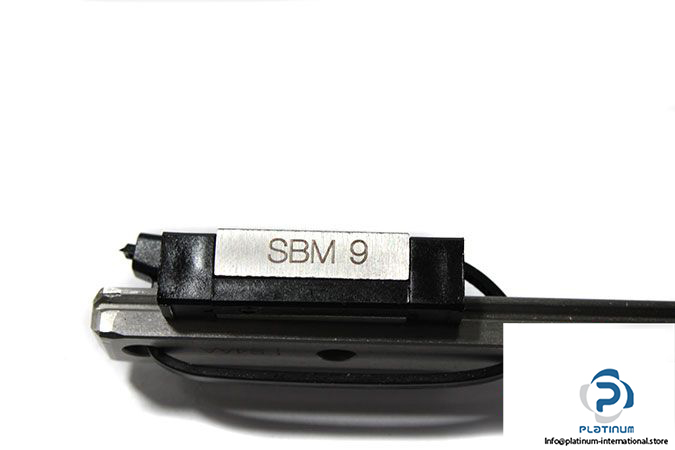

Model: SBM 09

Size: 9 mm

Block Type: Square Type

Basic Load Ratings:

Dynamic C: 1.42 kN

Static C₀: 2.9 kN

Permissible static moment:

X axis M_ro: 10.39 kNm

Y axis M_yo: 5.1 kNm

Z axis M_po: 5.1 kNm

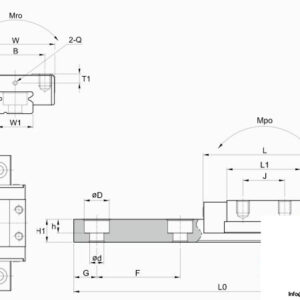

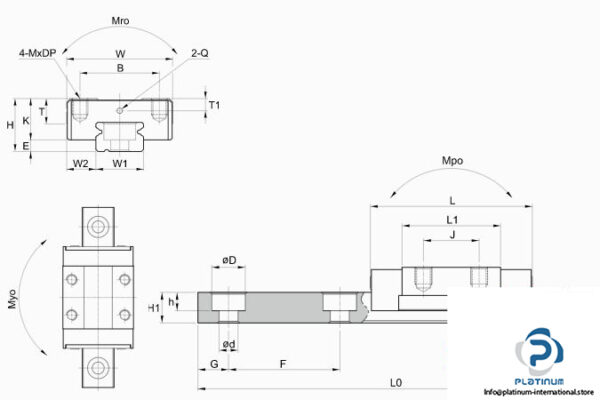

Dimensions

Total Height H: 10 mm

Block Width W: 20 mm

Block Length L: 30.1 mm

Weight: 0.04 kg
