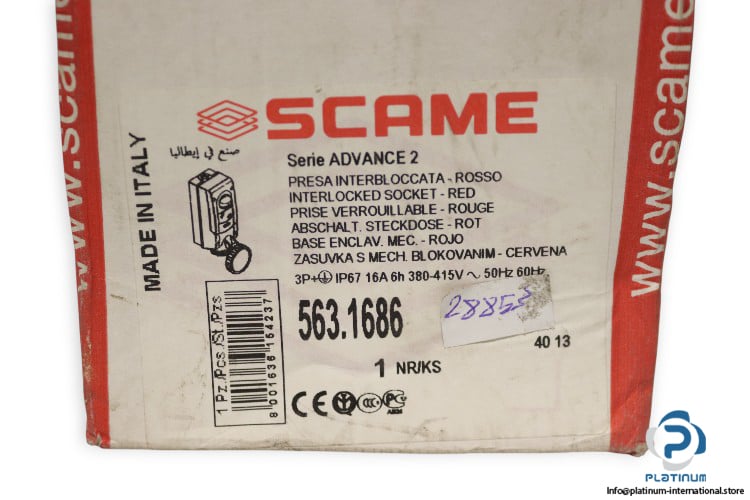

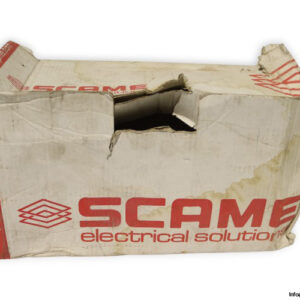

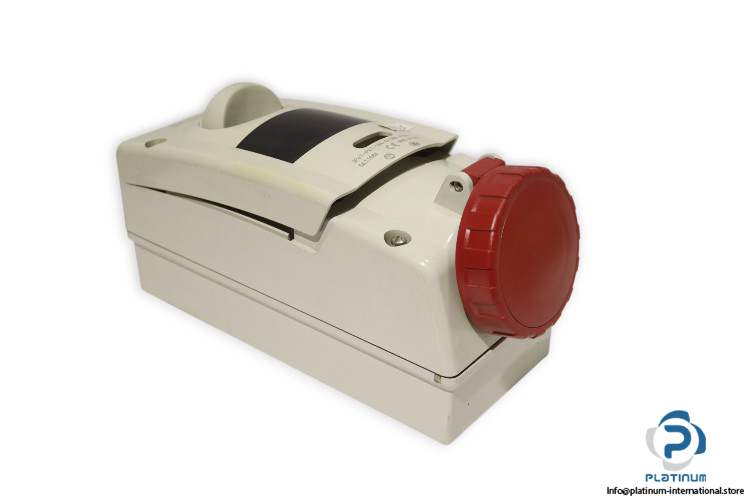

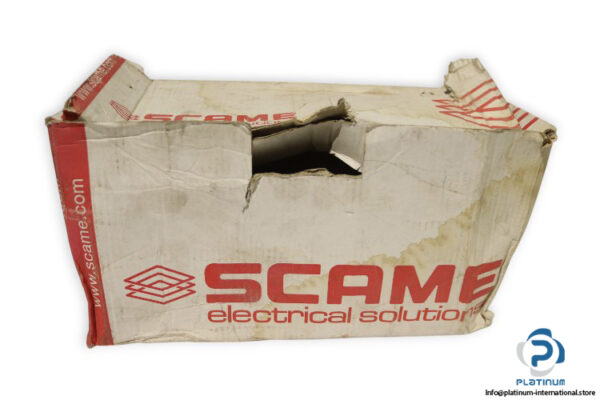

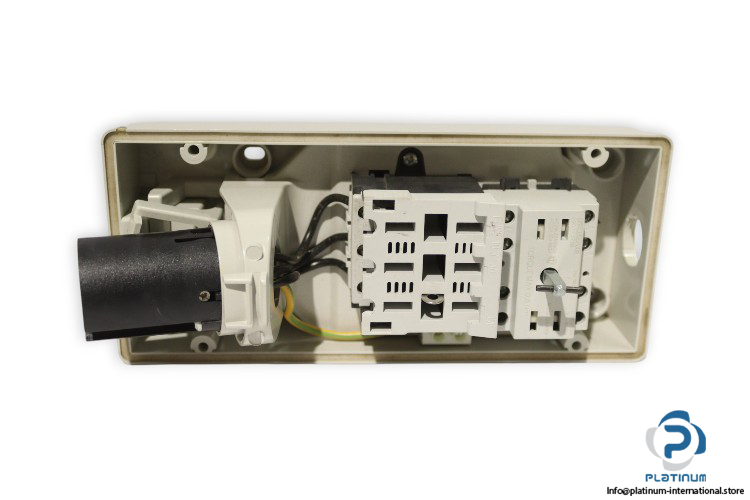

SCAME 563.1686 INTERLOCKED SOCKET “ ADVANCE 2 SERIES

The SCAME 563.1686 Interlocked Socket from the ADVANCE 2 series is a robust and reliable industrial power connection solution. Built with durable thermoplastic material and high protection (IP67), it ensures safe operation in demanding environments. This model includes compatibility with the SCAME 590.YF323B Switching Unit, providing enhanced functionality for industrial applications.

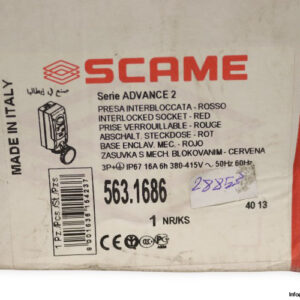

Manufacturer: Scame
Type: Interlocked Socket
Part No.: 563.1686
Serial No.: 8001636154237
Code: 40 13
Series: ADVANCE 2

Technical Information

• Color: Red
• No of Poles: 3P + E
• Flange: 106 x 240 mm
• Cable Entry: M25x1.5
• Padlock: 5 mm
• Current: 16 A
• Voltage Rating: 380 to 415 V AC
• Frequency: 50/60 Hz
• Material: Thermoplastic
• IP Rating: IP67

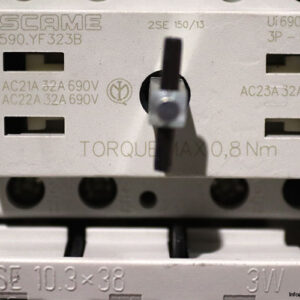

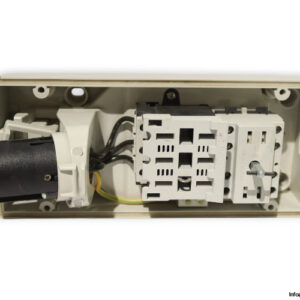

Attachment

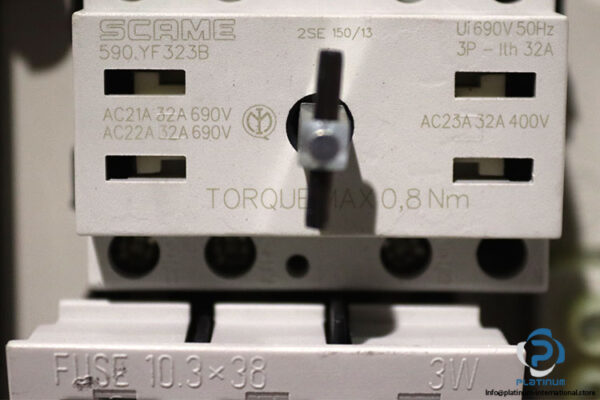

Attachment: SCAME 590.YF323B Switching Unit
Manufacturer: SCAME
Type: Switching Unit
Model: 590.YF323B
Code: 2SE 150/13

• Fuse: 10.3 × 38
• Power: 3 W
• Torque: Max 0.8 Nm
• No of Poles: 3
• Thermal Current: 32 A
• Rated Voltage: 400 / 690 V
• Rated Insulation Voltage: 690 V
• Frequency: 50 Hz
