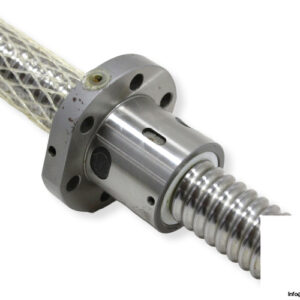

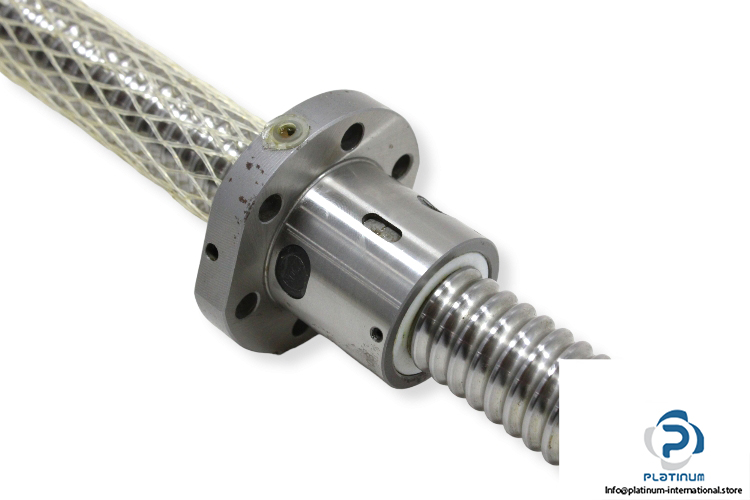

Manufacturer: SCARAVELLA

Type: Flanged Ball screw

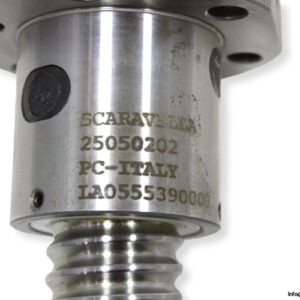

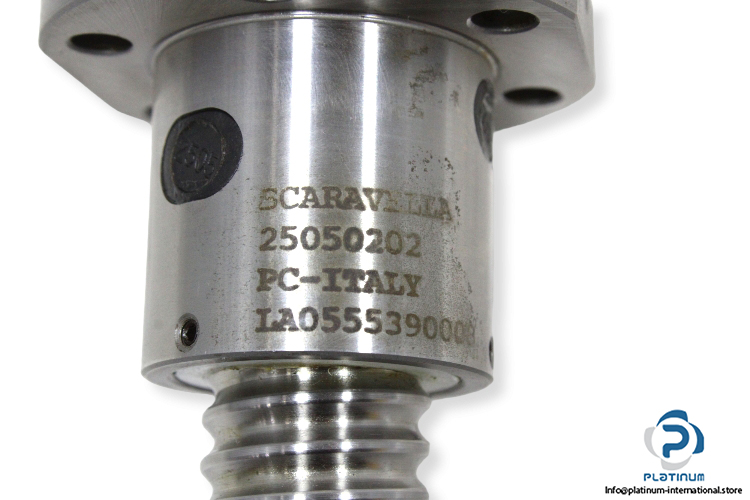

Model: 25050202

Size: 25 x 5 R

Screw shaft outer diameter d: 25 mm

Lead: 5 mm

Direction of Lead: Right-Hand Thread

Dynamic Rating Load C: 16.84 kN

Static Rating Load C_o: 28.27 kN

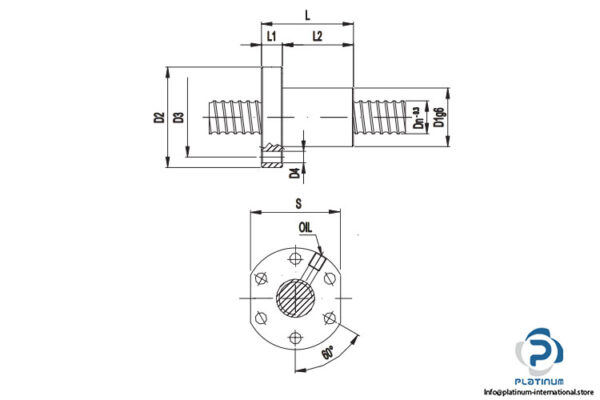

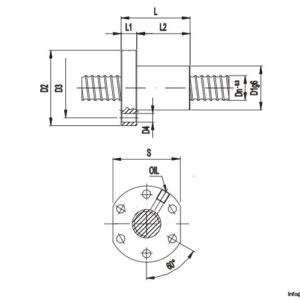

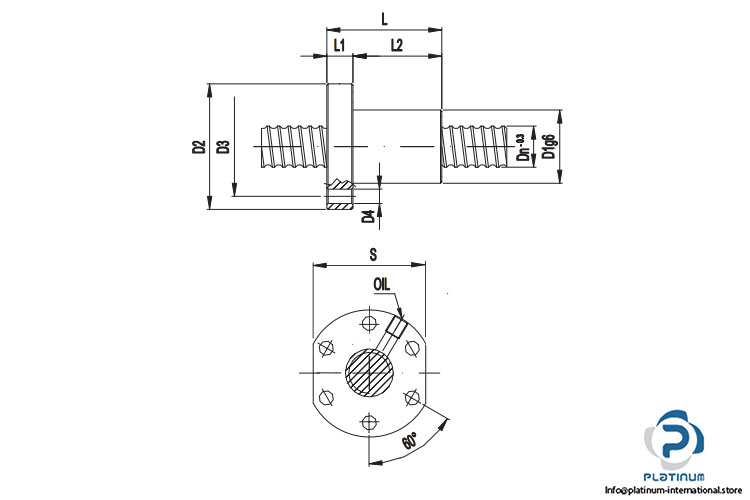

Dimensions:

Outer diameter D1g6: 38 mm

Flange diameter D2: 63 mm

Overall length L: 45 mm

L1: 10 mm

D4: 6 x 6.6 mm

S: 59 mm

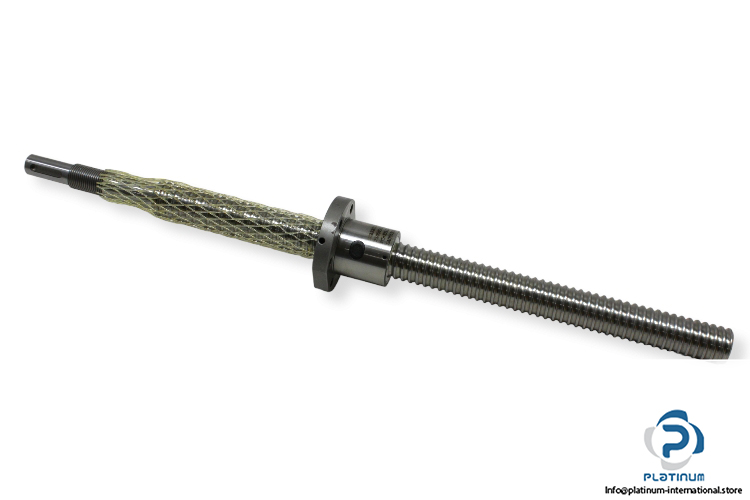

Available screw:

Total length: 480 mm

Path length: 385 mm
