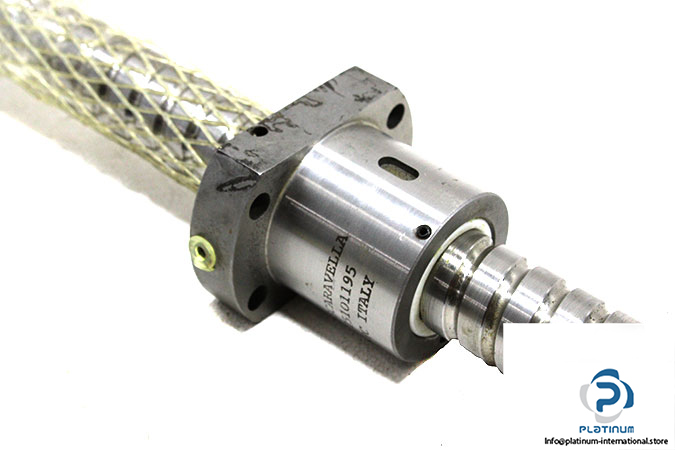

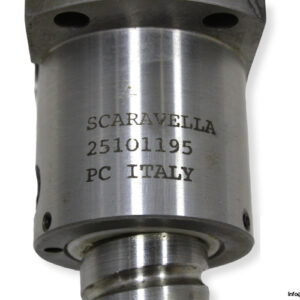

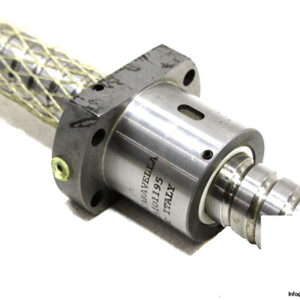

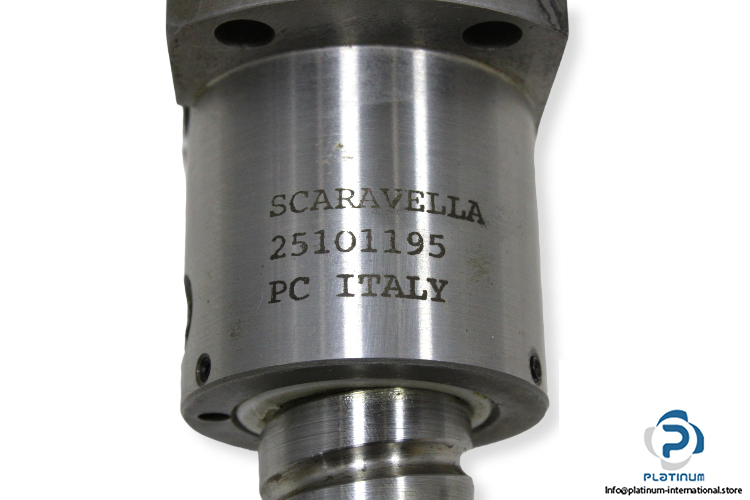

Manufacturer: SCARAVELLA

Type: Flanged Ball screw

Model: 25101195

Size: 25 x 10 R

Screw shaft outer diameter d: 25 mm

Lead: 10 mm

Direction of Lead: Right-Hand Thread

Dynamic Rating Load C: 16.78 kN

Static Rating Load C_o: 28.27 kN

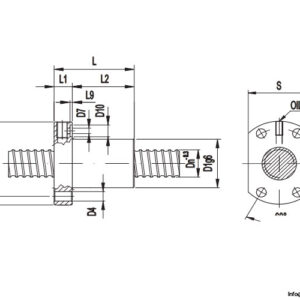

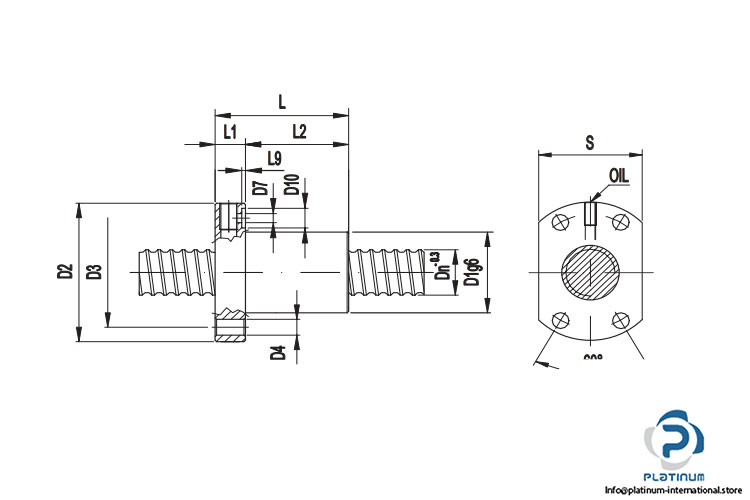

Dimensions:

Outer diameter D1g6: 43 mm

Flange diameter D2: 65 mm

Overall length L: 51.5 mm

L1: 14 mm

D4: 4 x 6.6 mm

S: 45 mm

Available screw shaft length: 330 mm
