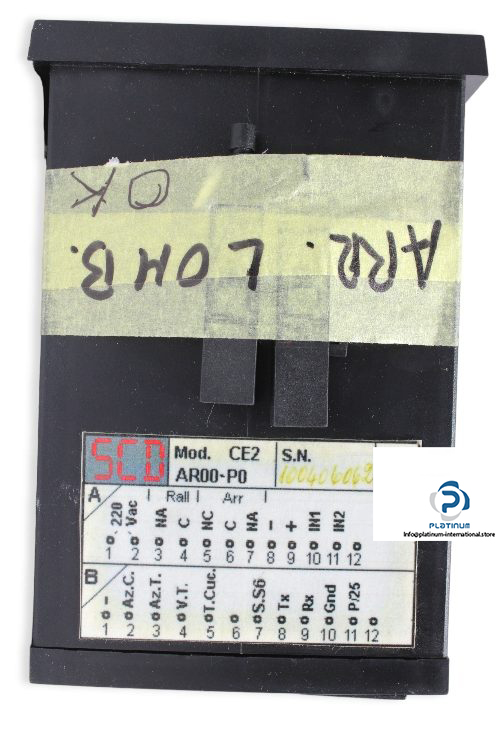

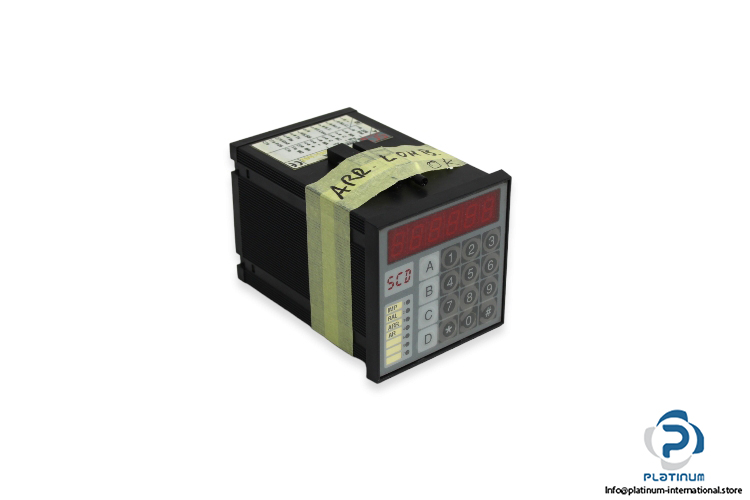

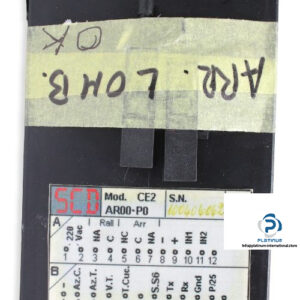

SCD CE2 AR00-P0 ONE AND/OR TWO-WAY COUNTER

The SCD CE2 AR00-P0 is a high-precision digital counter designed for versatile industrial applications. Supporting both one-way and two-way counting modes, it offers seamless integration with encoders, sensors, or contact-based systems. It is built for reliability and accuracy in demanding automation environments.

Manufacturer: SCD
Type: One And/Or Two-Way Counter
Model: CE2 AR00-P0

Technical Information

• Supply Voltage: 115 / 230 V AC
• Power Absorbed Voltage: 12 V DC, 80 mA max. (digital); 10 V DC, 120 mA (analog)
• No. of Digits: 6 digits
• Inputs for Counting: 2 NPN or PNP (encoders, sensors, contacts)
• Auxiliary Commands: 8 NPN or PNP
• Analog Resolution: Up to 16 bits
• Programming: 16-key polycarbonate keyboard
• Control Outputs: 2 + 2 relay, 2 open collector
• Connections: Removable screw terminal blocks
• Interface: RS232
• Frequency: 50 / 60 Hz
• Degree of Protection: IP54
• Operating Temperature: 0 / 40°C
• Dimensions: 96 x 96 x 138 mm
