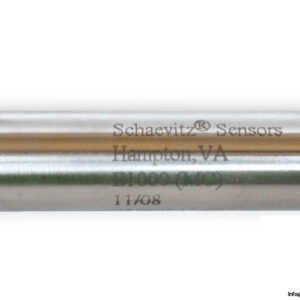

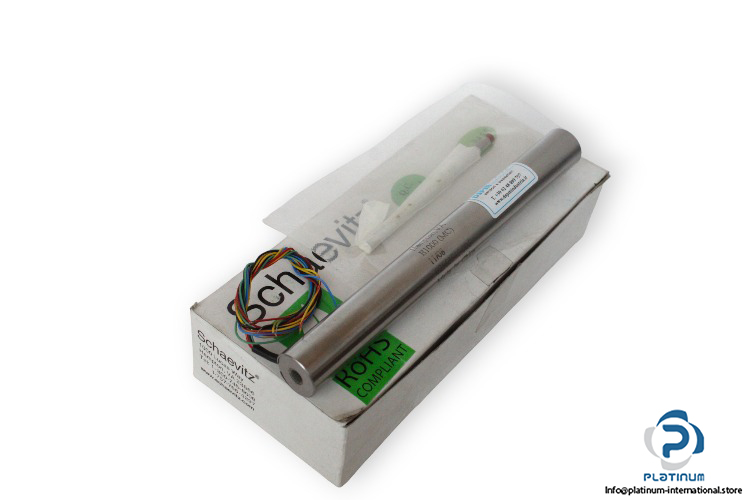

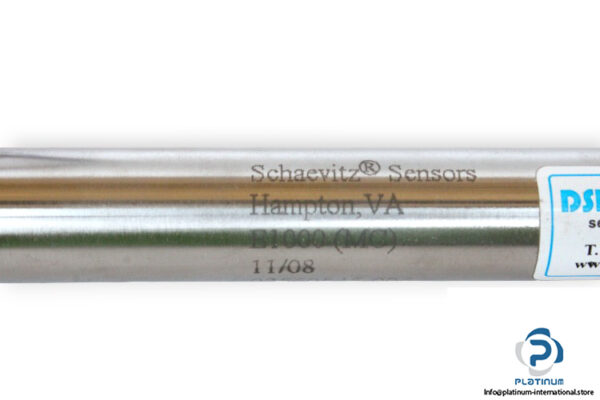

SCHAEVITZ E 1000 MC CONNECTIVITY MODULE

The Schaevitz E 1000 MC offers reliable LVDT connectivity performance designed to meet industrial demands. Engineered with a durable AISI 400 Series stainless steel housing, this device delivers consistent signal quality and precision for moderate environments. Ideal for general industrial applications and cost-sensitive setups.

Manufacturer: Schaevitz
Type: Connectivity

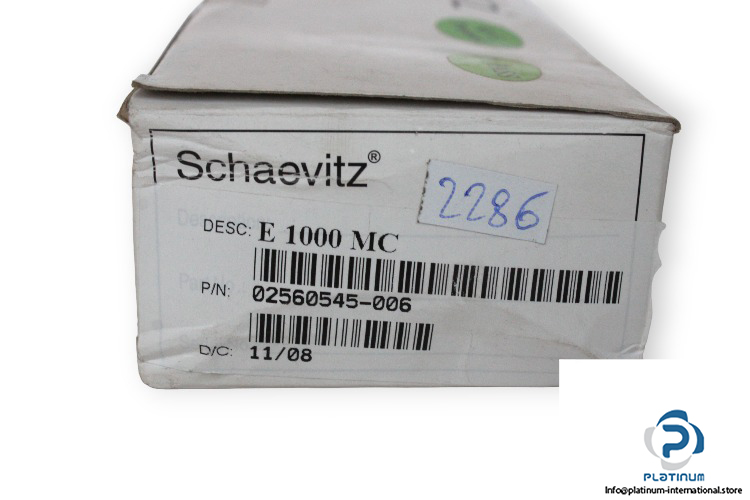

Model: E 1000 MC

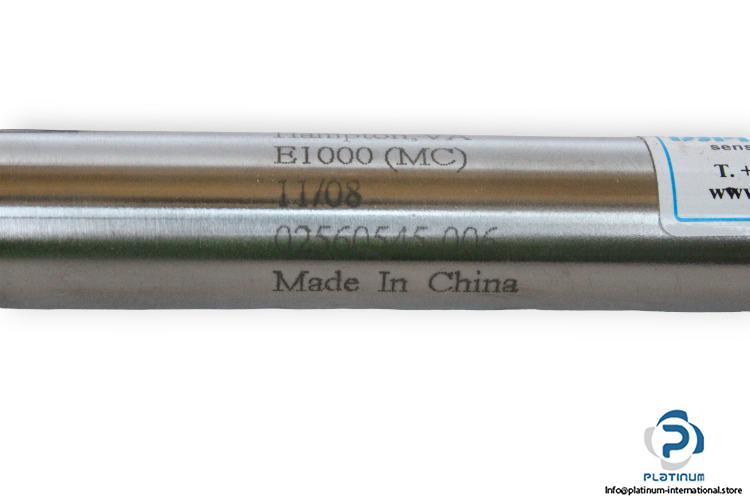

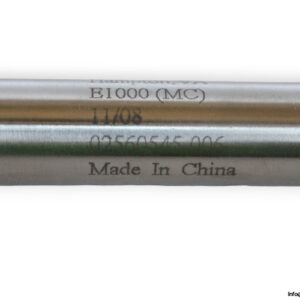

Part No.: 02560545-006
Ref No.: 11/08

Features

• Customary LVDT performance
• AISI 400 Series stainless steel case
• Imperial or metric core

Applications

• General industrial
• Moderate operating temperature environments
• Cost-sensitive applications

Technical Information

• Stroke Range: ±1 [±25.4]
• Sensitivity: 0.76 V/V/inch
• Phase Shift: +4°
• Input Impedance (PRI): 525 Ω
• Output Impedance (SEC): 690 Ω
• Input Voltage: 3 VRMS
• Test Input Frequency: 2.5 kHz
• Housing Material: AISI 400 Series stainless steel
• Electrical Connection: Six lead-wires, 28 AWG
• Operating Temperature: -55 / 95°C
• Dimensions: 179 x 96.5 x 5.59 mm
