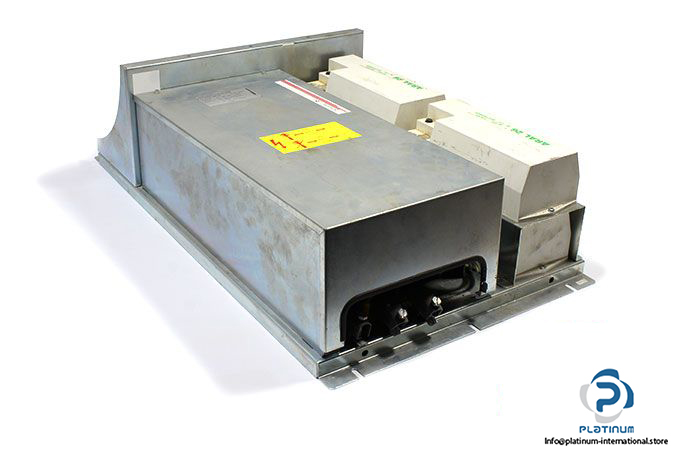

SCHINDLER SEM EVACUATION MODULE 258272
The Schindler SEM Evacuation Module (ID No. 258272) is designed to provide reliable evacuation power supply for SMART MRL 001 systems. With multiple output configurations, this module ensures safe and efficient operation in elevator applications.
Manufacturer: Schindler
Type: Evacuation Module SEM
ID No.: 258272

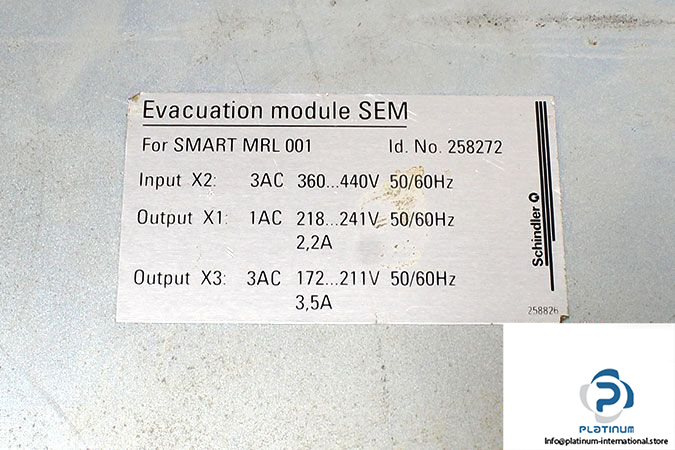

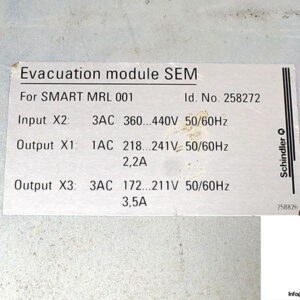

Technical Information
- Input X2: 3 Phase 360 / 440 V AC, 50/60 Hz
- Output X1: Single Phase 218 / 241 V AC, 50/60 Hz, 2.2 A
- Output X3: 3 Phase 172 / 211 V AC, 50/60 Hz, 3.5 A
- For: SMART MRL 001
- Dimensions: 700 x 395 x 197 mm
