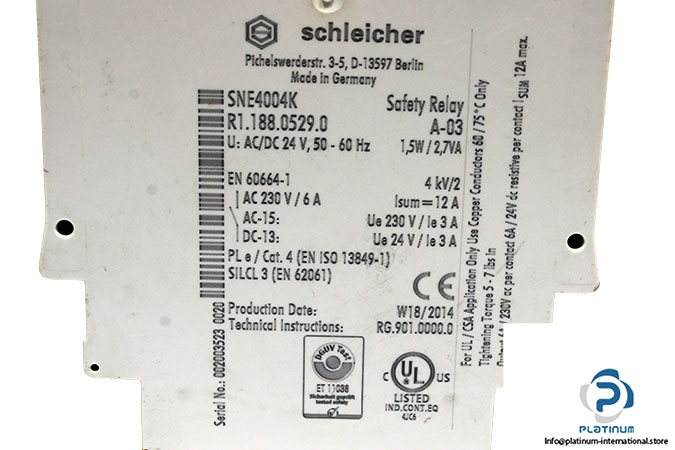

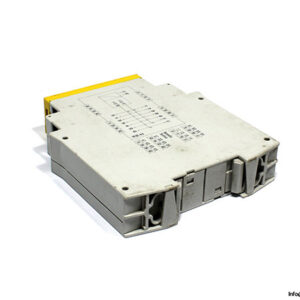

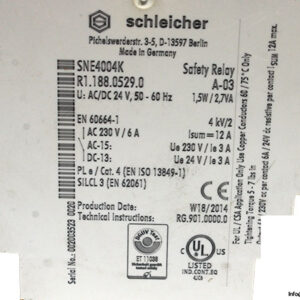

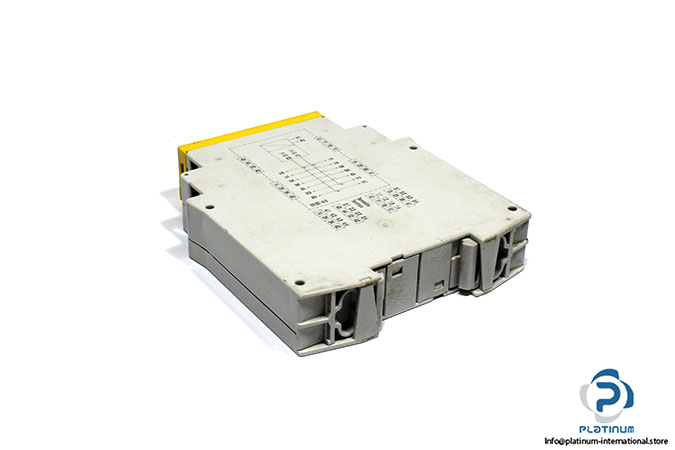

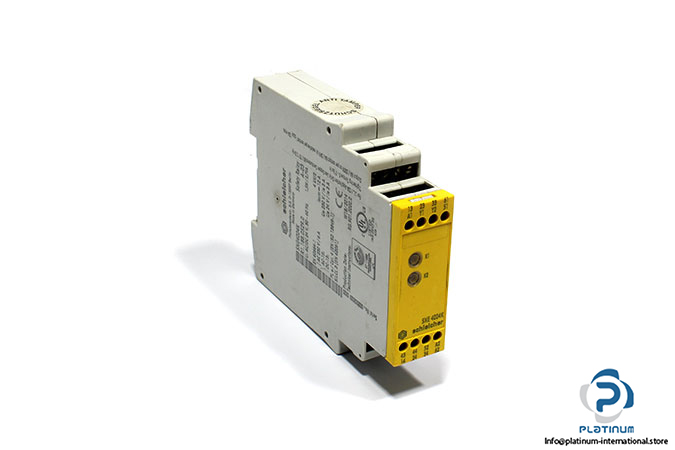

Manufacturer: Schleicher
Type: Emergency-Stop Relay
Model: SNE 4004 K
Part No.: R1.188.0529.0
Nominal voltage: 24 V AC/DC
Rated Power Consumption: 1.5 W /2.7 VA
Rated impulse Withstand Voltage Uimp: 4 Kv
Test Voltage Ueff: 2,21 Kv
Maximum Total Current for all Contacts Isum: 12 A
Frequency: 50 … 60 Hz

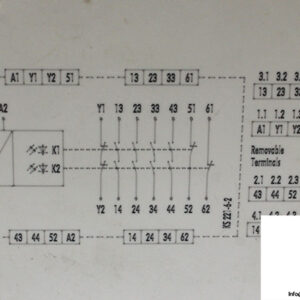

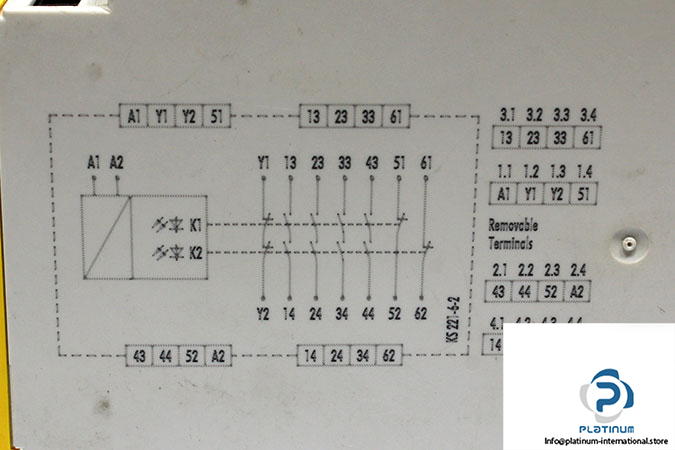

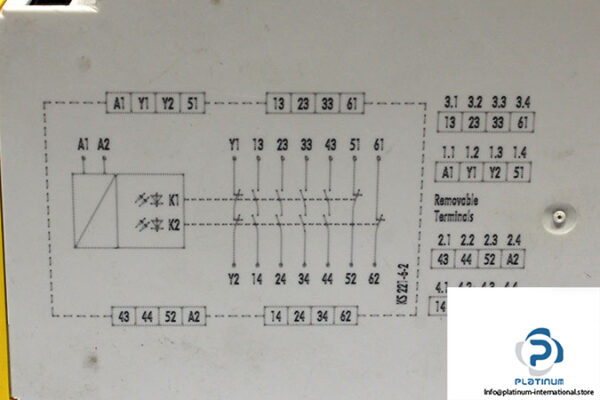

Contacts:
4 NO Safety Contacts
2 NC Control Contacts
1 NC Feedback Contact
Switching ratting: 230 V AC, 6 A
Contact rating:
AC-15: 230 V AC,3 A
DC-13: 24 V DC,3 A
Standard: EN 60664-1
Contact Material: Ag – Alloy; Gold – Plated
Response Time Ta: 20 ms
Recovery Time tR2: 40 ms
Protection Class Housing/Terminals: IP 40/IP 20
Ambient Temperature, Working Range: -25 … + 55°C
Dimensions: 95 x 115 x 23 mm
