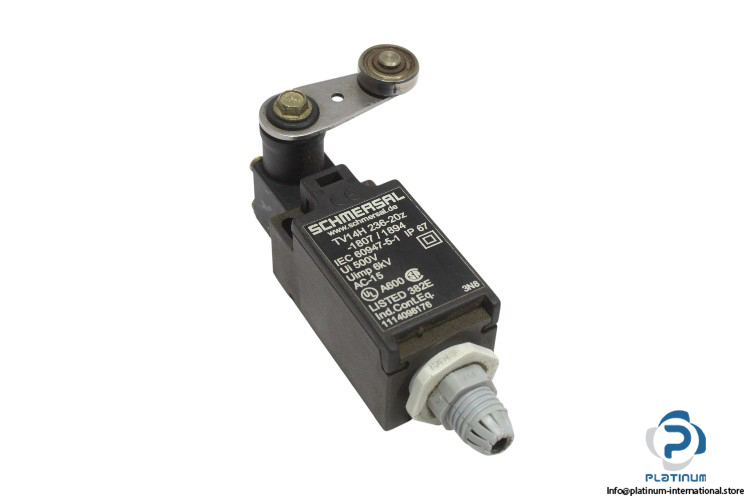

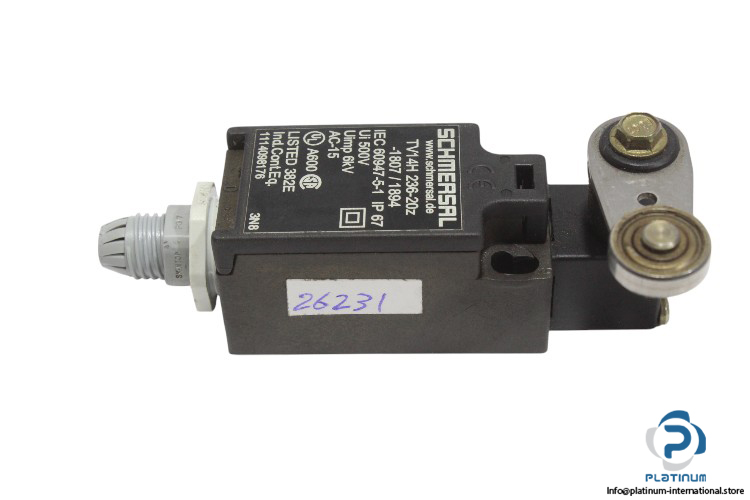

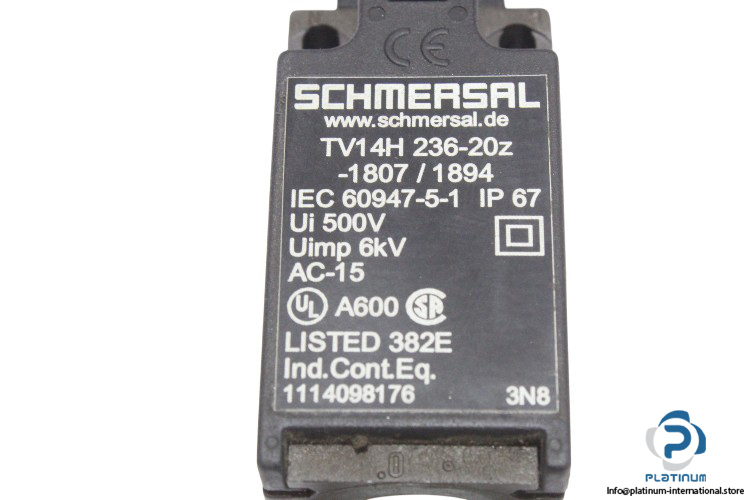

Schmersal TV14H 236-20Z Position Switch
The Schmersal TV14H 236-20Z is a durable position switch equipped with a roller lever actuator and designed for industrial automation and safety applications. Built to withstand harsh environments, it ensures reliable performance with high electrical ratings and mechanical stability.
- Manufacturer: Schmersal
- Type: Position Switch
- Model: TV14H 236-20Z
Technical Information:
- Actuating Element: Roller lever
- Rated Insulation Voltage (Ui): 500 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Thermal Test Current: 10 A
- Required Rated Short-Circuit Current: 1,000 A
- Roller Material: Plastic
- Termination: Screw terminals M20 x 1.5
- Switching Element: Normally open contact (NO)
- Switching Principle: Slow action
- Degree of Protection: IP65, IP67
- Ambient Temperature: -30 / 80 °C
