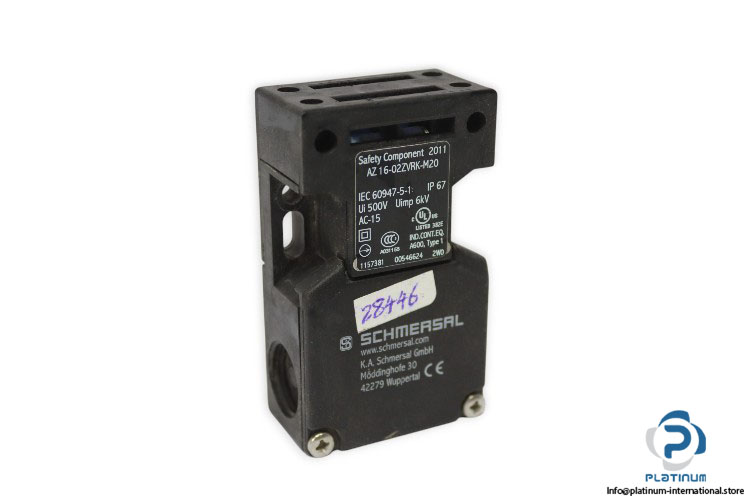

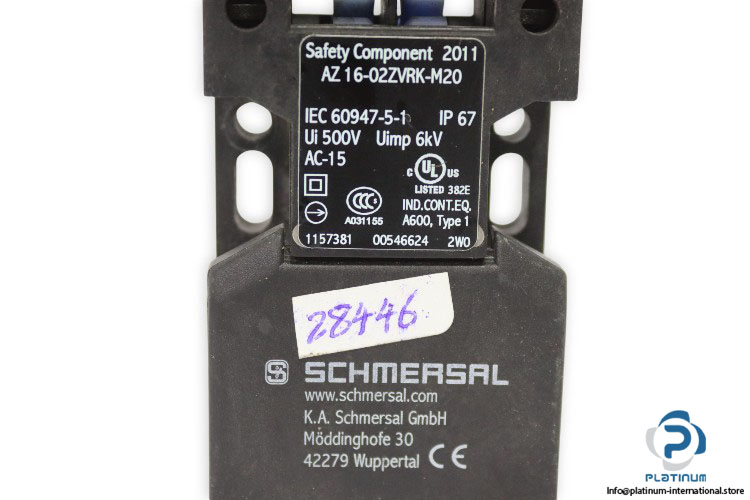

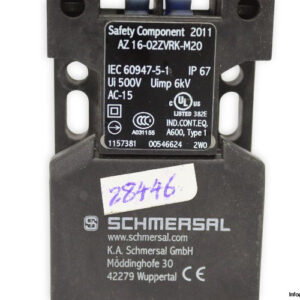

SCHMERSAL AZ16-02ZVRK-M20 SAFETY SWITCH

The Schmersal AZ16-02ZVRK-M20 is a robust safety switch designed for reliable machine protection and operator safety. Built with durable housing, high-rated insulation, and positive break contacts, it ensures dependable performance in demanding industrial environments.

Manufacturer: SCHMERSAL
Type: Safety Switch
Model: AZ16-02ZVRK-M20
Item Number: 161157381
Ref No.: 1157381 00546624

Technical Information

• Rated Insulation Voltage Ui: 500 V
• Rated Impulse Withstand Voltage Uimp: 6 kV
• Switching Element: 2 NC contact
• Switching Principle: Slow action, positive break NC contact
• Number of Actuating Directions: 3
• Number of Safety Contacts: 2
• Number of Cable Glands: 3
• Latching Force: 30 N
• Positive Break Travel: 8 mm
• Positive Break Force per NC Contact, Minimum: 10 N
• Positive Break Force, Minimum: 20 N
• Actuating Speed, Maximum: 2 m/s
• Mounting: Screws
• Type of Fixing Screws: 2x M6
• Cable Entries: 3x M20 x 1.5
• Dimensions: 52 mm x 90 mm x 30 mm
• Degree of Protection: IP67
• Ambient Temperature: -30 … +80 °C
