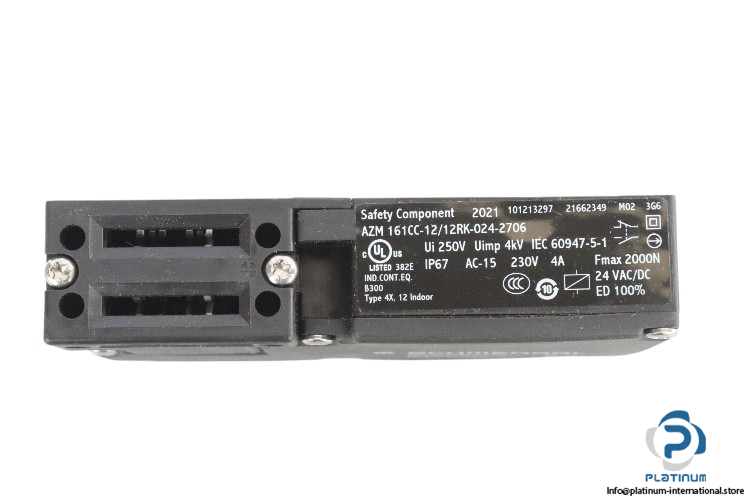

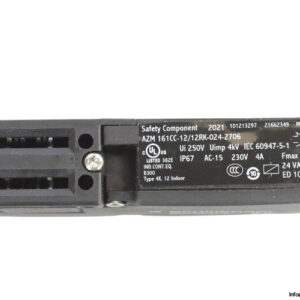

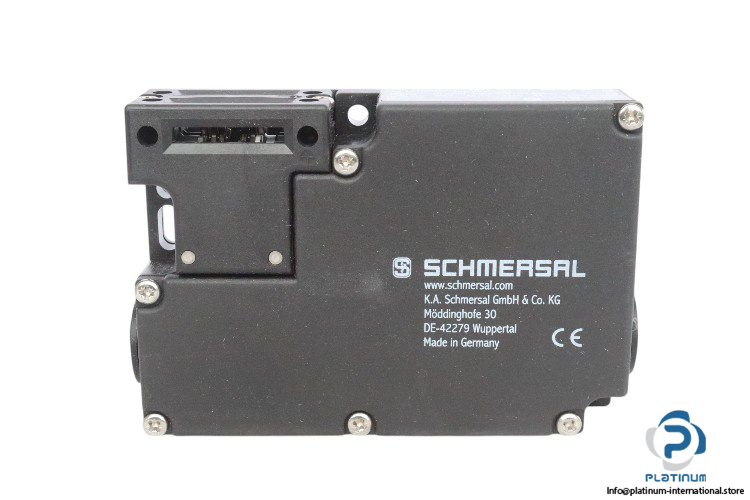

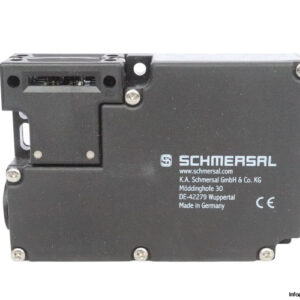

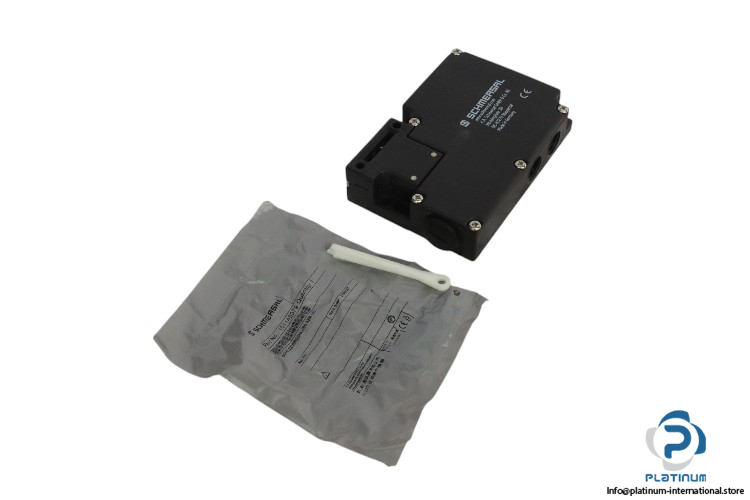

Schmersal AZM 161CC-12/12RK-024-2706 Solenoid Latching Safety Interlock Switch
The Schmersal AZM 161CC-12/12RK-024-2706 Solenoid Latching Safety Interlock Switch is a high-performance safety device designed for industrial machine guarding applications. With a thermoplastic enclosure, IP67 protection, and a large wiring compartment, this switch provides secure interlocking and ensures operator safety in demanding environments.
- Manufacturer: Schmersal
- Type: Solenoid Latching Safety Interlock Switch
- Model: AZM 161CC-12/12RK-024-2706
Features
- Large wiring compartment
- Manual release
- 4 x M16 x 1.5 cable entries
- Thermoplastic enclosure
- Double-insulated
- Interlock with protection against incorrect locking
- Long life
Technical Information
- Rated Control Voltage: 24 VAC/DC
- Rated Insulation Voltage (Ui): 250 V AC
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Thermal Test Current: 6 A
- Electrical Power Consumption (Max.): 10 W
- Switching Element: NO Contact, NC Contact
- Switching Principle: Slow Action, Positive Break NC Contact
- Required Rated Short-Circuit Current: 1,000 A
- Cable Entry: 4 x M16 x 1.5
- Termination: Cage Clamps
- Degree of Protection: IP67
- Ambient Temperature: -30 to +60°C
- Dimensions (H x W x D): 130 x 90 x 30 mm
