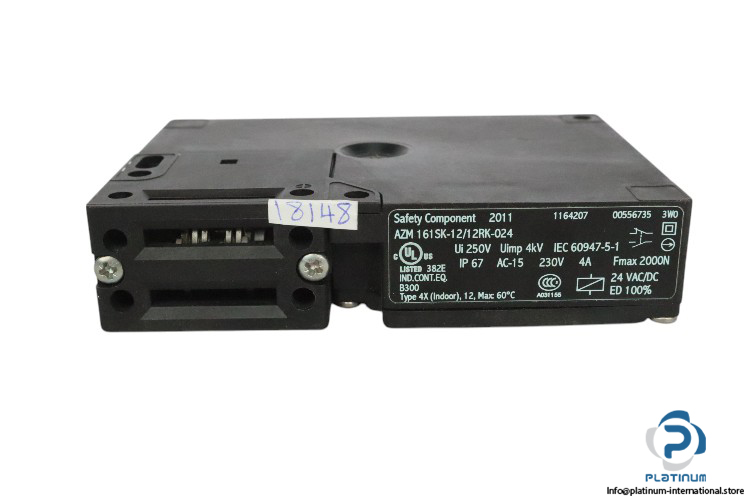

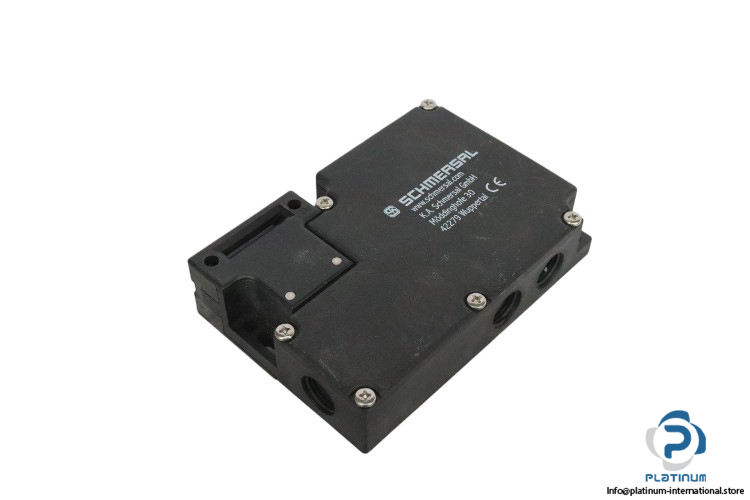

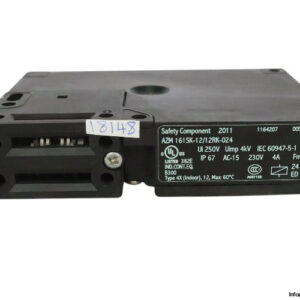

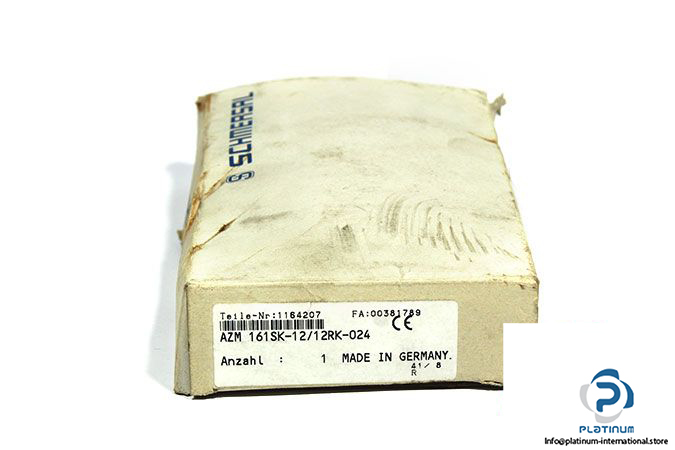

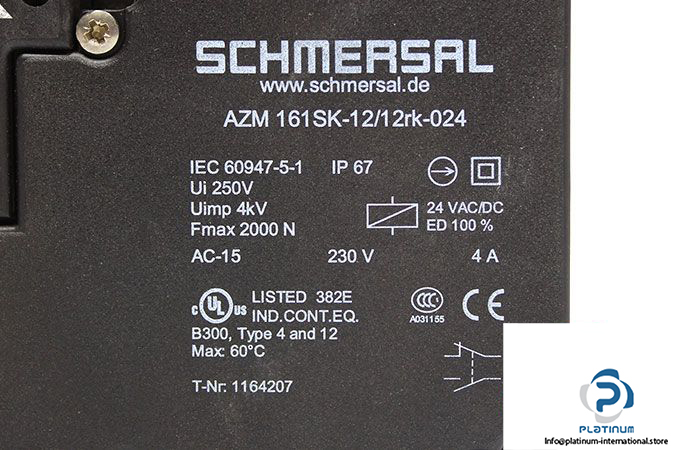

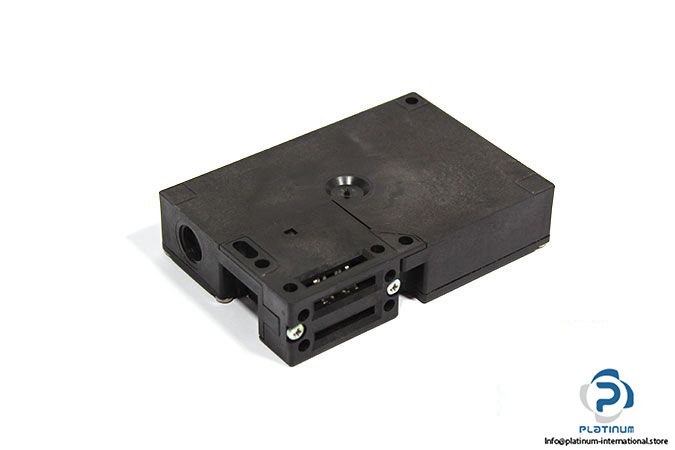

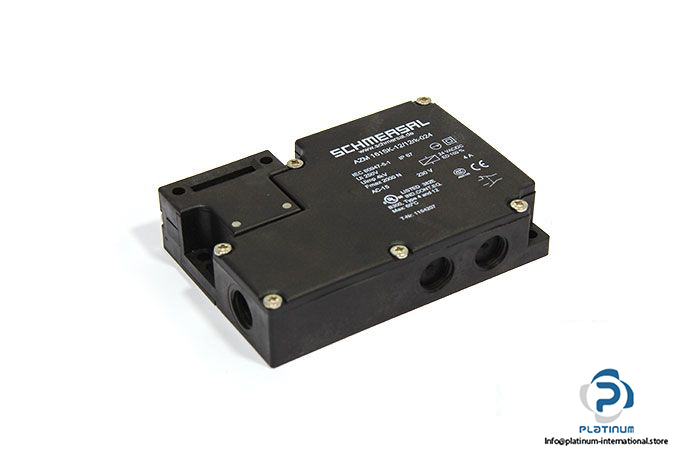

Schmersal Safety Switch AZM 161SK-12/12RK-024
The Schmersal Safety Switch AZM 161SK-12/12RK-024 is a highly reliable safety switch designed for ensuring machine safety and protecting operators in various industrial applications. This switch features a robust construction with plastic, glass-fibre reinforced thermoplastic enclosure and offers high protection levels with IP67 rating. It is designed with screw terminals for easy connection and can withstand a wide range of operating conditions. The safety switch is equipped with four safety contacts and two auxiliary contacts, providing superior performance in safety-critical systems.
- Model: AZM 161SK-12/12RK-024
- Article Number: 101164207
- Rated Voltage AC-15: 230 V AC at 4 A
- Thermal Test Current: 6 A
- Rated Control Voltage: 24 V AC/DC
- Rated Insulation Voltage (Ui): 250 V
- Rated Impulse Withstand Voltage (Uimp): 4 kV
- Number of Auxiliary Contacts: 2
- Number of Safety Contacts: 4
- Type of Connection: Screw Terminals
- Enclosure Material: Plastic, Glass-Fibre Reinforced Thermoplastic
- Degree of Protection: IP67
- Ambient Temperature: -30 / 60 °C
