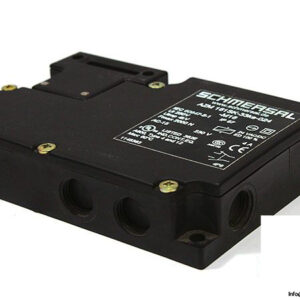

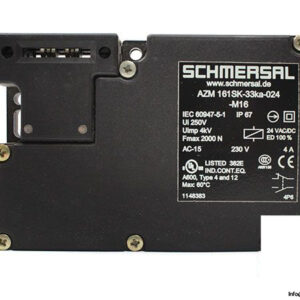

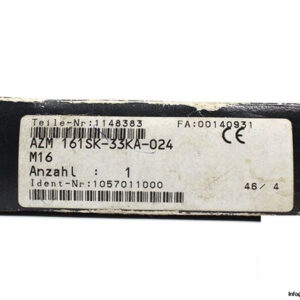

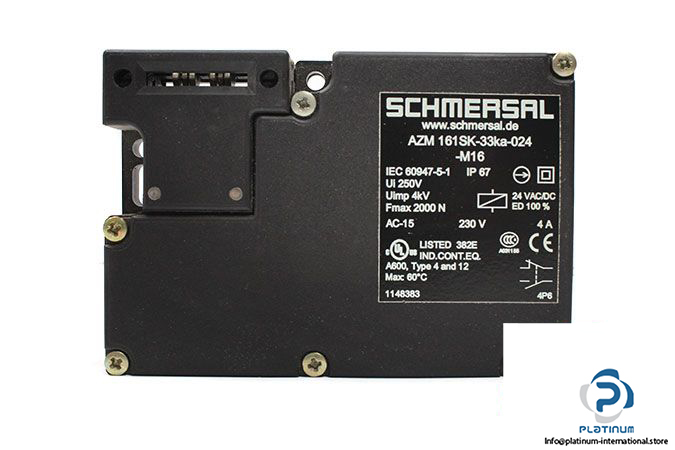

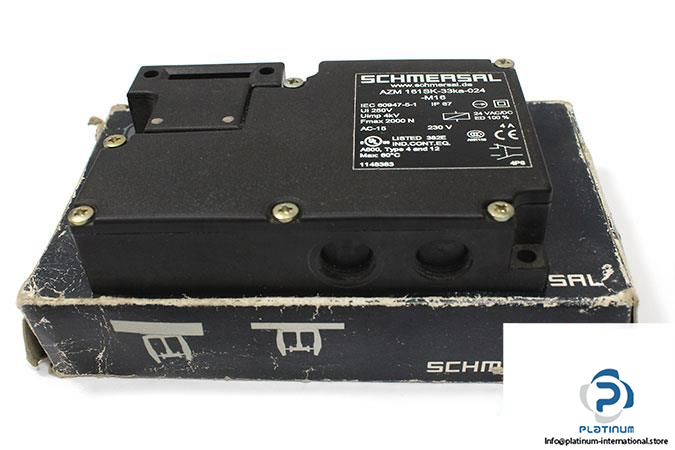

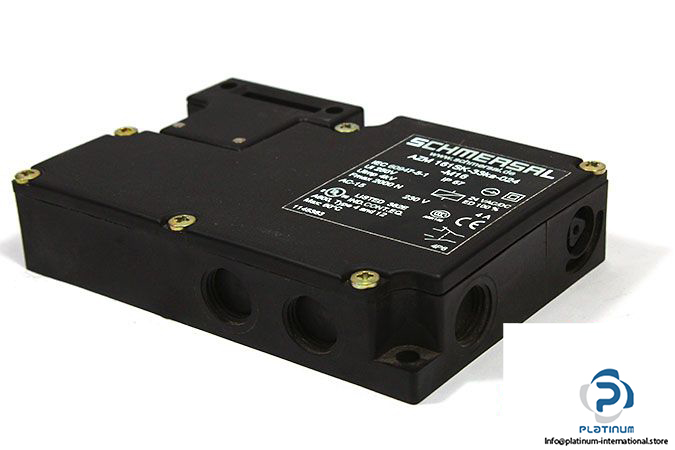

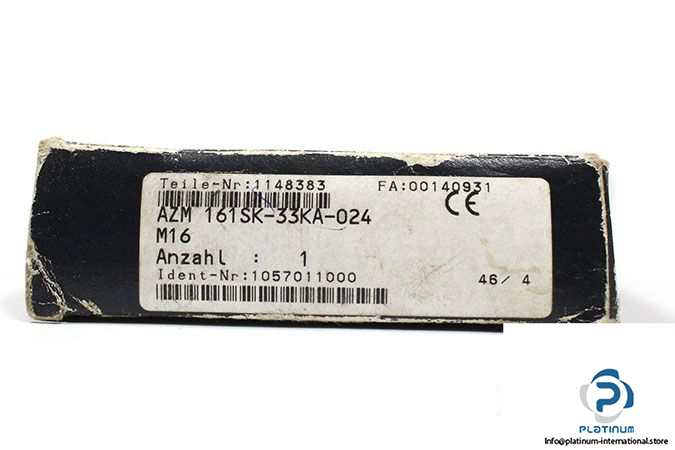

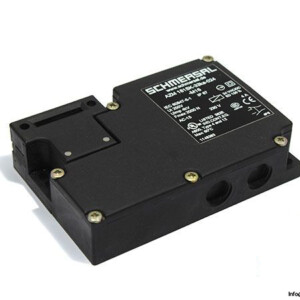

Manufacturer: SCHMERSAL

Type:  SOLENOID LATCHING SAFETY INTERLOCK SWITCH

Model: AZM 161SK-33KA-024-M16

Application:  Solenoid-locking design, controls access to hazardous areas until safe conditions exist.

Available Solenoid Supply Voltages (Vs): 24VDC, 110VDC, 230VDC, 24VAC/50Hz, 115VAC/60Hz, 230VAC/50Hz

Solenoid Locking Force: 2000 N

Rated Insulation Voltage: 250 VAC

Rated Impulse Withstand Voltage: 6 Kv

Mechanical Life: 1 Million Operations

Protection Class: IP 67

Temperature: 0 … 60°C

Contacts: 2NO & 4 NC

Weight: 0.44 kg
