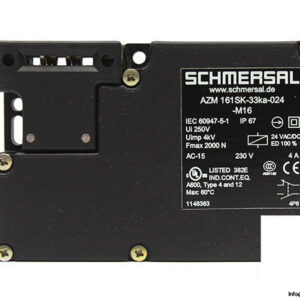

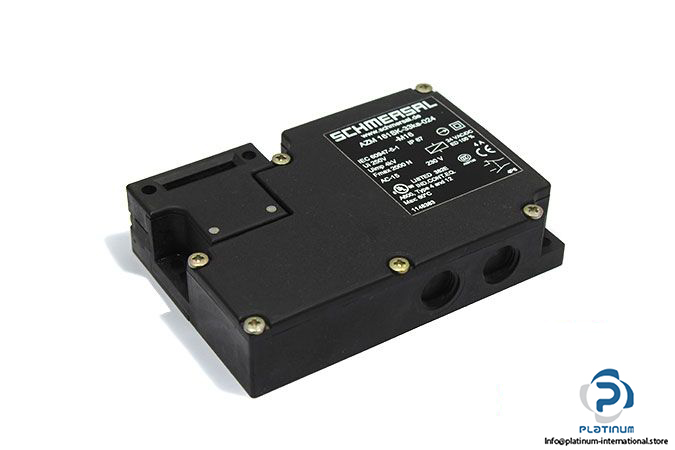

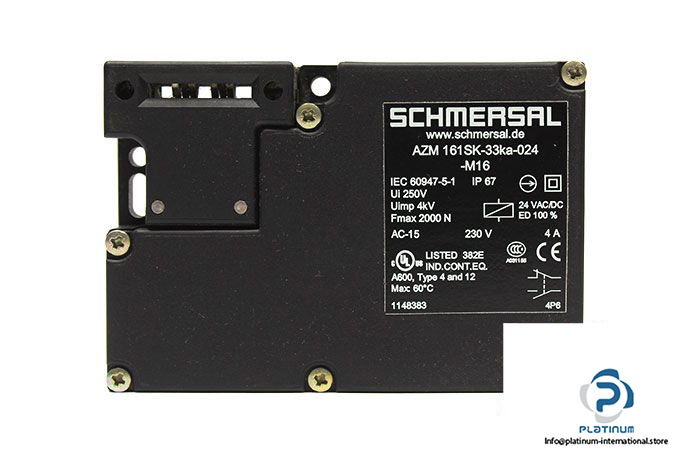

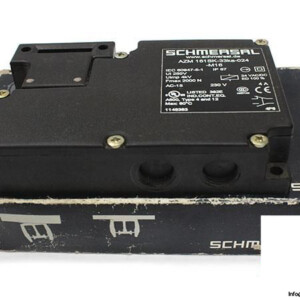

Manufacturer: Schmersal

Type:  Solenoid Latching Safety Interlock Switch

Model: AZM161SK-33KA-024-M16

Application:  Solenoid-Locking Design, Controls Access to Hazardous Areas Until Safe Conditions Exist.

Available Solenoid Supply Voltages (Vs): 24VDC, 110VDC, 230VDC, 24VAC/50Hz, 115VAC/60Hz, 230VAC/50Hz

Solenoid Locking Force: 2000 N

Rated Insulation Voltage: 250 V AC

Rated Impulse Withstand Voltage: 6 kV

Mechanical Life: 1 Million Operations

Protection Class: IP67

Temperature: 0 … 60°C

Contacts: 2NO & 4 NC

Weight: 0.44 kg
