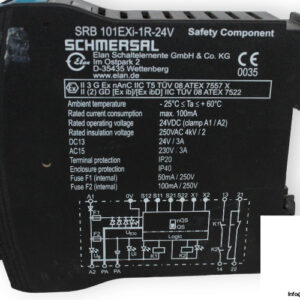

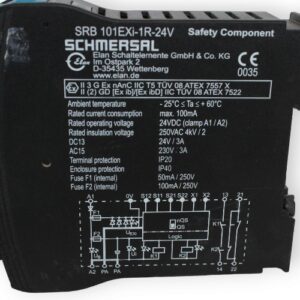

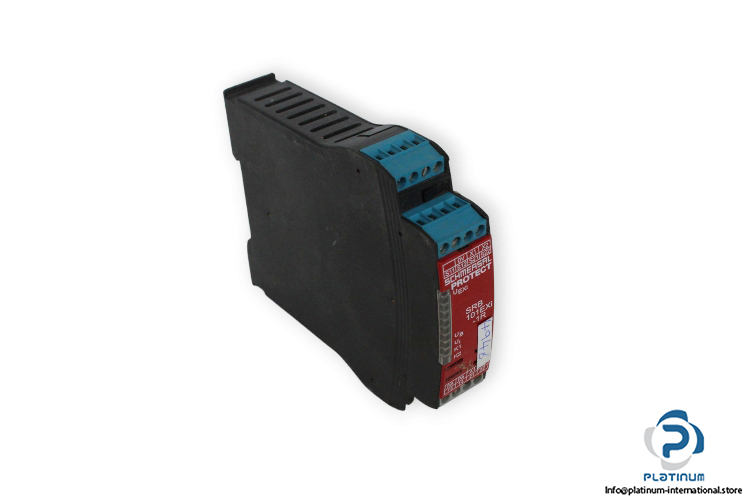

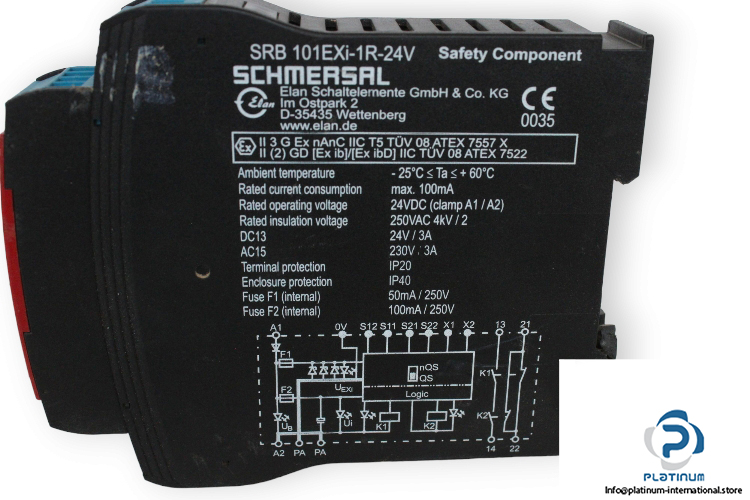

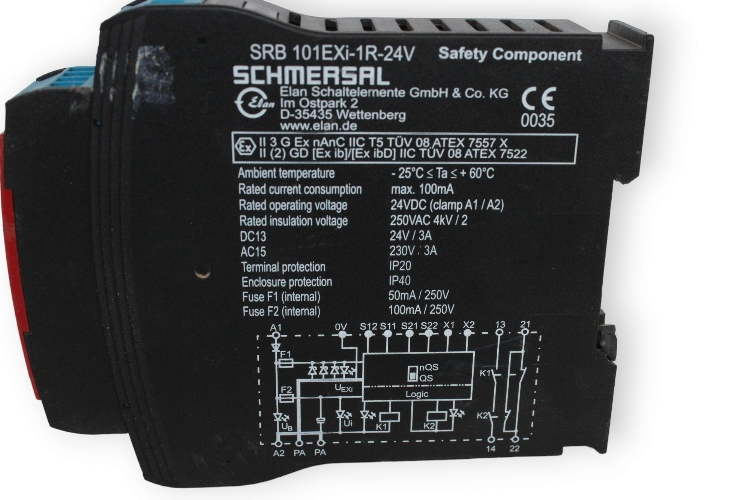

Manufacture: Schmersal Protect
Type: Safety-Monitoring Relay
Model: SRB101EXI1R24V

Rated operating voltage Ue: 24 V DC
Power consumption: max. 3.0 W
Rated current consumption: 100 mA
Rated insulation voltage: 250 V AC,4 kV/2
Contacts: 2 NC
No. of safety contacts: 1
No. of auxiliary contacts: 1
Switching capacity:
AC-15: 230 V AC / 3 A
DC-13: 24 V DC/ 3 A
Fuse rating:
F1: 50 mA,250 V
F2: 100 mA,250 V
Connection type: Screw connection
Mounting: snaps onto standard DIN rail to EN 60715
Material of the housings: Plastic, glass-fiber reinforced thermoplastic, ventilated
Tightening torque for the terminals: 0.6 Nm
Ambient temperature: -25 … +60 °C
Protection class:
Enclosure: IP40
Terminals: IP20
Dimensions (HxWxD): 100 x 22.5 x 121 mm
