Manufacturer: Schmersal

Type: Position Switch

Model: T2K 015-11Y

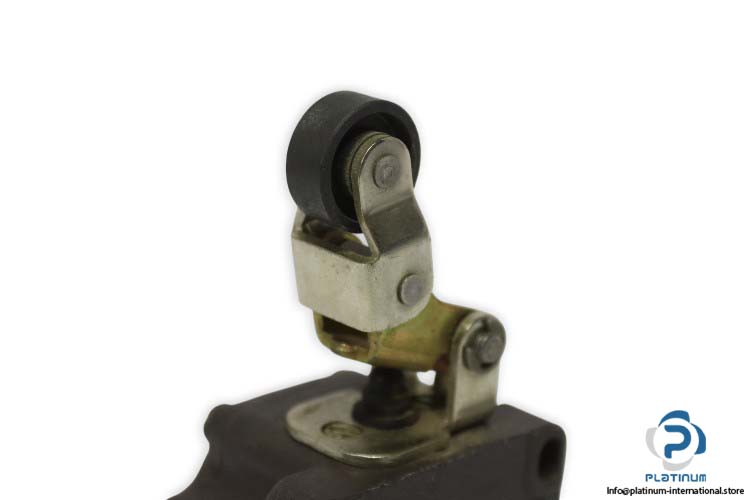

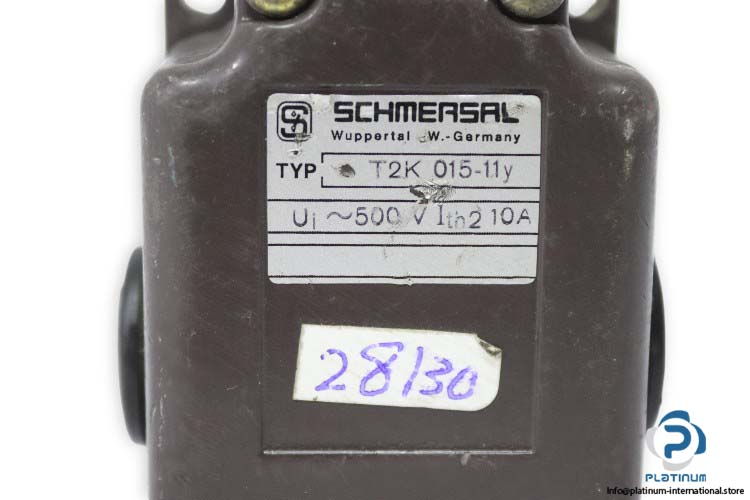

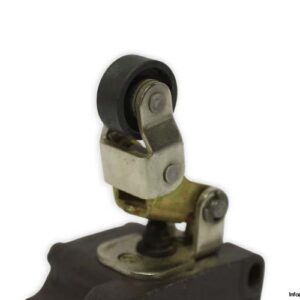

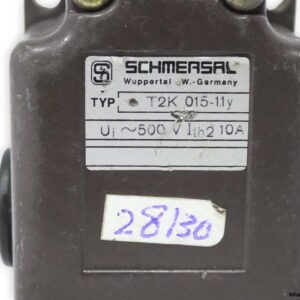

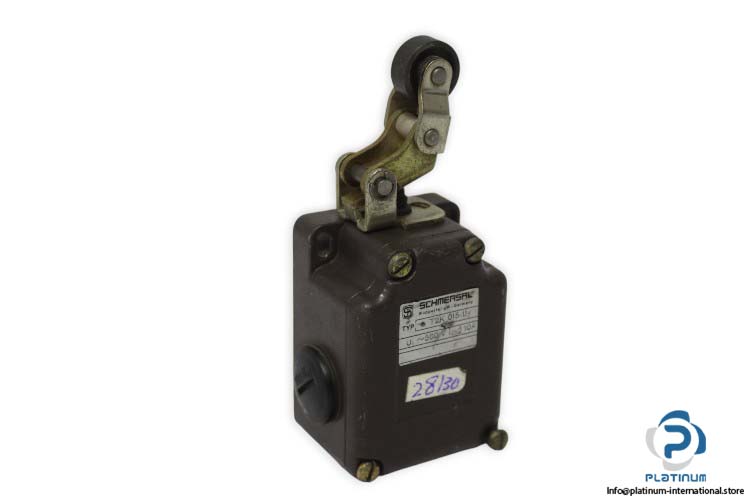

The Schmersal T2K 015-11Y Position Switch is designed for precise position detection in industrial automation and safety applications. Built with a robust housing and plastic roller actuator, it ensures reliable mechanical switching even under harsh conditions. The unit features both NO and NC contacts for flexible circuit integration, with screw terminal connection and IP65 protection rating for durability and ease of installation.

Technical Specifications

• Rated Voltage AC-15: 400V AC, 4 A
• Rated Insulation Voltage (Ui): 500 V
• Terminal Connector: Screw connection
• Roller Material: Plastic
• Switching Element: NO contact, NC contact
• Thermal Test Current: 10 A
• Protection Class: IP65
• Ambient Temperature: -30 / 90 °C
