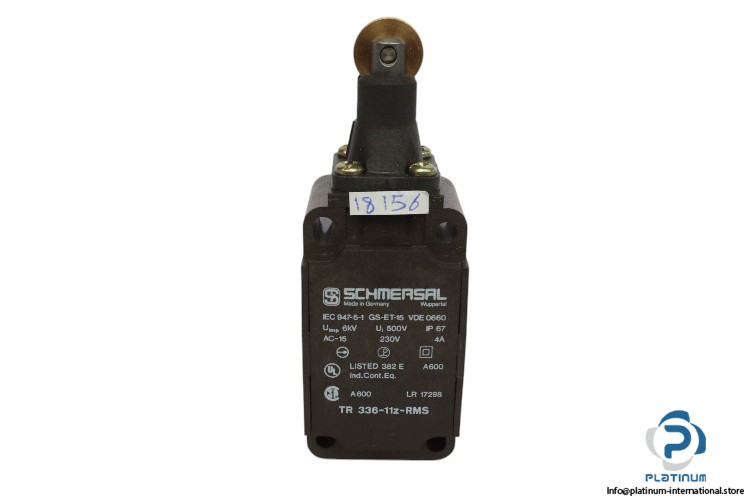

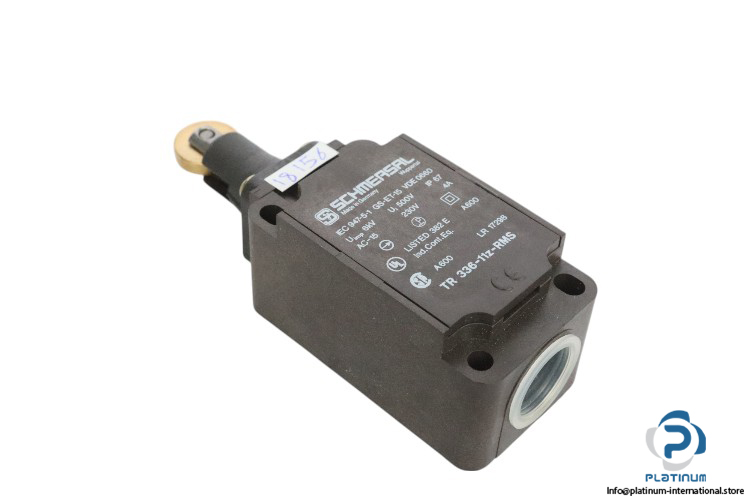

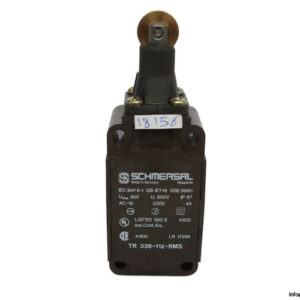

Schmersal TR 336-11Z-RMS Position Switch
The Schmersal TR 336-11Z-RMS Position Switch is a high-quality safety switch designed for industrial applications requiring precise position detection. With a durable thermoplastic housing, IP67 protection, and robust electrical specifications, this switch ensures reliable performance in demanding environments.
- Manufacturer: Schmersal
- Type: Position Switch
- Model: TR 336-11Z-RMS
Technical Information
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Rated Insulation Voltage (Ui): 500 V
- Thermal Test Current (Ith): 10 A
- Rated Voltage AC-15: 230 V / 4 A
- Rated Voltage DC-13: 24 V / 4 A
- Required Rated Short-Circuit Current: 1000 A
- Max. Fuse Rating: 6 A gG D-fuse
- Design of Electrical Connection: Screw Connection
- Actuating Force Min.: 17 N
- Switchover Time: In accordance with actuating speed
- Design of Control Element: Normally Open Contact (NO), Opener (NC)
- Housing Material: Plastic, Glass-Fibre Reinforced Thermoplastic, Self-Extinguishing
- Protection Class: IP67
- Ambient Temperature: -30 to 80°C
- Dimensions (H x W x D): 116.5 x 40.5 x 38 mm
