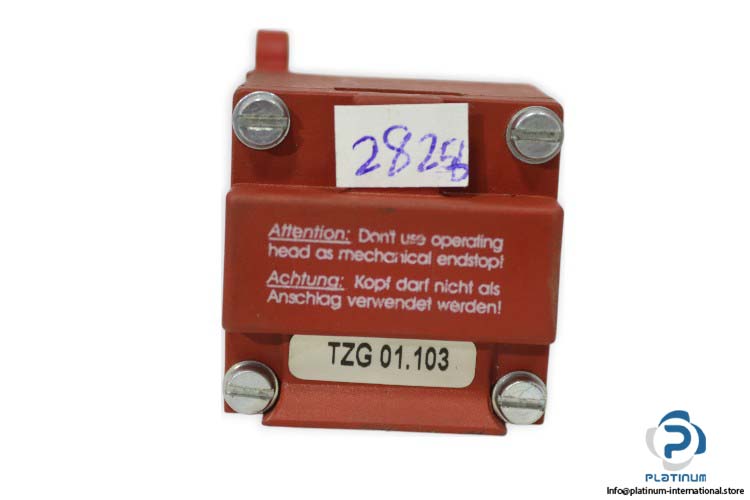

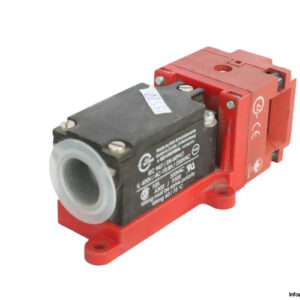

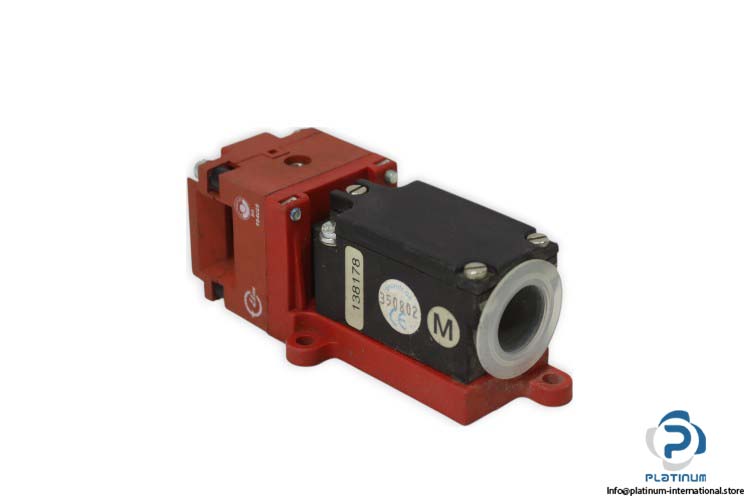

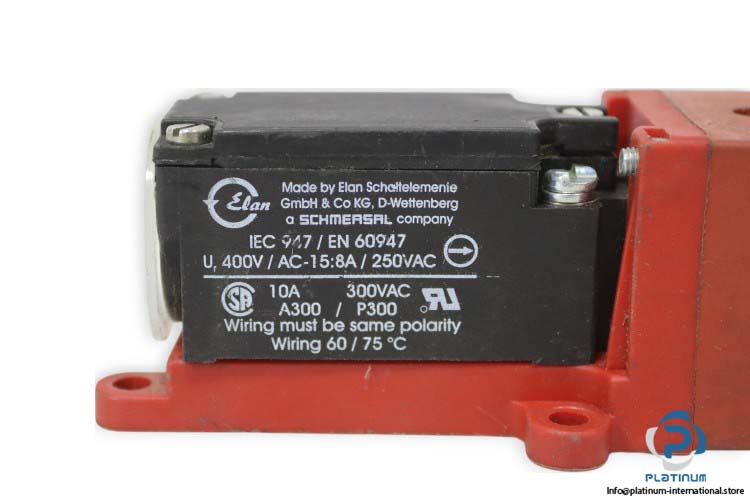

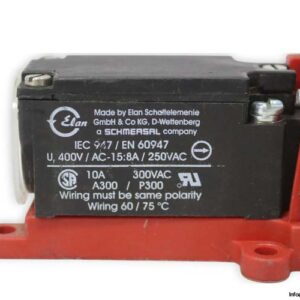

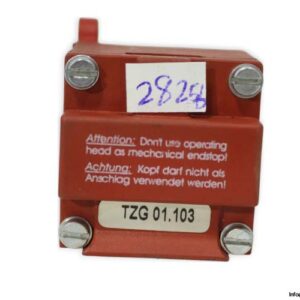

SCHMERSAL TZG 01.103 LIMIT SWITCH
The Schmersal TZG 01.103 is a robust and precise limit switch designed for reliable position detection in industrial automation systems. Engineered with a durable glass-fibre reinforced thermoplastic housing and IP67 protection, it is suitable for harsh environments. Its slow-action switching mechanism ensures accurate and dependable performance in safety-critical applications.
Manufacturer: Schmersal
Type: Limit Switch
Model: TZG 01.103
Part No.: 138178
Technical Information
- Output Configuration: 1NC/1NO
- Rated Insulation Voltage (Ui): 400 V
- Rated Impulse Withstand Voltage (Uimp): 2.5 kV
- Switching Element: NC contact, NO contact
- Switching Principle: Slow action
- Termination: Screw terminals
- Thermal Test Current: 10 A
- Utilization Category AC-18: 250 V AC
- Utilization Category AC-18: 8 A
- Material of the Contacts: Silver
- Housing Material: Glass-fibre reinforced thermoplastic
- Protection Class: IP67
- Ambient Temperature: -25 to 70 °C
- Dimensions: 39.5 x 50 x 106.5 mm
