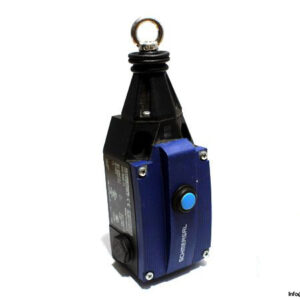

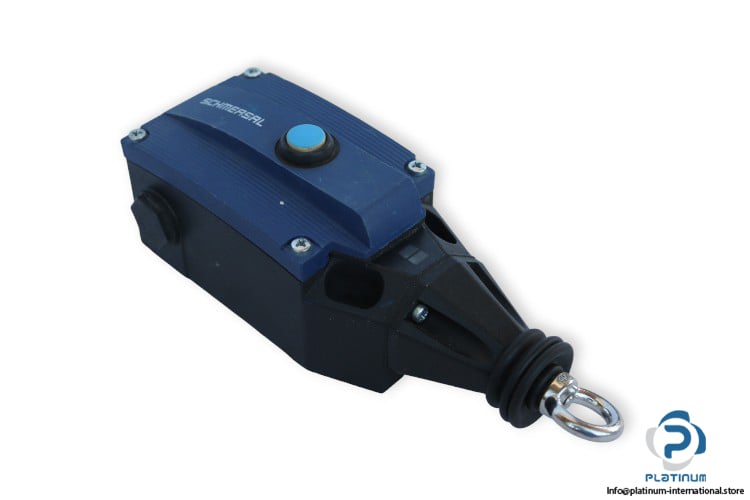

Schmersal ZQ90011 “ Pull-Wire Emergency Stop Switch

The Schmersal ZQ90011 pull-wire emergency stop switch provides a reliable safety mechanism for industrial systems. Designed with high protection class and durable materials, this switch ensures secure operation even in demanding environments.

• Manufacturer: Schmersal
• Type: Pull-Wire Emergency Stop Switch
• Model: ZQ90011

Technical Information:

• Output Configuration: 1 Normally open + 1 Normally closed
• Contact Operation: Snap Switch
• Maximum Wire Length: 75 m
• Switching Voltage Max.: 230 V AC
• Insulation Voltage Ui: 500 V
• Thermal Test Current: 6 A
• Rated Impulse Withstand Voltage Uimp: 6 kV
• Connection: M20 X 1.5 Cable Entry
• Protection Class: IP67
• Ambient Operating Temperature: -25 / 70°C
• Enclosure Material: Zinc Die Cast
• Standard: IEC 60947-5-1, IEC 60947-5-5
• Dimensions: 70 x 72 x 220 mm
