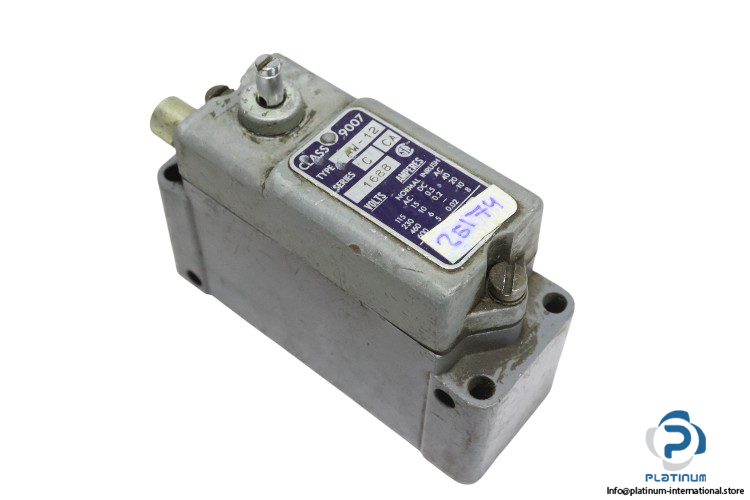

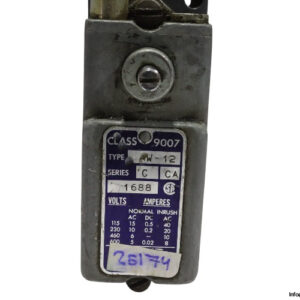

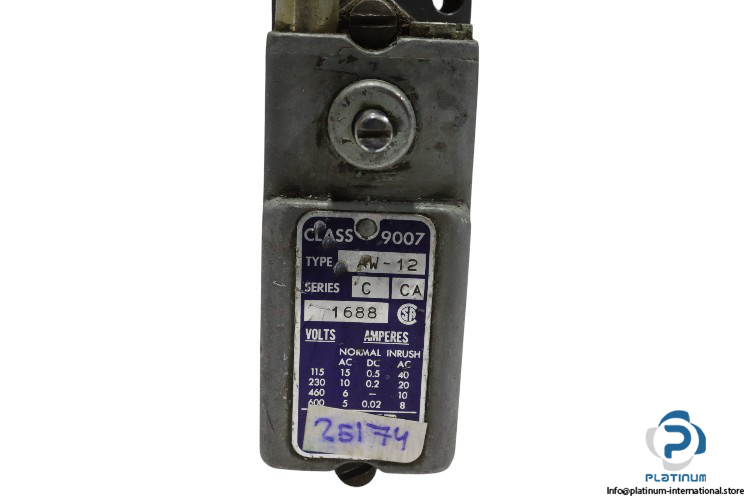

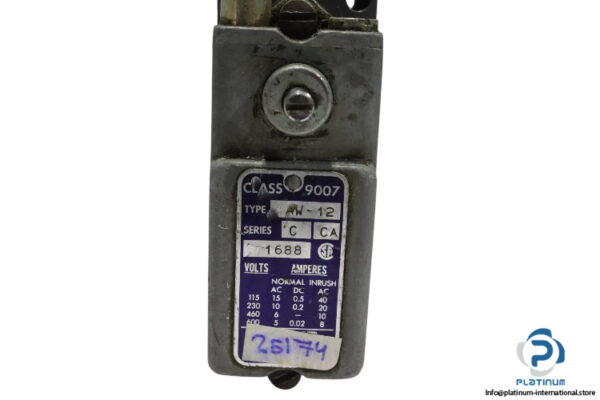

Schneider 9007-AW-12 Limit Switch

The Schneider 9007-AW-12 Limit Switch is a rugged industrial switch with snap-action contacts and a cast zinc rotary head design. Rated for both AC and DC applications, it provides reliable operation with up to 15 A thermal current and features IP65 protection for harsh environments. Ideal for surface mounting and mechanical actuation.

Manufacturer: Schneider

Type: Limit Switch

Model: 9007-AW-12

Technical Information:

• Rated Operational Current (Ie):
  • 15 A at 120 V AC
  • 10 A at 240 V AC
  • 6 A at 480 V AC
  • 5 A at 600 V AC
  • 0.5 A at 125 V DC
  • 0.2 A at 250 V DC
  • 0.02 A at 600 V DC
• Thermal Current (Ithe): 15 A
• Mounting Mode: Surface mounting, standard box
• Operator Profile: Rotary head
• Body Material: Cast zinc
• Type of Operator: Cast zinc spring return, no operating lever
• Contact Configuration: NC-NO
• Contact Operation: Snap action
• Degree of Protection: IP65
