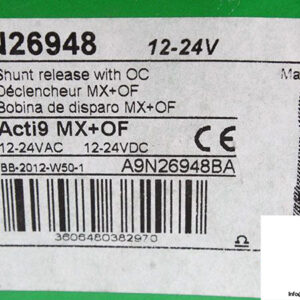

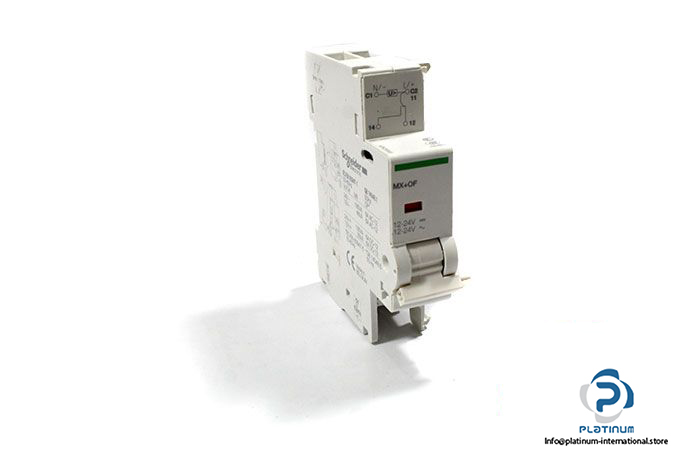

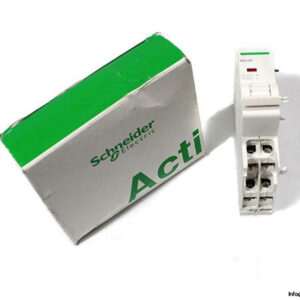

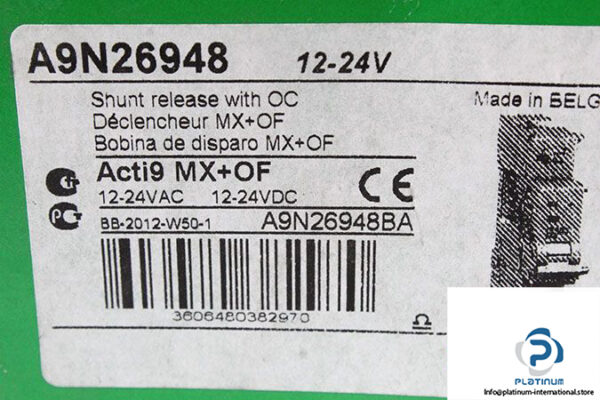

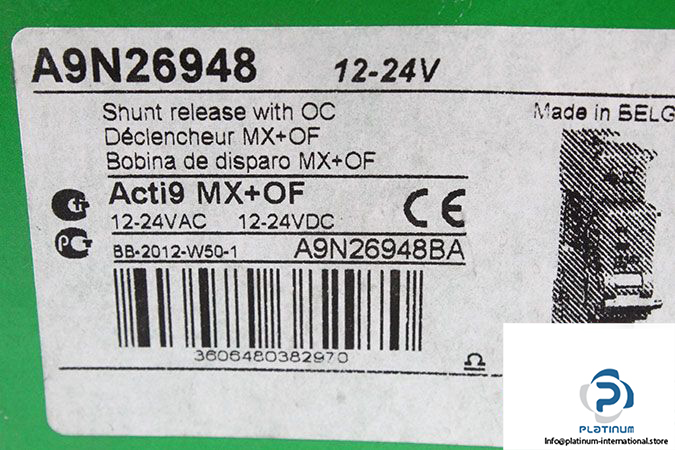

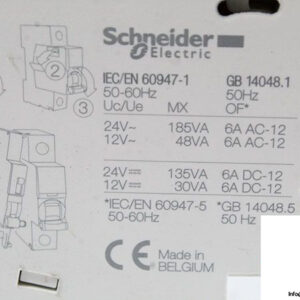

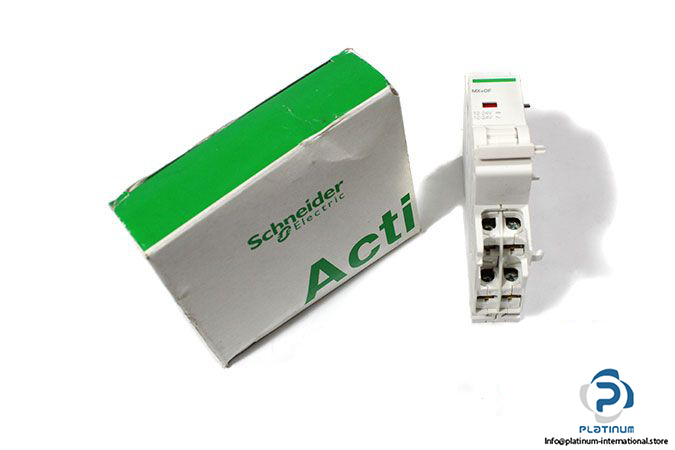

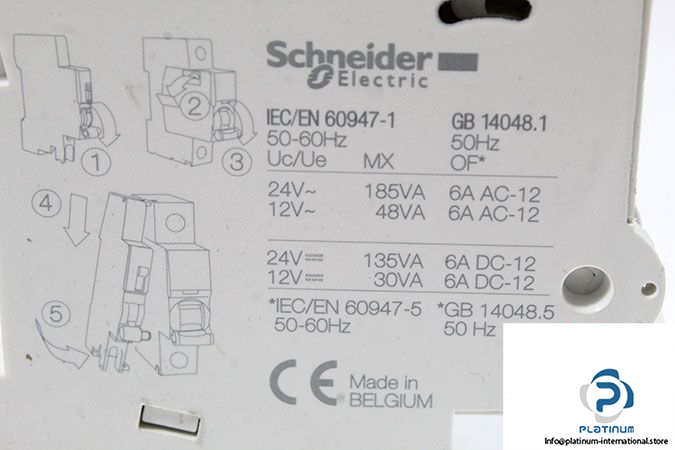

Manufacturer: SCHNEIDER ELECTRIC

Type: Shunt Trip Release With OC Contact

Model: A9N26948

Control Circuit Voltage:

12…24 V AC, 50/60 Hz

12…24 V DC

Device Short Name: MX + OF

signal contacts composition: 1 C/O

local signalling: Action indicator

Mounting Mode: Fixed

Connections – Terminals: Clamp terminal – 1 cable(s) 2.5 mm² – flexible

Wire Stripping Length: 9 mm

Tightening torque: 1 N.m

Rated Insulation Voltage:

Dimensions ( height x width x depth ): 82.5 x 18 x 73.5 mm

Frequency: 50/60 Hz

Operating Temperature: -25…50 °C

Weight: 0.08 kg
